1. Iris gasket ..............................................................................6600-0699-500
2. Iris service kit .......................................................................6600-0037-850
3. (This item is no longer available.)
4. Right front (SE) wall hinge ..............................................6600-1175-500
5. Wall hinge snap .................................................................6600-1436-500
6. Left front (SW) wall hinge ...............................................6600-1304-500
7. Hinge mask label ...............................................................6600-2320-100
8. Wall hinge snap post .......................................................6600-1429-500
9. Corner grommet ................................................................6600-1248-500
10. Front left/rear right (SW/NE) receptacle .................6600-1466-500
11. Front right/rear left (SE/NW) receptacle .................6600-1467-500
12. Ventilator slot grommet .................................................6600-1231-500
13. Rear (north) wall with grommet slot .........................6600-1109-500
14. Screw, M4 x 30 Button Head ........................................6600-0706-414
15. Lock washer .........................................................................6600-0713-403
16. Flat washer ...........................................................................6600-0712-403
17. Rear (north) wall mount cover .....................................6600-1305-500
18. Bumper ...................................................................................6600-1485-500
19. Rear (north) wall mount rod ..........................................6600-1356-500
20. Rear (north) wall mount .................................................6600-1428-500
21. Screw,M4.2 x 19 Pan Head ............................................6600-0709-404
22. Screw, M5 x 12 Button Head ........................................6600-0706-418
23. Lock washer .........................................................................6600-0713-404
24. Flat washer ...........................................................................6600-0712-404
25. Front (south) wall solid ....................................................6600-0247-852
26. Front (south) wall with ventilator cut out ...............6600-0247-854
27. Front (south) wall with porthole cut out ..................6600-0247-851
28. Front (south) wall with iris cut out ..............................6600-0247-853
Parts not shown:
Oscillator (High Freq. Vent) port cover .....................6600-0838-800
9
10
11
12
13
14
15
16
17
18
19
20
21
22

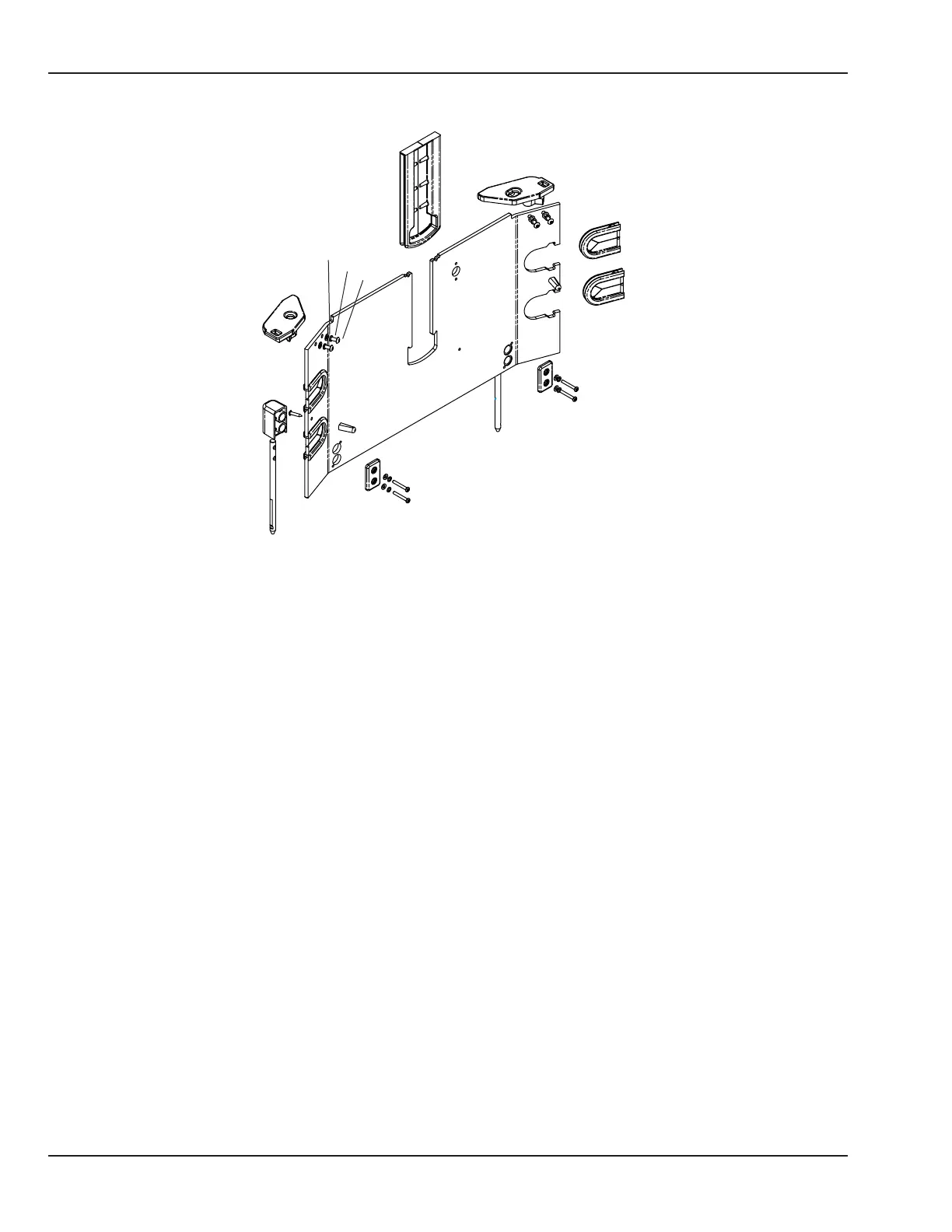

REAR WALL
23
24
162 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
