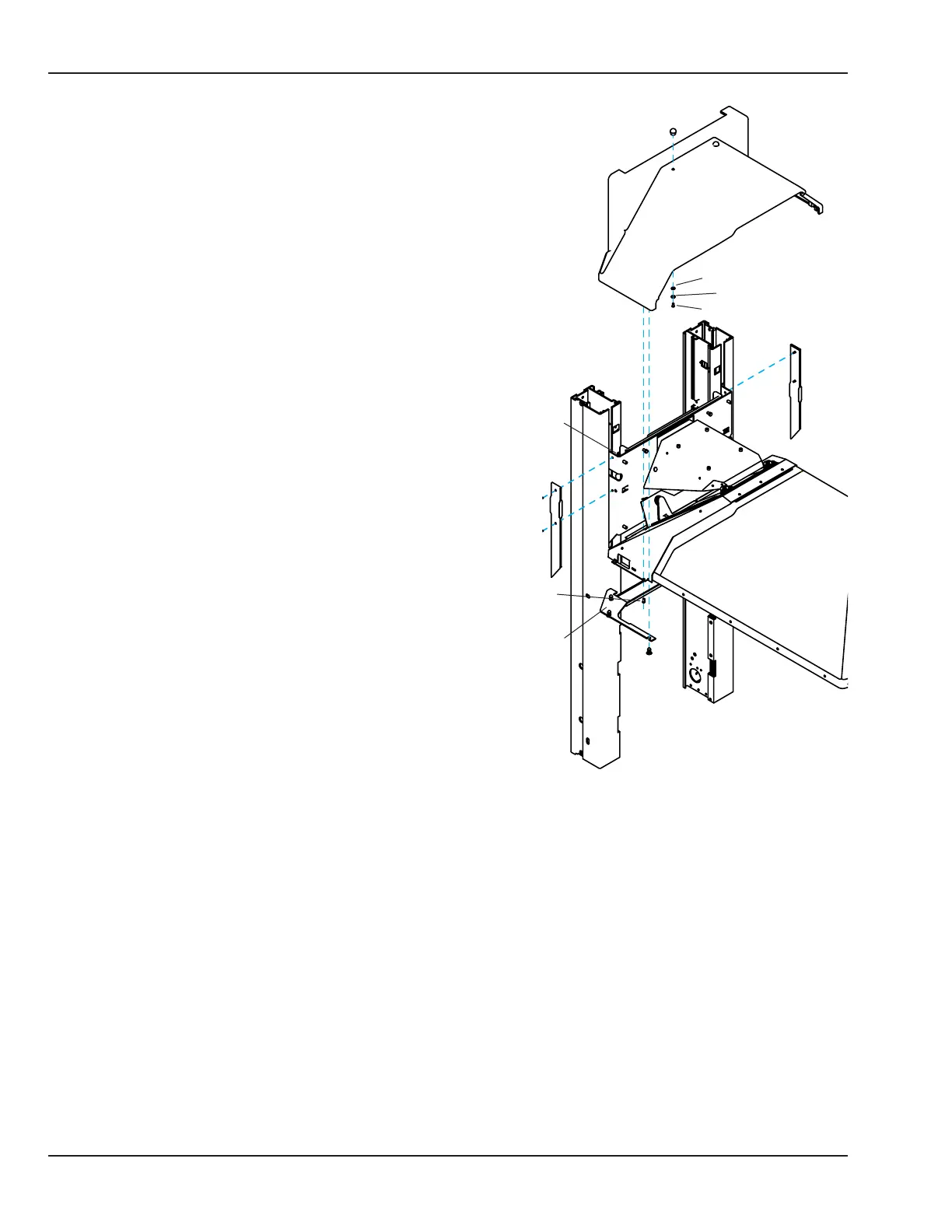

1. Radiant heater bracket ...................................................6600-1307-500
2. Bolt, M6 x 12 ........................................................................6600-0707-481
3. Nut, M6 x 12 .........................................................................6600-0711-460
4. Heater doors spring spool assembly (includes
cable) ......................................................................................6600-0857-700
Heater door cable .............................................................6600-0817-700
5. Screw, M4 x 10 button head .........................................6600-0706-409
6. Split ring lock washer ......................................................6600-0713-403
7. Screw, M4 x 12 socket head cap ................................6600-0707-410
8. Nut, elastic lock, M5 x 0.8 ..............................................6600-0714-403
9. Nut .........................................................................................6600-1165-400
10. Canopy ...................................................................................M1078118
11. Nut, elastic lock, M4 x 0.7 ..............................................6600-0714-402
12. Hood button .........................................................................6600-1788-500
13. Cable clamp .........................................................................6600-1060-400
14. Hex nut, M4 ..........................................................................6600-0711-407
15. Star washer, M4 ..................................................................6600-0713-443
16. Heater housing cover ......................................................6600-1220-500
17. Flat washer, M5...................................................................6600-0712-404
18. Split ring lock washer, M5 ..............................................6600-0713-404
19. Screw, M5 x 12 Button head socket ..........................6600-0706-418
20. Inside cover, right ..............................................................6600-1459-500
21. Soî »t clip, arrow fastener ...............................................6600-1056-400
22. Soî »t .........................................................................................6600-1461-500
23. Inside cover, left (west) ....................................................6600-1477-500
24. Screw, M3 x 10 socket head .........................................6600-0706-401
25. Lock nut, M3 ........................................................................6600-0714-401
26. Back plate bracket ............................................................6600-1306-500
27. Shoulder Screw, M4 x 6 ...................................................6600-1201-400
28. Door .........................................................................................6600-1460-500
29. Spring ......................................................................................6600-1109-400
30. Screw, M3 x 20 button head .........................................6600-0706-404
31. Split ring washer, M3 ........................................................6600-0713-402
32. Spacer .....................................................................................6600-1149-400
16
17
18
19
20
21
22
23
5
24
25
12
166 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
