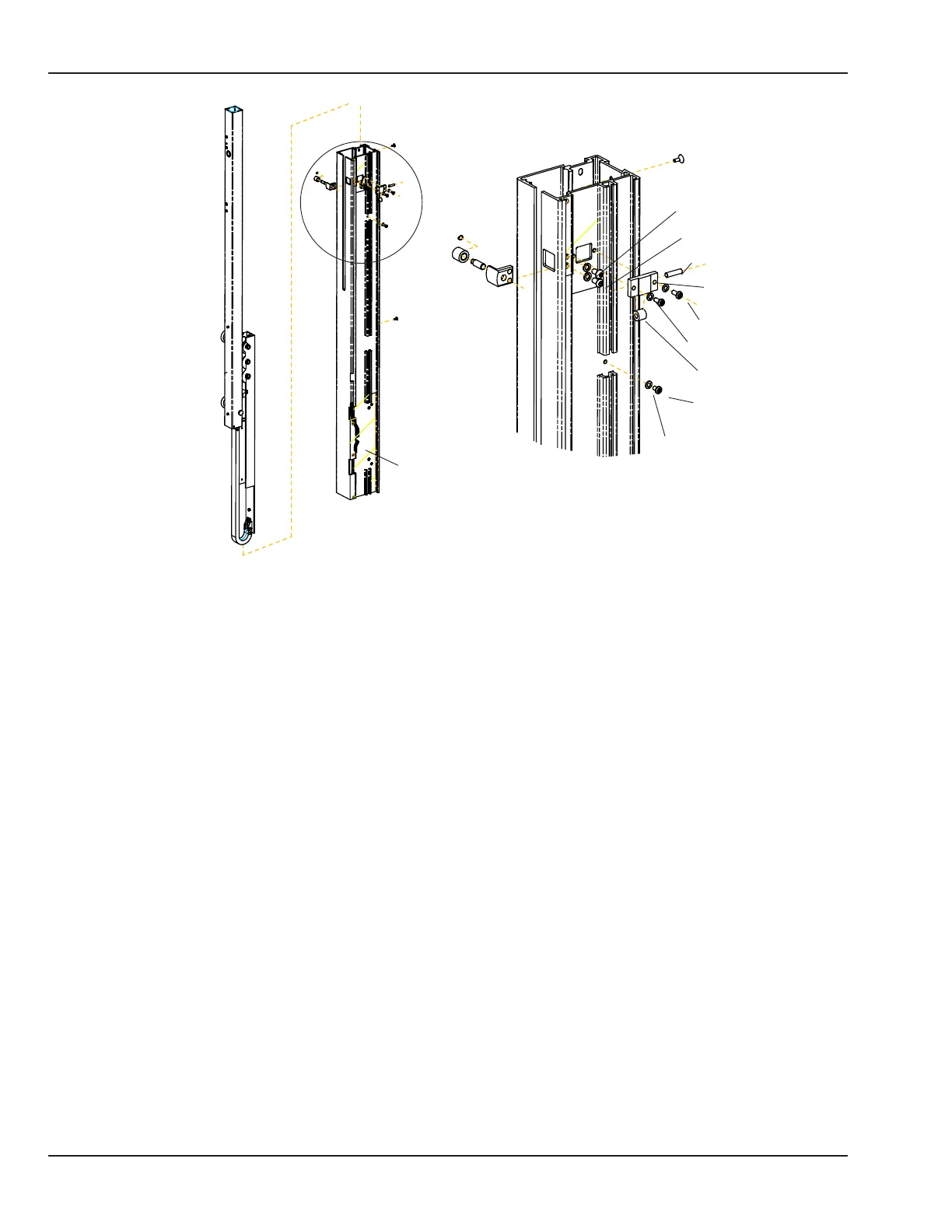

1. Spring, upper* .........................................................................................................6600-1464-500
2. Spring, lower* ..........................................................................................................6600-1465-500
3. Spring , left (west) only* ......................................................................................6600-1725-500
4. Screw, M5 x 20 socket head .............................................................................6600-1152-400
5. Spacer .........................................................................................................................6600-1103-400
6. Roll pin ........................................................................................................................6600-1093-400
7. Stop block, left (west) only .................................................................................6600-1712-500
8. Heater wire harness/cable carrier assembly*** ....................................6600-0710-700
9. Spring bracket, left (west) only ........................................................................6600-1350-500
10. Spring spool .............................................................................................................6600-1317-500
11. Plastic washer .........................................................................................................6600-1708-500
12. Lift rail .........................................................................................................................6600-1333-500
13. Screw, M4 x 12 at head socket .....................................................................6600-0708-409
14. Split ring lock washer, M5 ..................................................................................6600-0713-404
15. Screw, M5 x 10 button head socket ..............................................................6600-0706-409
16. Side roller pin**.......................................................................................................6600-1098-400
17. Side roller bracket** .............................................................................................6600-1451-500
18. Screw, M4 x 10 socket head .............................................................................6600-0707-409
19. Split ring lock washer M4 ...................................................................................6600-0713-403
20. Side roller** ..............................................................................................................6600-1450-500
21. Screw, M4 x 6 socket head ................................................................................6600-0707-407
22. Star washer M4 Int ................................................................................................6600-0713-432
23. Retaining ring ..........................................................................................................6600-1182-400
24. Front roller ................................................................................................................6600-1770-500
25. Front roller pin .........................................................................................................6600-1496-500
26. Front roller bracket ...............................................................................................6600-1483-500
27. Left (west) upright ..................................................................................................6600-0288-851
*Replace all the buoyancy springs at one time.
** The side roller pin, side roller bracket, and side roller should be ordered together. Use pliers to press the pin into the side roller bracket.
*** When ordering this assembly, also order 6600-1097-603, unless you have a pin extractor. For details, refer to section 5.5.5.
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
190 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
