DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-5 - Replacing Cables 8 - 55
3. Cut 4 Cable Ties.
4. Pull UBE To Monitor HDMI Cable from the 2nd Arm
5. Pull the UBE To Monitor HDMI Cable from the 1st Arm.
6. Unlock Cable clamp and unscrew 1 screw and
remove the Metal clamp and EMI Core from UBE To
Monitor HDMI Cable.
7. Unscrew 2 screws to remove the Cable Clamp.

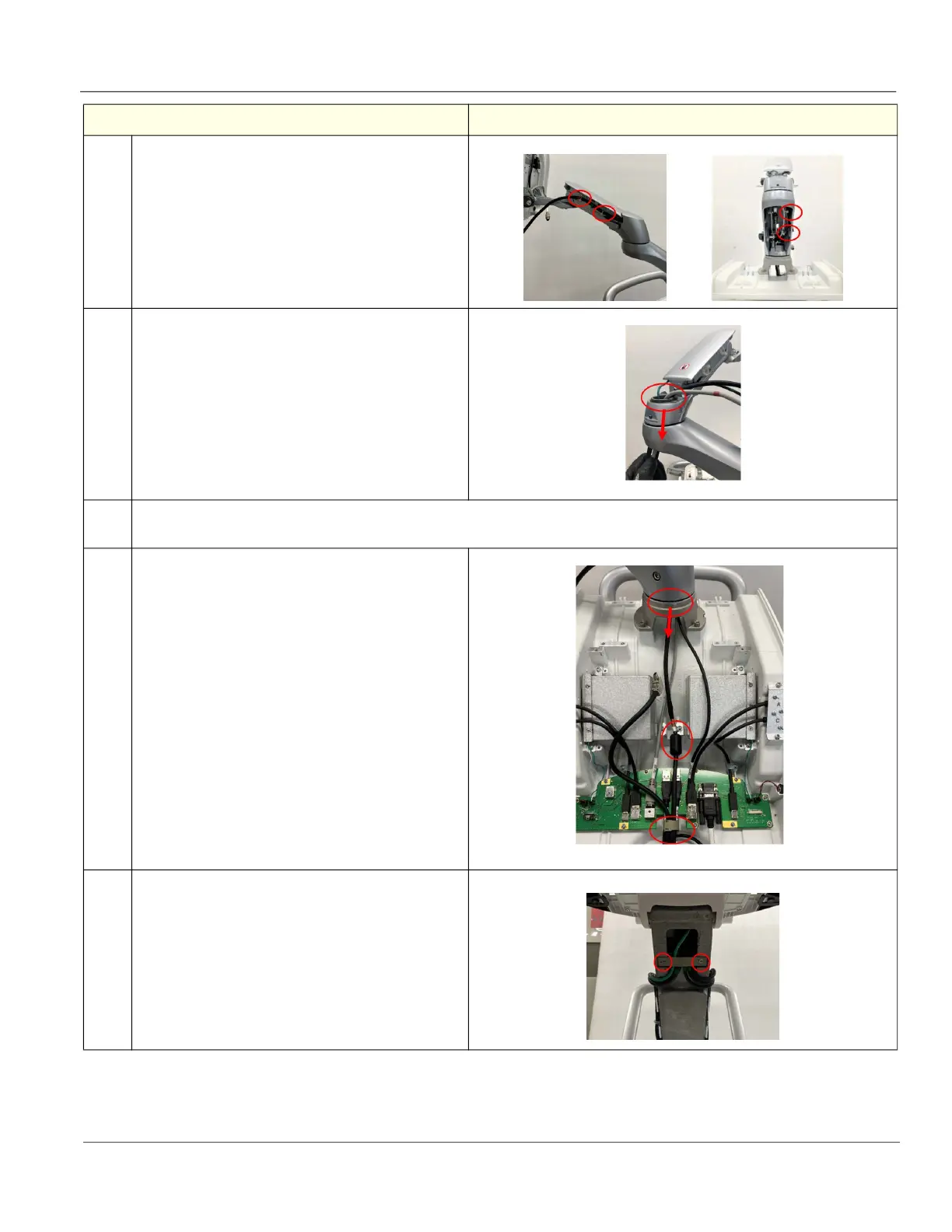

Steps Corresponding Graphic
