8 - 56 Section 8-5 - Replacing Cables
8. Cut 2 Cable Ties and pull the UBE To Monitor HDMI
Cable to remove from the T2 OPIO Base.
9. Unscrew 4 screws to remove the Unity Cable Cover
Brkt.
10. Unlock the Cable Clamp.
11. Rotate studs of the UBE To Monitor HDMI Cable
counterclockwise and disconnect the UBE To Monitor
HDMI Cable from the UBE.

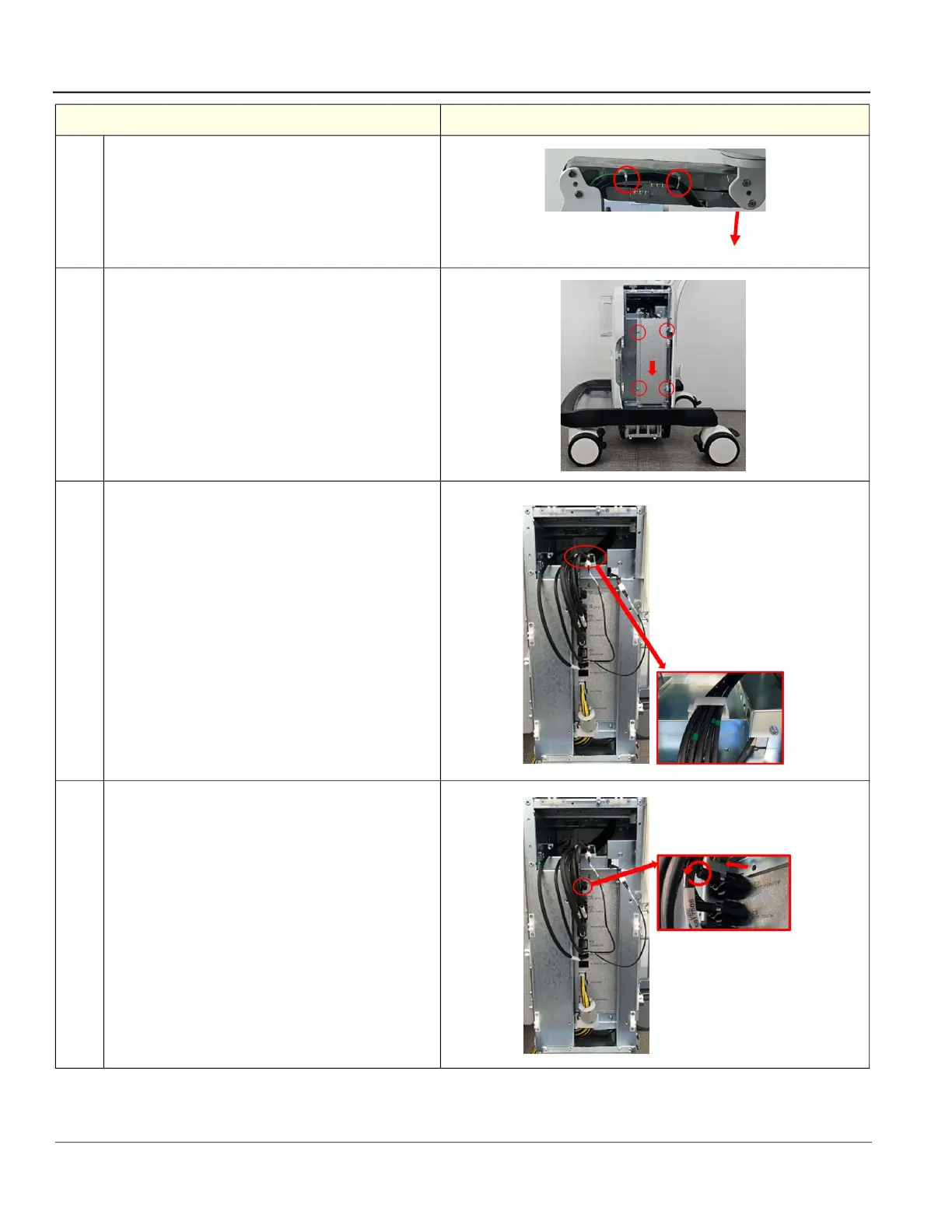

Steps Corresponding Graphic
