GE HealthCare CONFIDENTIAL

DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual

8 - 66 Section 8-5 - Replacing Cables

8-5-11-3 Installation Procedure

1.) Parts to be installed in reverse order of removal

2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-

12 on page 8-223

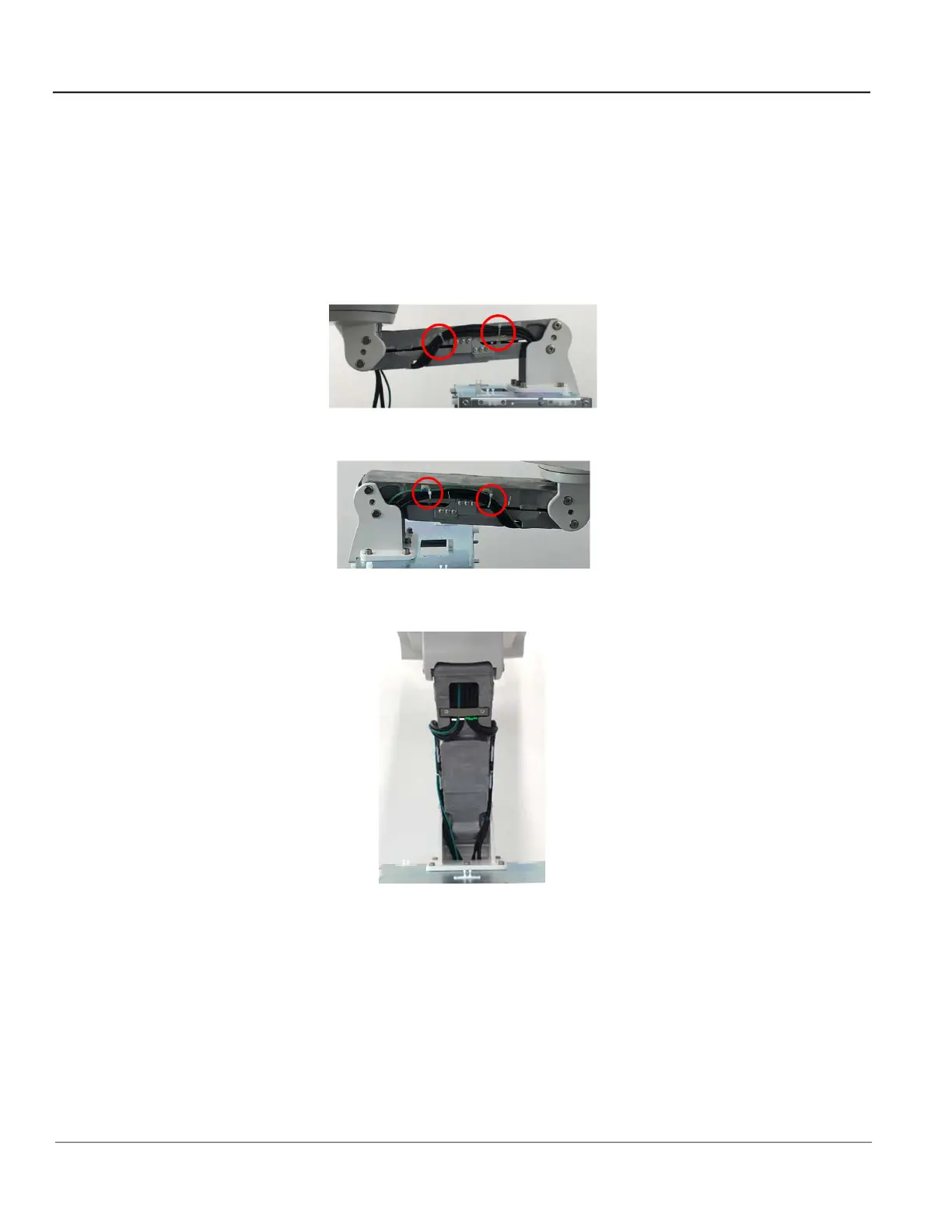

NOTE: Fix UBE To OPIO HUB D-SUB 15PIN Cable Tie as below figure

- Align the marks on UBE To OPIO HUB USB3.0 Cable(2EA) and UBE To OPIO HUB D-SUB 15Pin

Cable and fix the cables using Cable Tie, DACT-100A

-Align the marks on UBE To OPIO Touch Panel HDMI Cable, GND Cable (Chassis To OPIO) and UBE

To Monitor HDMI Cable and fix the cables using Cable Tie, DACT-100A.

-Align the marks on cables and fix the cables using Cable Clamp CPFDM14-A.

NOTE: The UBE To OPIO HUB USB 3.0 Cable can be inserted to any of two USB ports (OPIO HUB).
