DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-6 - Replacing Monitor and Monitor Arm 8 - 81
8-6-4-2 Removal Procedure
8-6-4-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

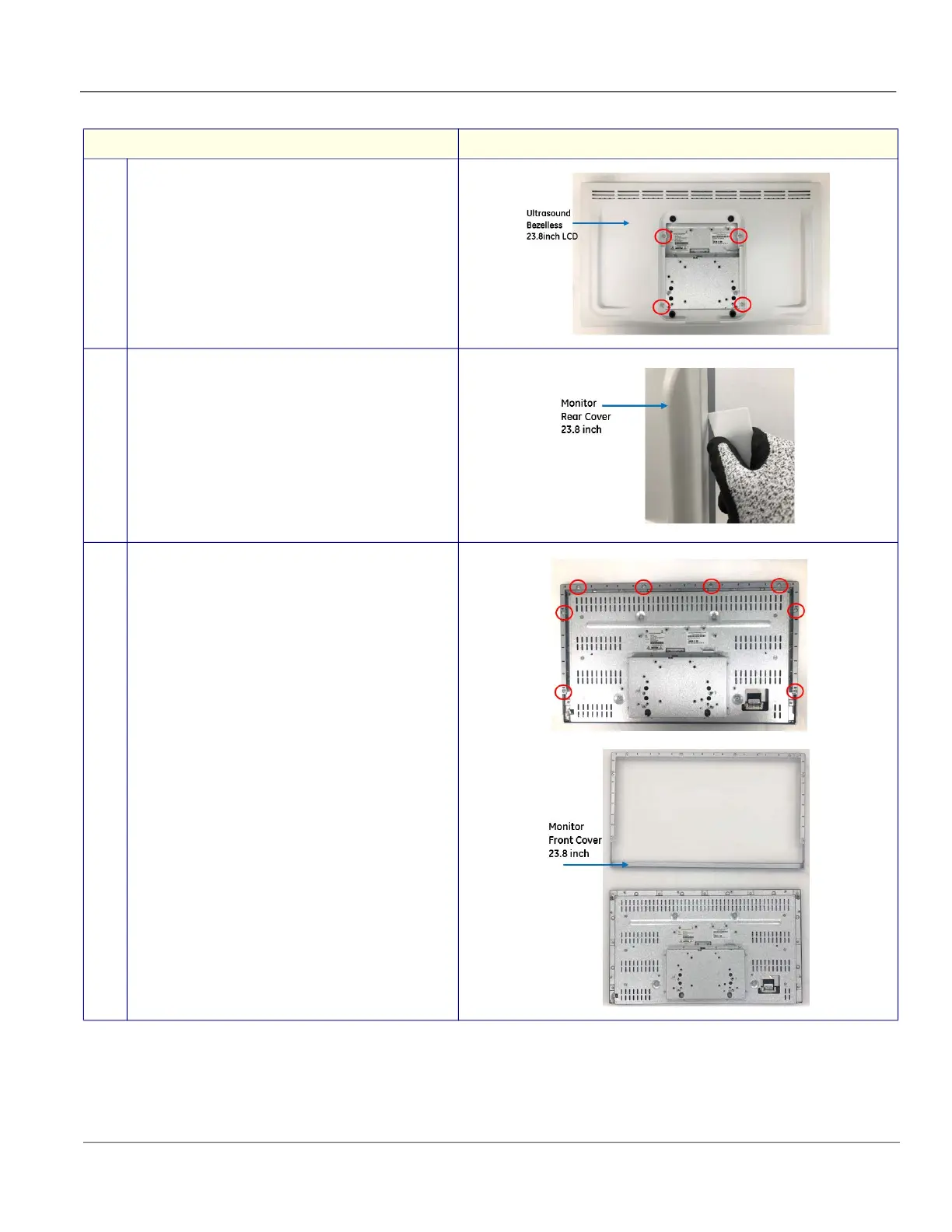

Step Corresponding graphic
1.
Unscrew 4 screws from the Ultrasound Bezelless
23.8inch LCD T2.
2.
Use the Hook Remover to remove the Monitor Rear
Cover 23.8 inch.
3.
Unscrew 8 screws to remove the Monitor Front Cover
23.8inch T2.
