DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-6 - Replacing Monitor and Monitor Arm 8 - 83
8-6-5-2 Removal Procedure
8-6-5-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

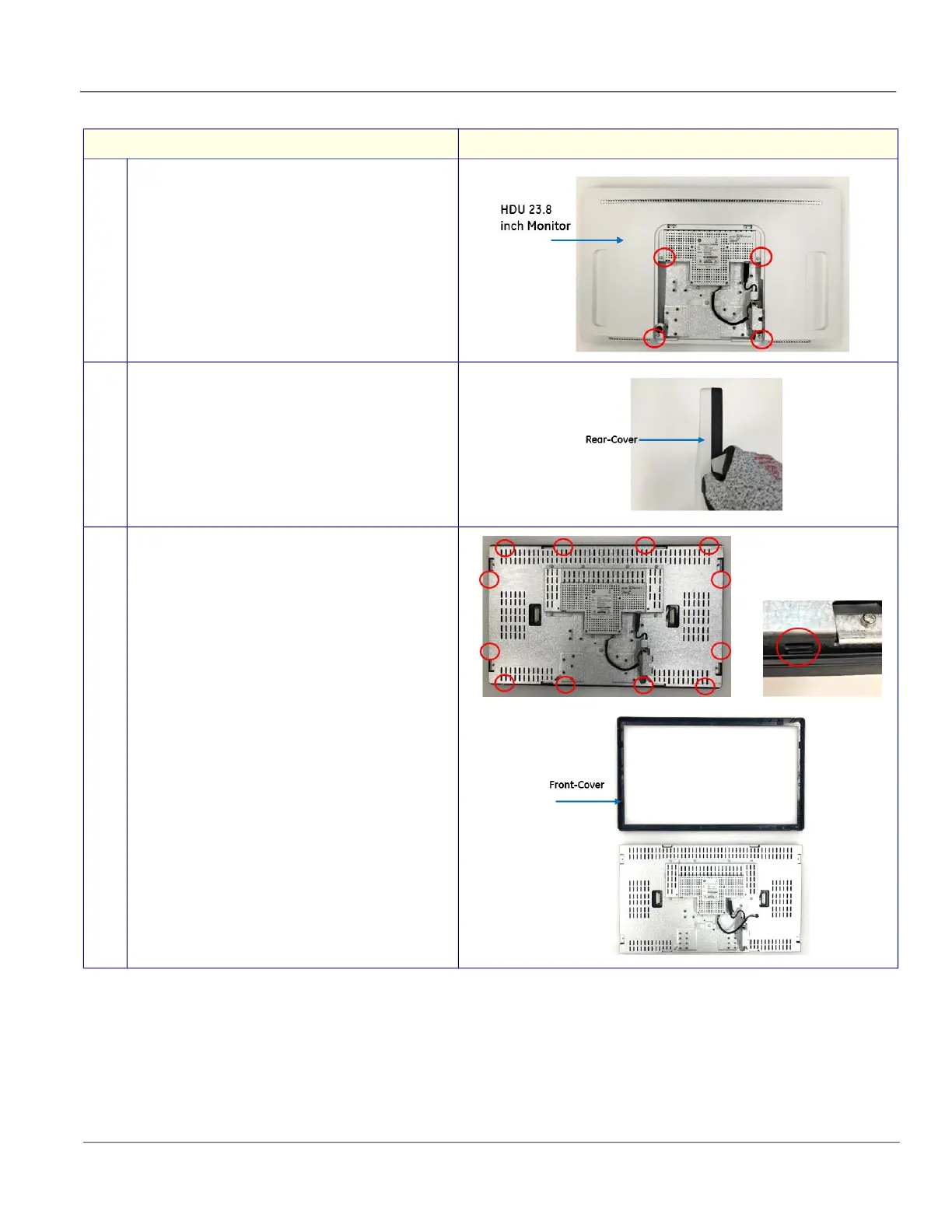

Step Corresponding graphic
1.
Unscrew 4 screws from the HDU 23.8 inch Monitor
LOGIQ Exx.
2.
Use the hook remover to remove the Rear-Cover
from the HDU 23.8 inch Monitor LOGIQ Exx
3.
Release 12 snap fits to remove the Front-Cover from
the HDU 23.8 inch Monitor LOGIQ Exx.
