DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 94 Section 8-7 - Replacing OPIO
8-7-6-2 Removal Procedure
8-7-6-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

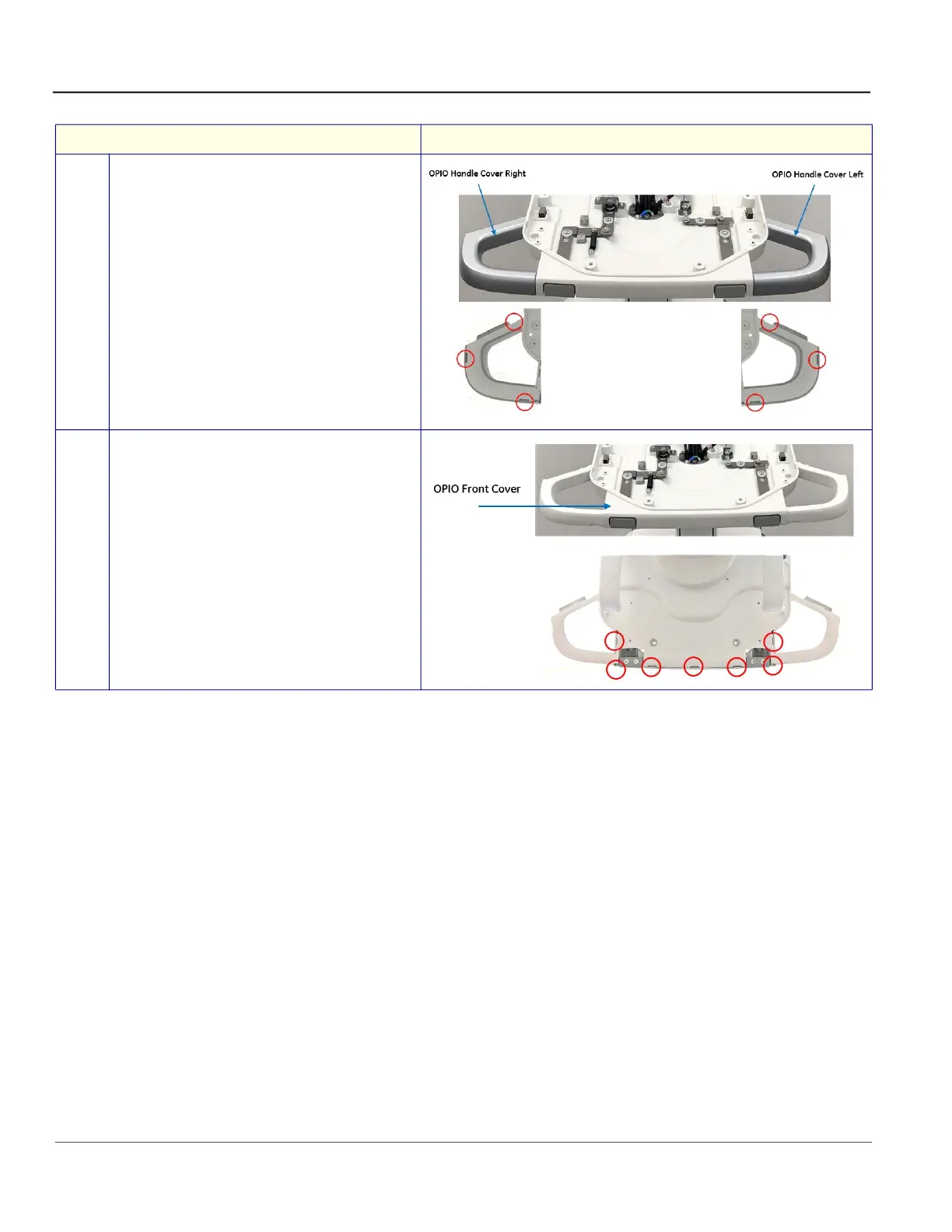

Step Corresponding graphic
1.
Release 6 snap fits to remove the T2 OPIO
Handle Cover Left/Right from the console.
2.
Release 7 snap fits to remove the T2 OPIO Front
Cover from the console.
To Next Page
