DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 108 Section 8-7 - Replacing OPIO
8-7-17-2 Removal Procedure
8-7-17-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

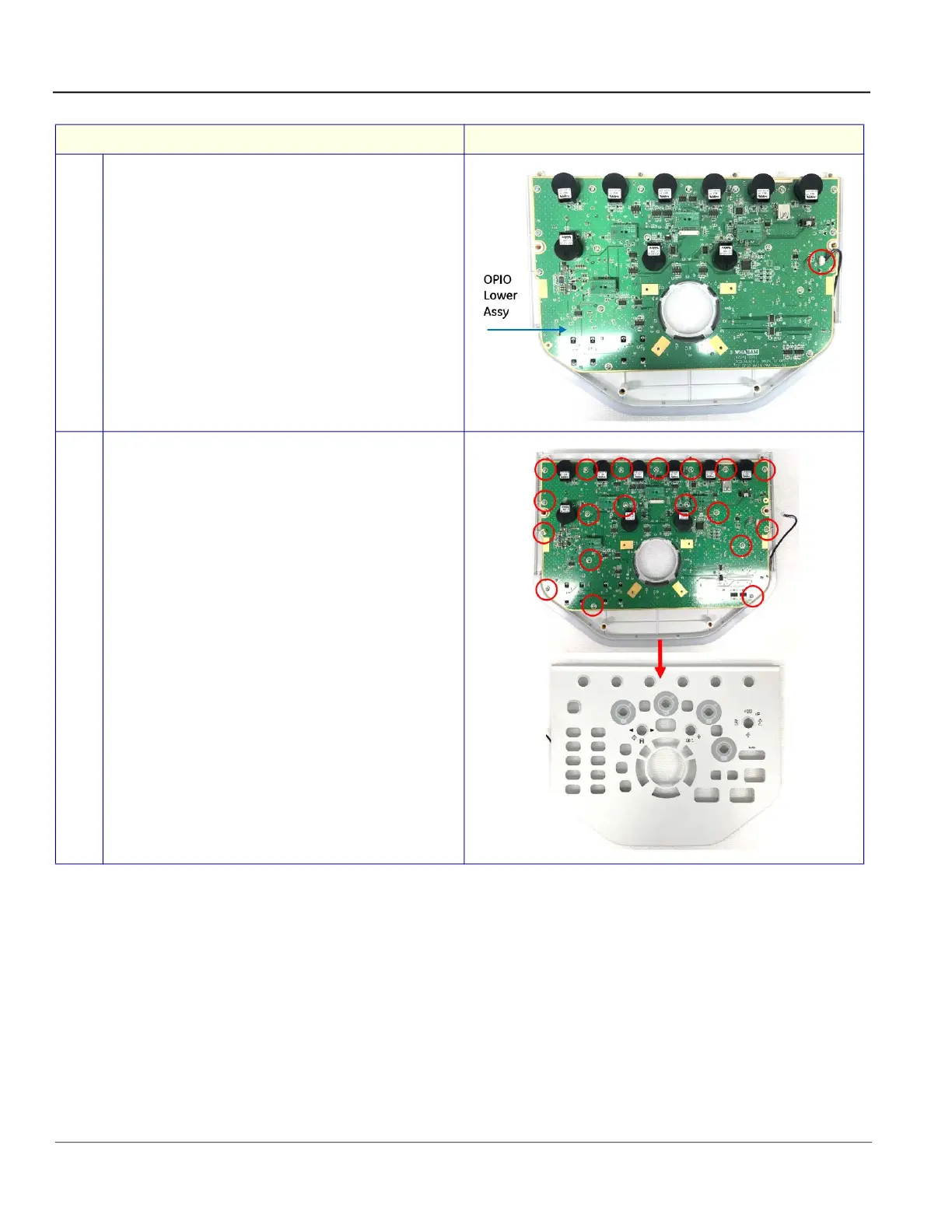

Step Corresponding graphic
1. Disconnect 1 cable from the T2 OPIO Lower Assy
2. Unscrew 19 screws to remove the T2 OPIO Lower Assy.
