Basic Service Manual
8 - 126
Section 8-7 - Replacing OPIO
8-7-27-2
Removal Procedure
Steps

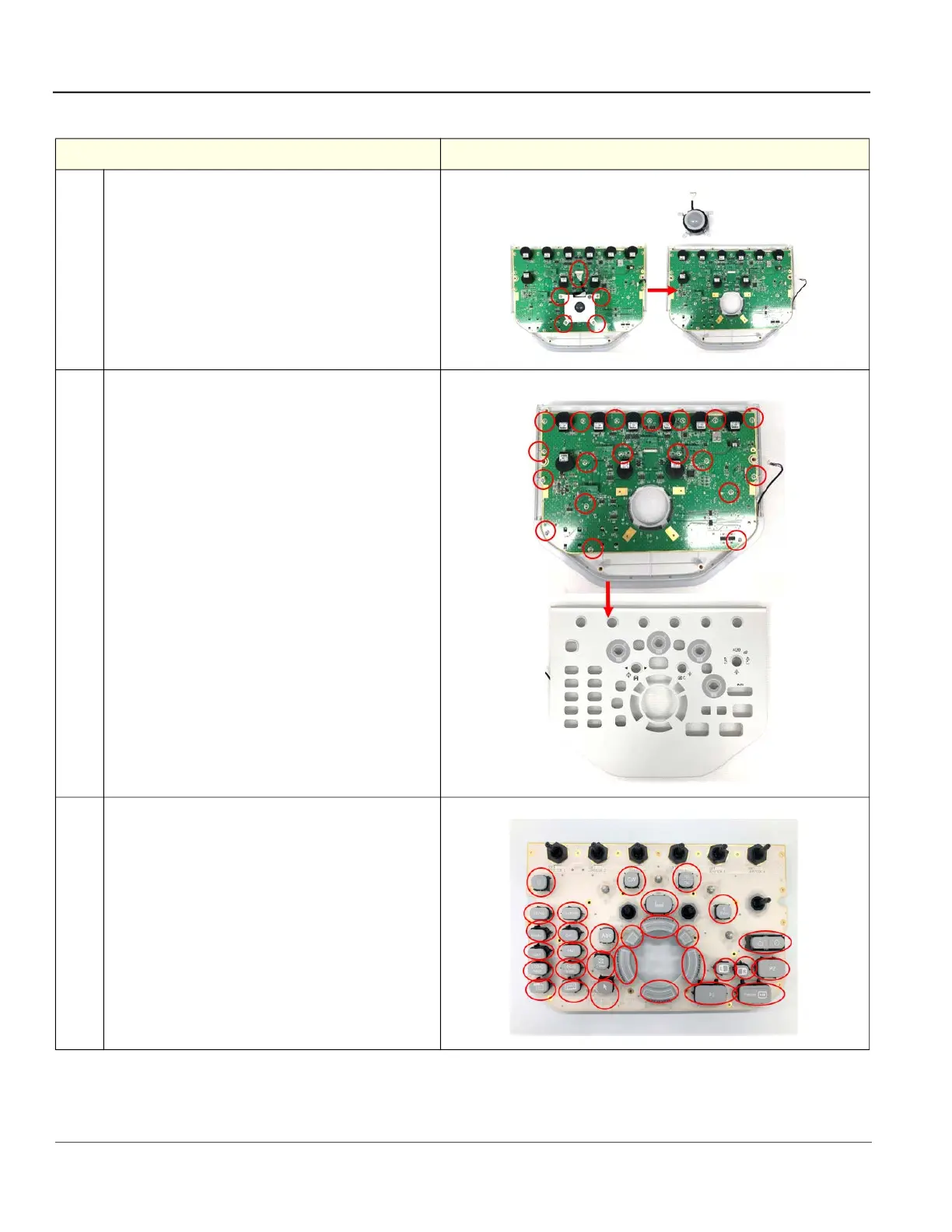

Corresponding Graphic
1.
Disconnect trackball cable and unscrew 4
screws to
remove the trackball from the T2 OPIO Lowe
r Assy.
2.
Unscrew 19 screws to remove the T2 OPIO
Lower
Assy.
3.
Remove the OPIO Button Set-T from the OPI
O
Board.
