DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 180 Section 8-10 - Replacing Back End Parts
8-10-6-3 Installation Procedure
1.) Parts to be installed in reverse order of removal.
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
5. Unscrew 1 screw to remove the SSD
6. Unscrew 1 screw to remove the UEPP-T from Unity
External IO Fix Brkt.
7. Unscrew 3 screws and 4 studs to remove the UEPP.

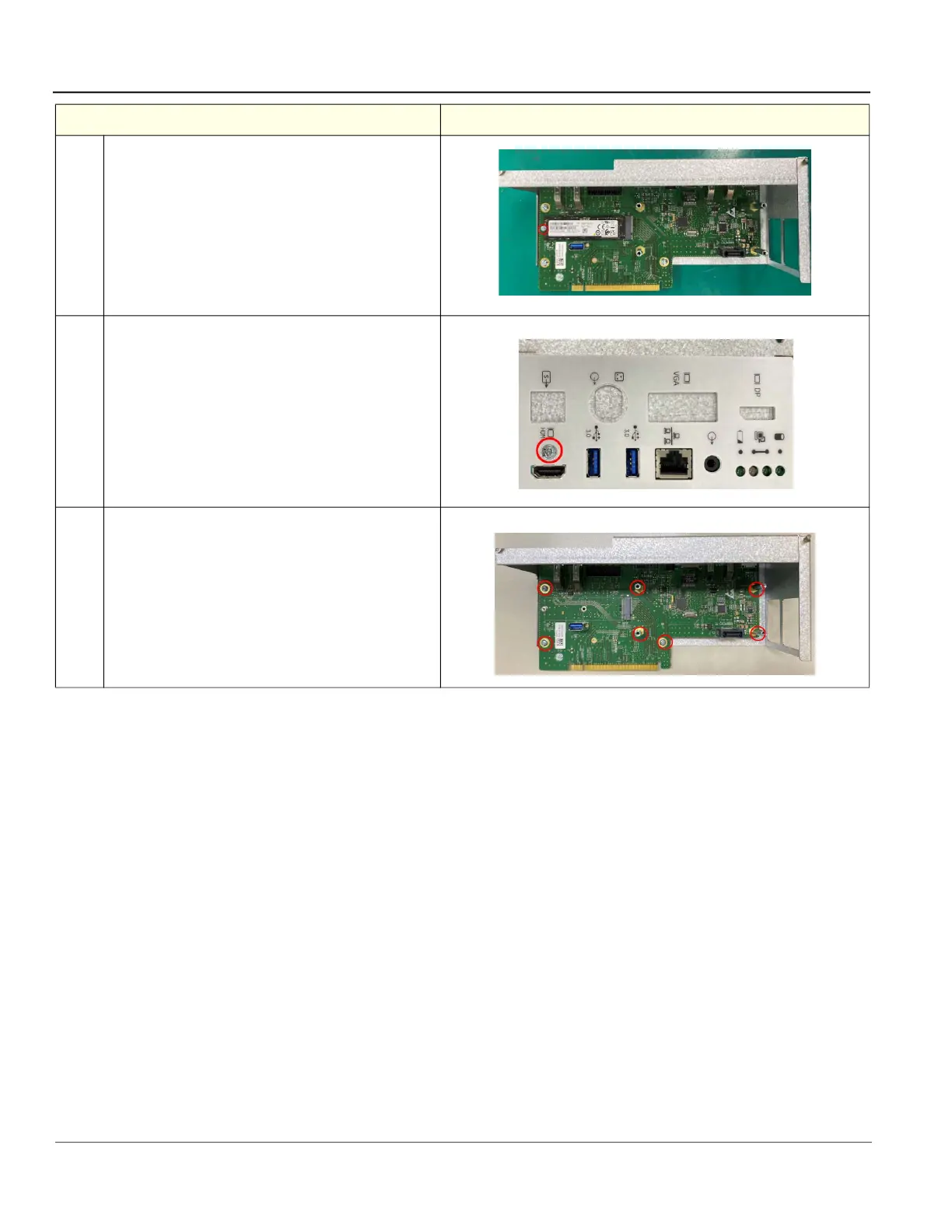

Steps Corresponding Graphic
