DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 186 Section 8-11 - Replacing Options
8-11-3 Replacement of the Rear Handle Cable Hook Set-U
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-11-3-1 Removal Procedure
8-11-3-2 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
Table 8-98 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 5 minutes Flat Screwdriver
Cut resistant gloves
Knee Pad

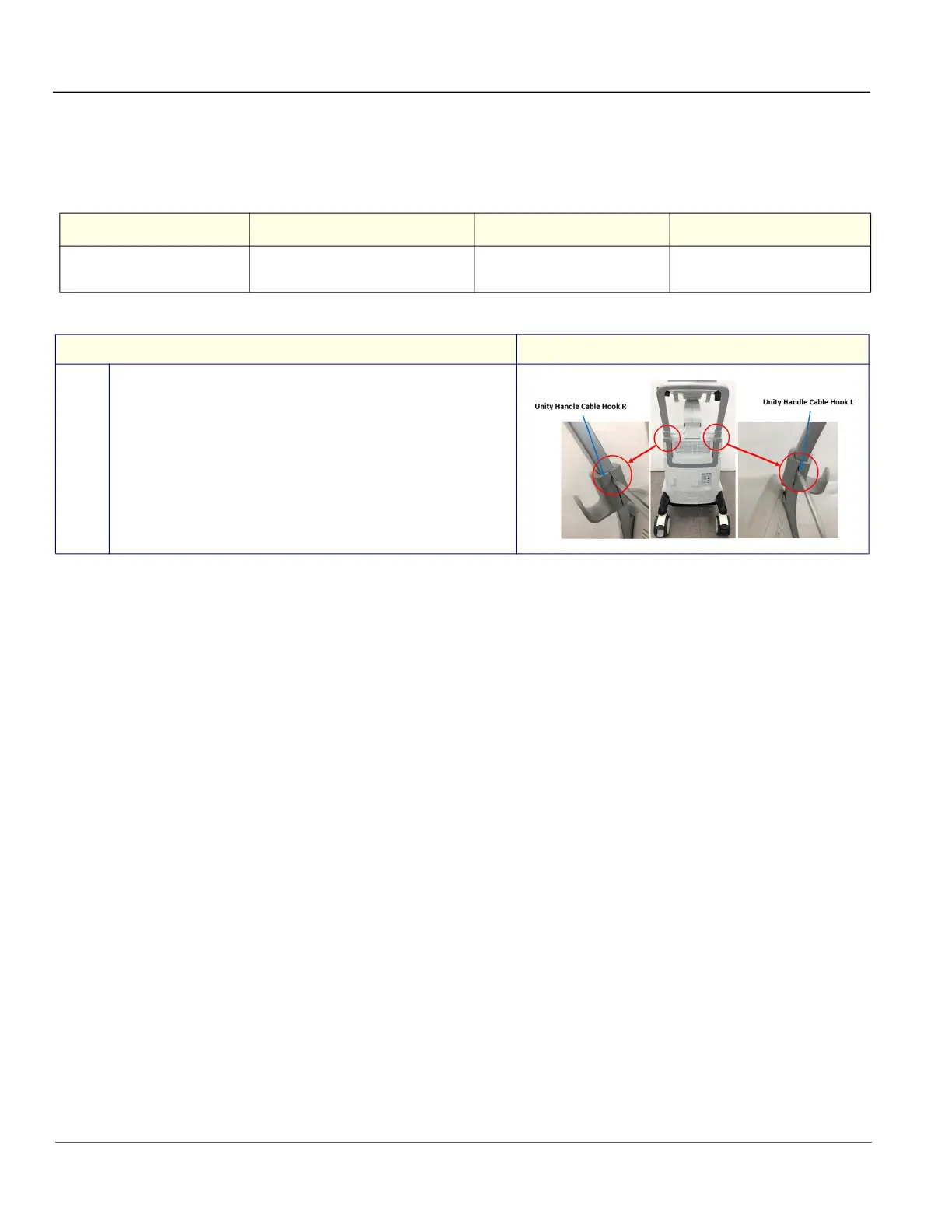

Step Corresponding graphic
1.
Release 2 snap fits to remove the Unity Handle Cable Hook L/R
from the console
To Next Page
