GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-11 - Replacing Options 8 - 205
8-11-16-2 Removal Procedure
8-11-16-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

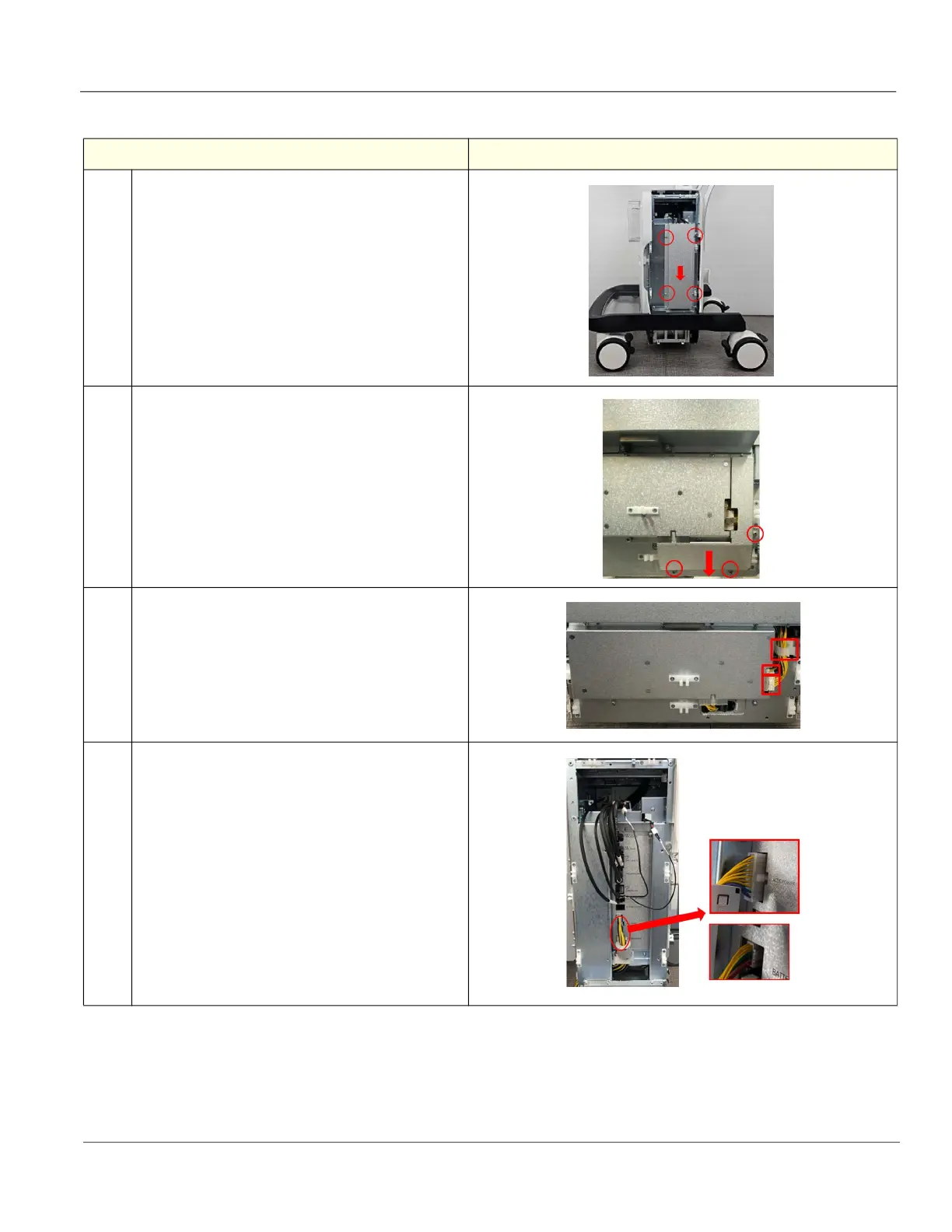

Steps Corresponding Graphic
1. Unscrew 4 screws to remove the Unity Cable Cover
Brkt.
2. Unscrew 3 screws to remove the Unity Battery Cable
Hide Brkt from the console.
3. Unlock Cable clamp and disconnect the UBC To UBE
Power Signal Cable and UBC To UBE Battery Power
Cable from the UBC-T.
4. Unlock the Cable Clamp and disconnect the UBC To
UBE Power Signal Cable and UBC To UBE Battery
Power Cable from the UBE.
