GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-11 - Replacing Options 8 - 211

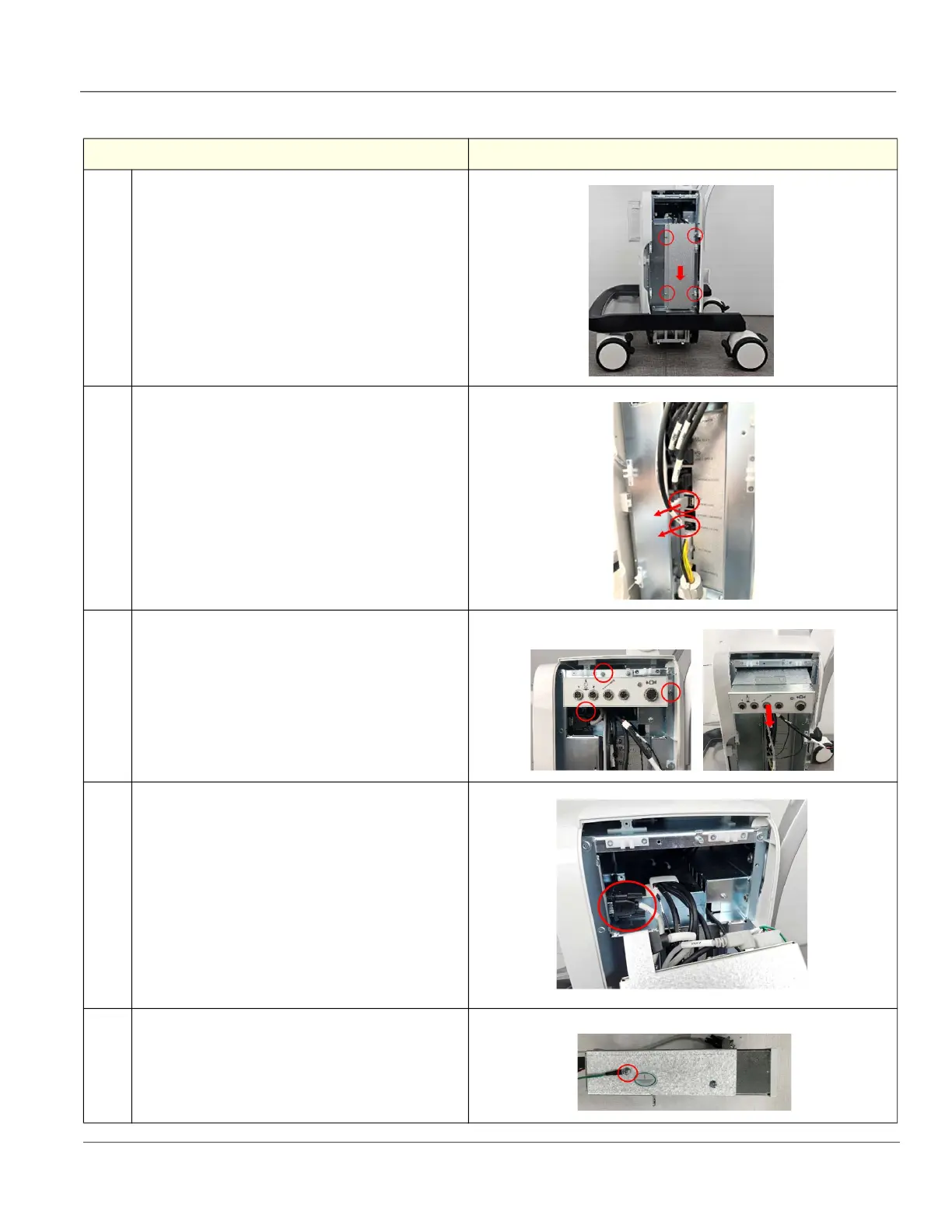

8-11-19-2 Removal Procedure
Steps Corresponding Graphic
1. Unscrew 4 screws to remove the Unity Cable Cover
Brkt.
2. Disconnect UBE To VNAV USB Cable & UVNAV
PWR Cable to remove from the console.
3. Unlock Cable Clamp and unscrew 3 screws to
remove the VNAV Assy.
4. Disconnect the UCO To V-NAV Signal Cable from the
VNAV Assy.
5. Unscrew 1 screw to remove the UVNAV PWR Cable
from the VNAV Assy.
To Next Page
