DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 212 Section 8-11 - Replacing Options
8-11-19-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

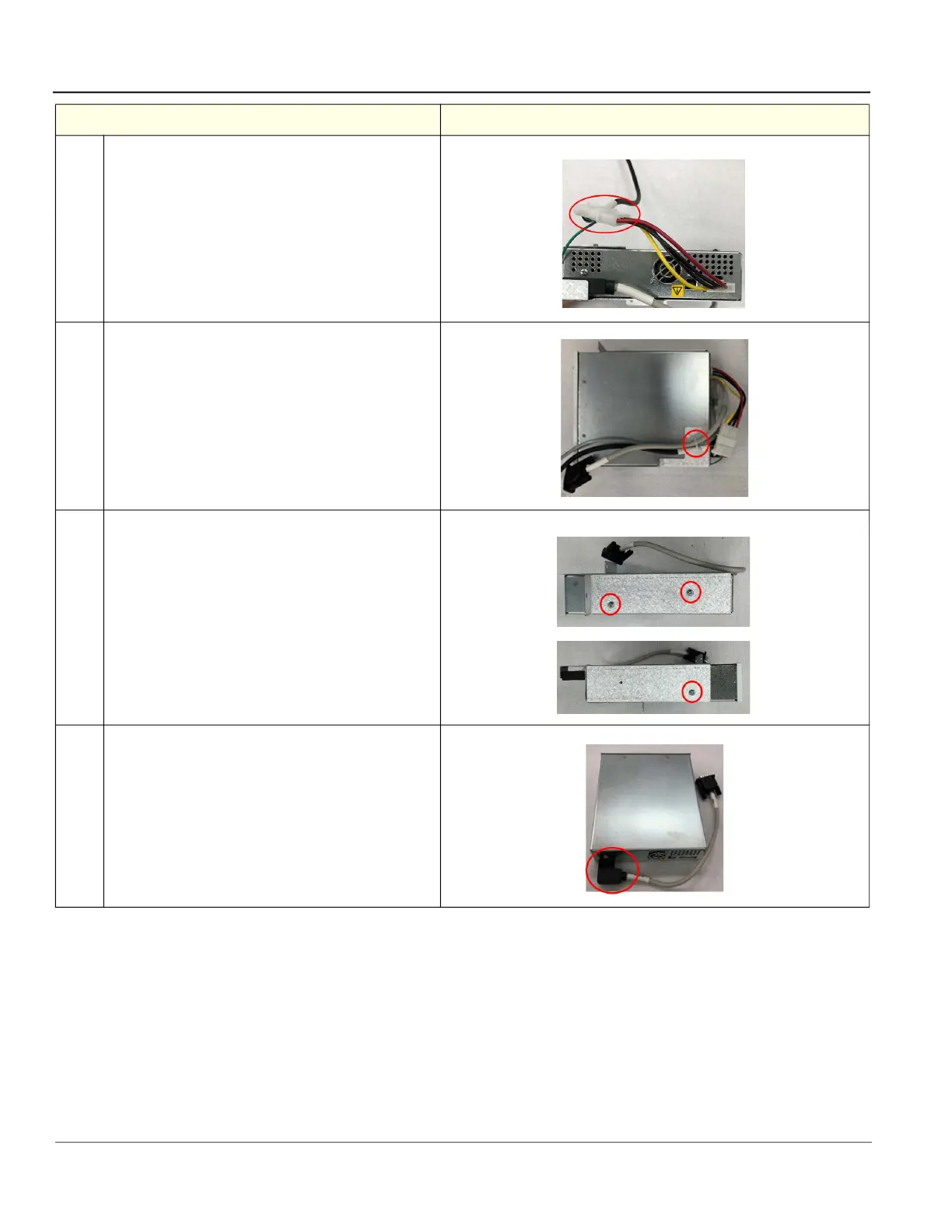

6. Disconnect the UVNAV PWR Cable from the VNAV
Assy.
7. Cut the cable tie.
8. Unscrew 3 screws to remove the T2 VNAV FIX BRKT
from the VNAV.
9. Disconnect the UCO To V-NAV Signal Cable to the
VNAV.
