GE LOGIQ Totus

GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 214 Section 8-11 - Replacing Options
8-11-21 Replacement of the U-WIFI Module Assy
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6.
8-11-21-1 Preparations
1.) Power off/Shutdown the system as described in 1-7-2 "Lockout/tagout procedure" on page 1-25
2.) Remove the T2 Side Cover L Assy as described in 8-8-7 "Replacement of the T2 Side Cover L
Assy" on page 8-135
8-11-21-2 Removal Procedure
8-11-21-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
Table 8-116 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 15 minutes Phillips screwdriver
Cut resistant gloves
Knee Pad

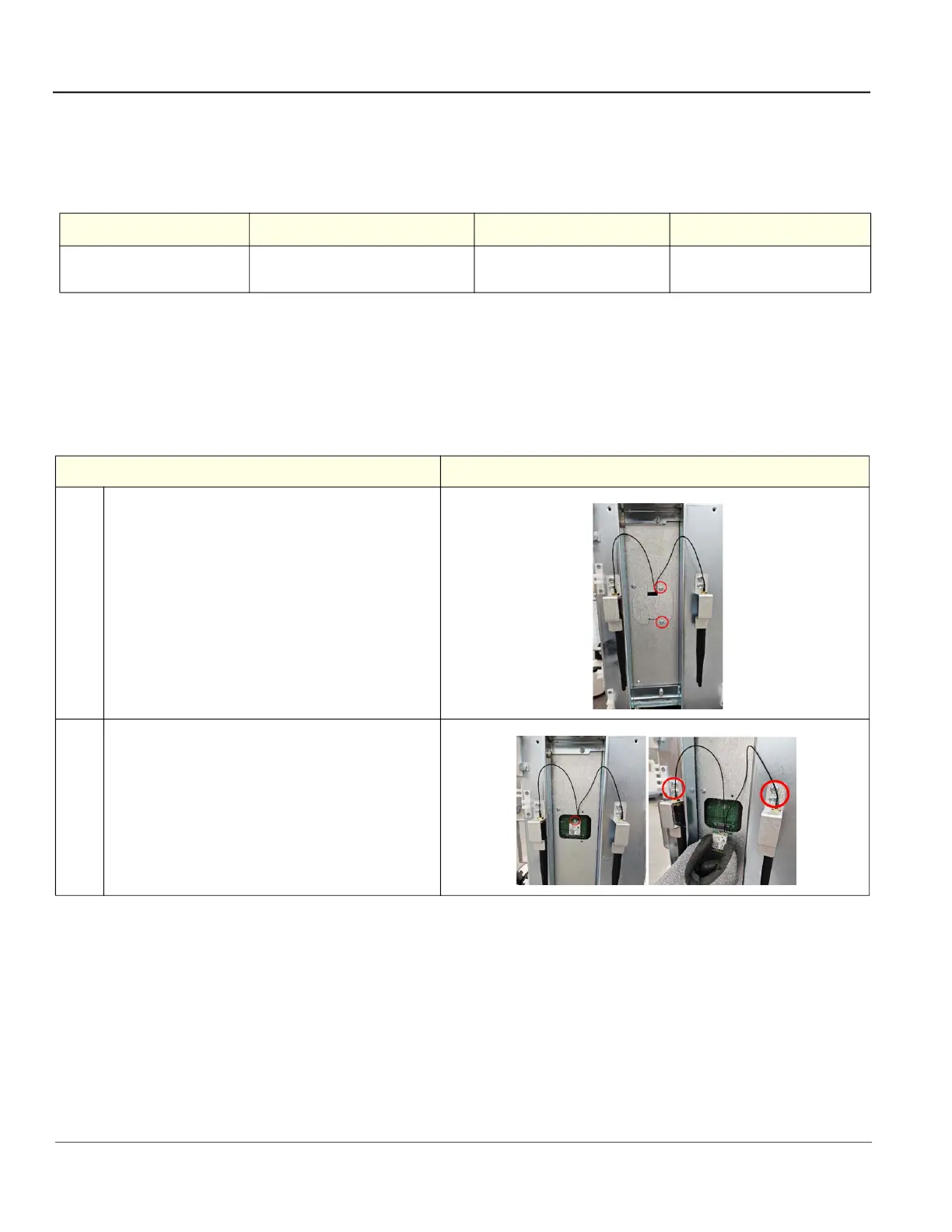

Steps Corresponding Graphic
1. Unscrew 2 screws to remove the Cover bracket..
2. Unscrew 1 screw of the WIFI module Assy and
disconnect the WIFI module from the UEPP
connector. Unscrew 4 screws to remove the WIFI
Module Assy from the console.
