8-11-23-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

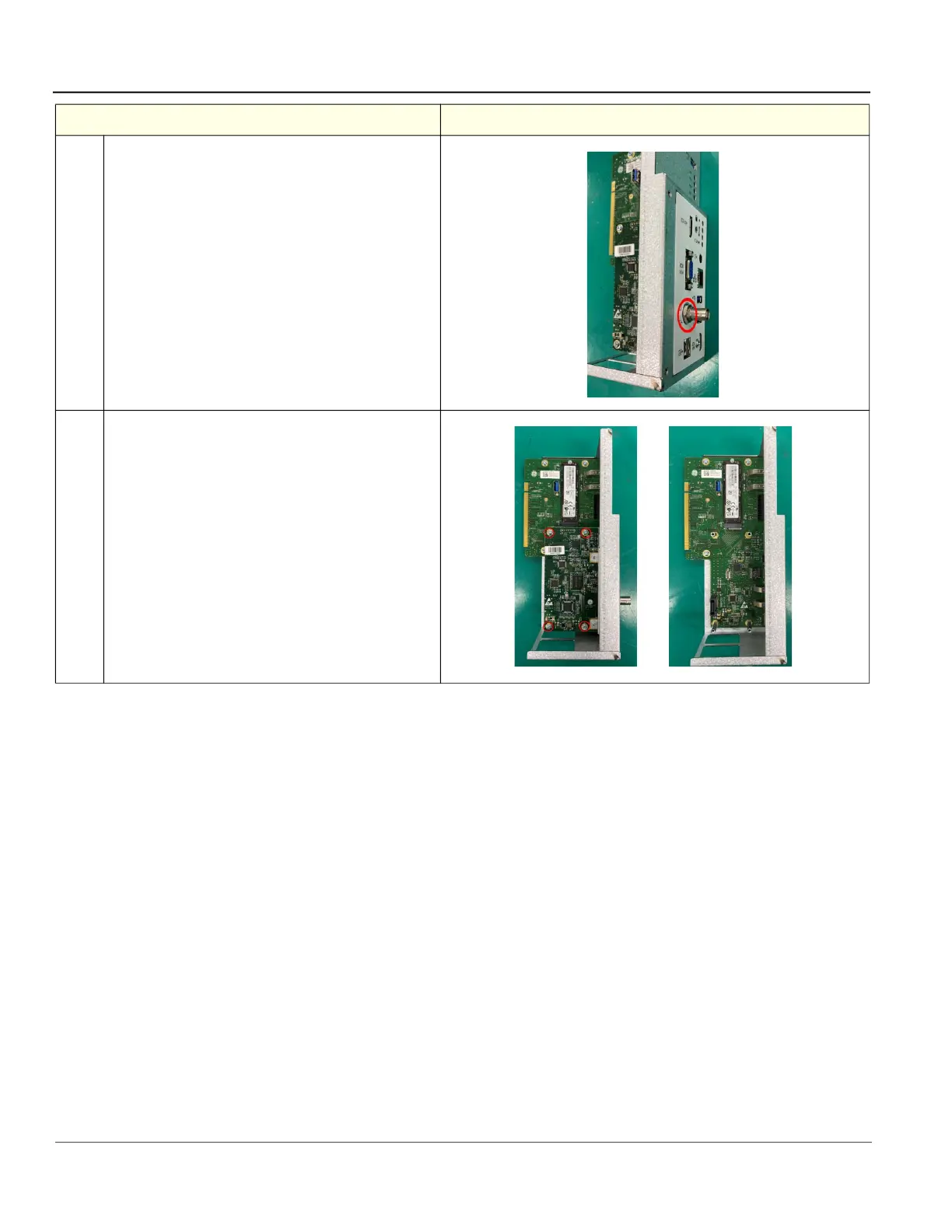

4. Unscrew Nut with the Spanner from the UVSC’s VNC
connector.
5. Unscrew 4 screws to remove the UVSC-T and
remove the UVSC-T
Steps Corresponding Graphic
