GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 220 Section 8-11 - Replacing Options
8-11-24-2 Removal Procedure

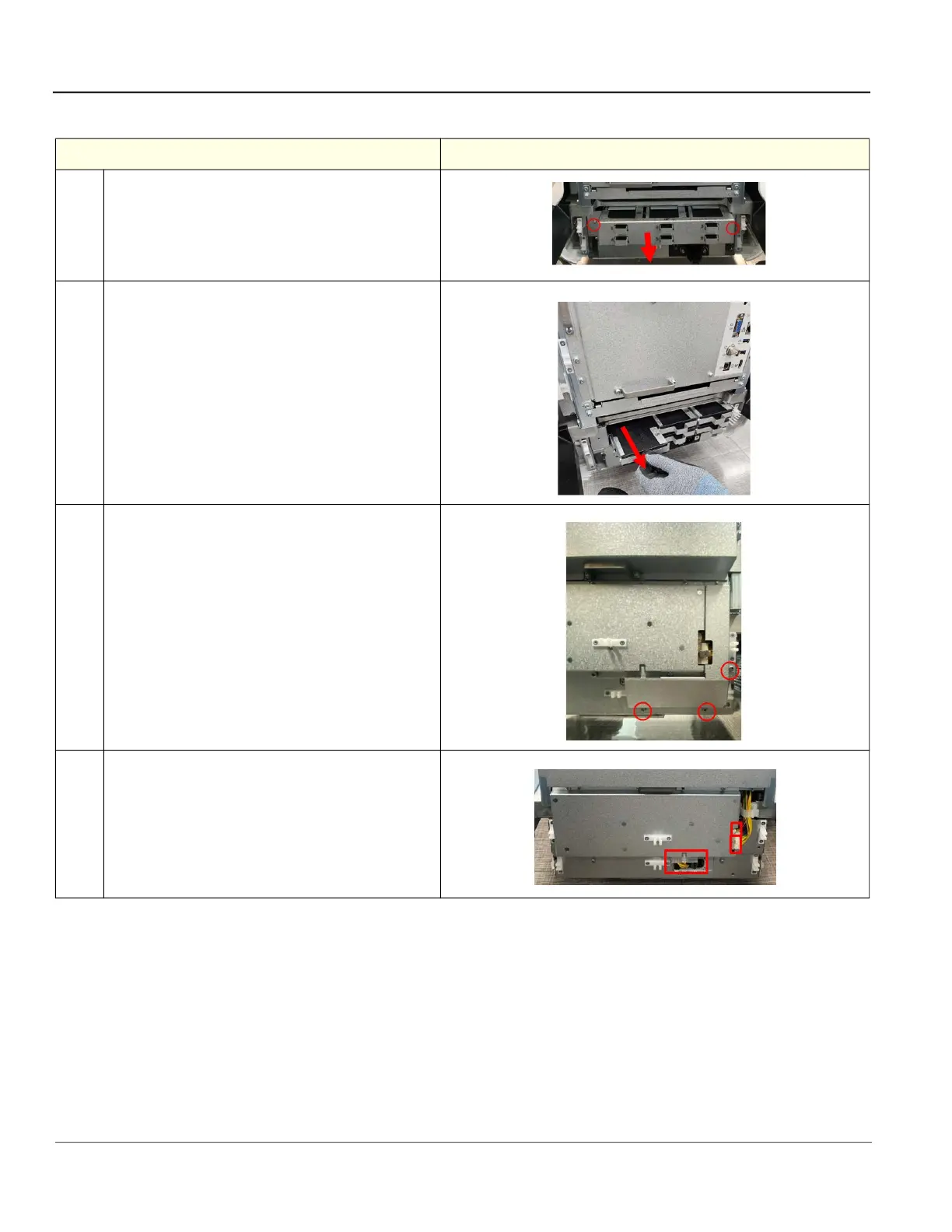

Steps Corresponding Graphic
1. Unscrew 2 screws to remove the Unity Battery Cover
Brkt from the console.
2. Pull the Battery Pack to remove from the console.
3. Unscrew 3 screws to remove the Unity Battery Cable
Hide Brkt from the console.
4. Disconnect the ACDC Link Cable To UBE Cable, the
UBC To UBE Power Signal Cable and UBC To UBE
Battery Power Cable from the UBC-T Assy.
