DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-11 - Replacing Options 8 - 221
8-11-24-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223

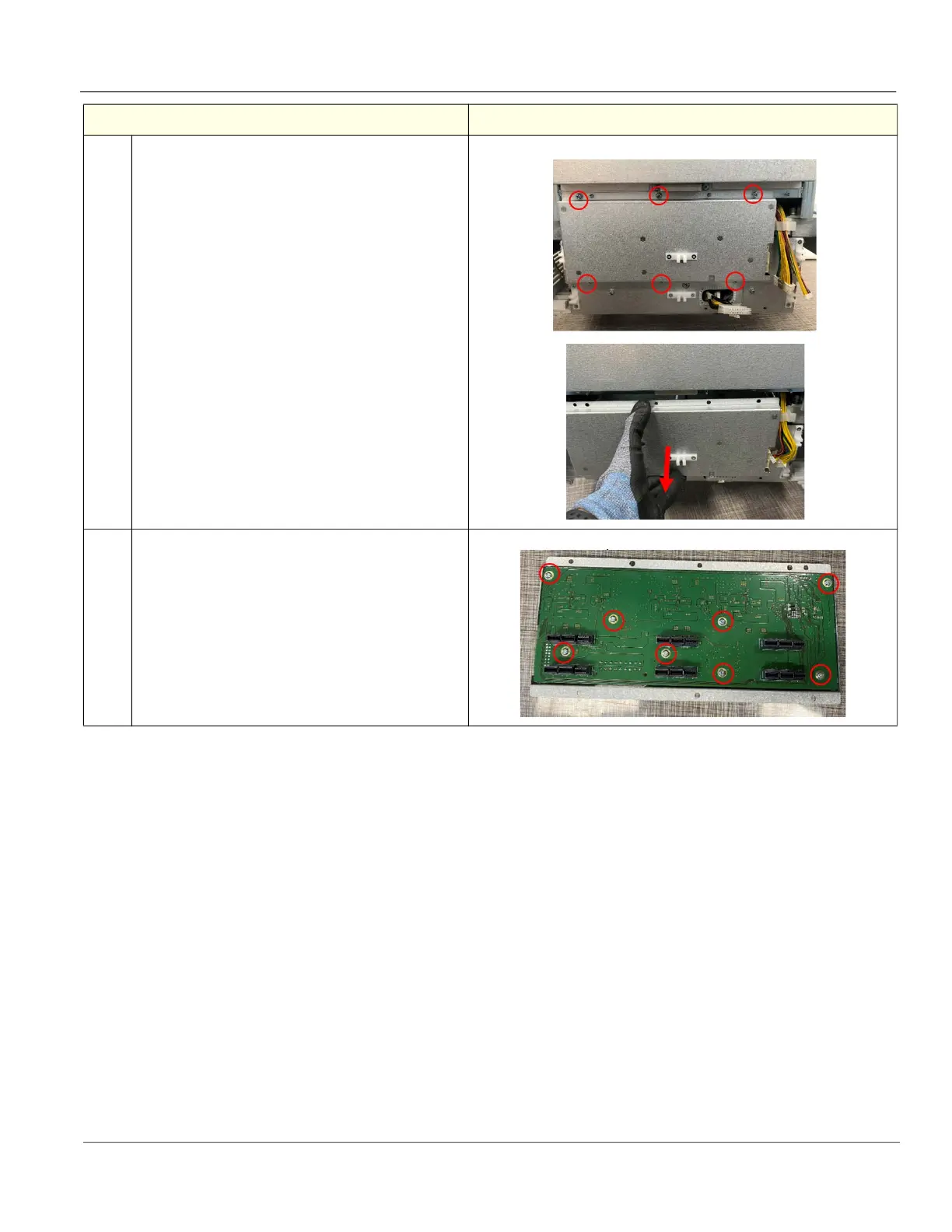

5. Unscrew 6 screws to remove the UBC-T Assy from
the console.
6. Unscrew 8 screws to remove the Unity BBC Board Fix
Brkt.
Steps Corresponding Graphic
