10-1-4 Grounding points
There are several grounding points on the LOGIQ Totus.
These grounding points (ESD receptacles) must be used when an ESD wrist strap is used during
servicing of the LOGIQ Totus.
The ground stud near the circuit breaker and ON/OFF button is also a grounding point..

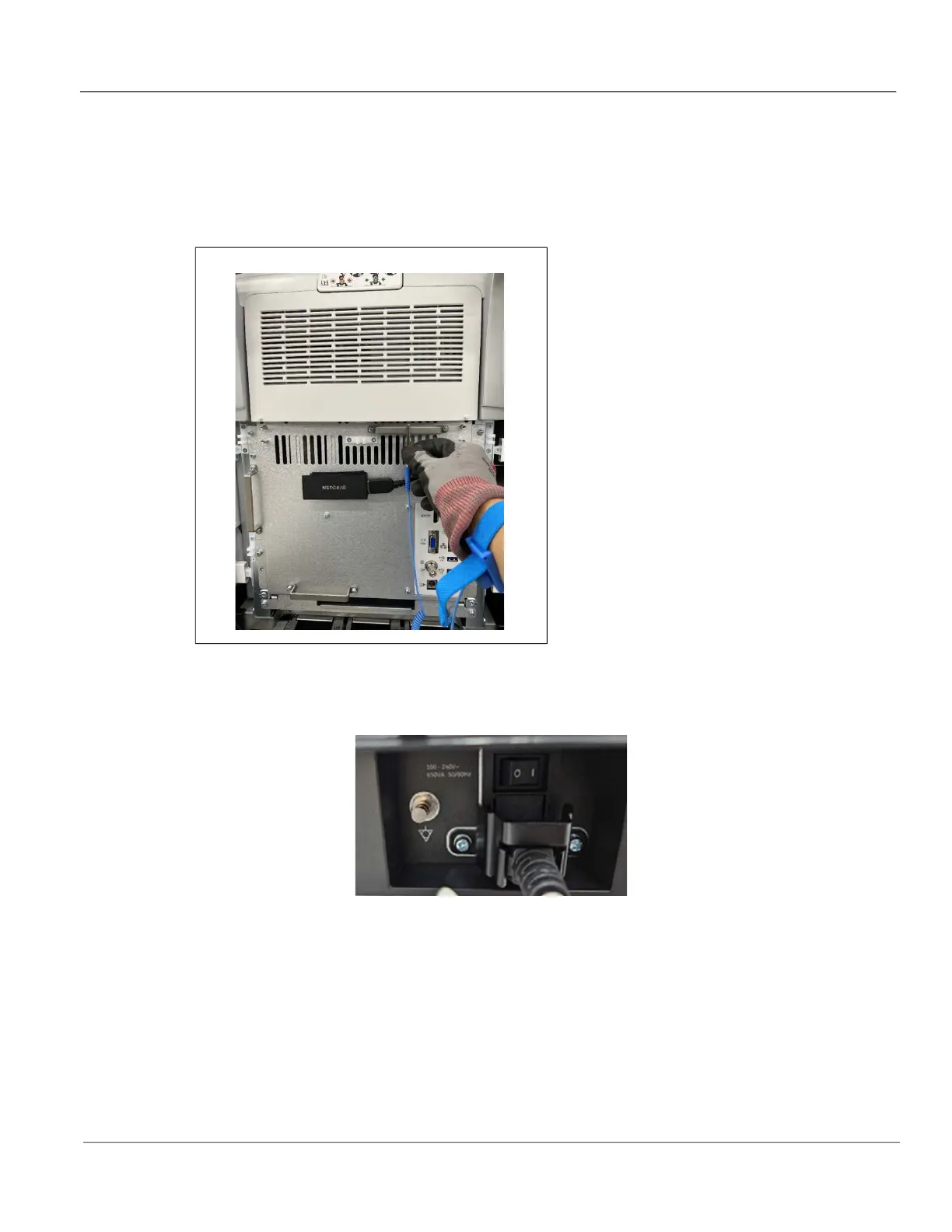

Figure 10-1 ESD Receptacles
Figure 10-2 LOGIQ Totus Main Power Supply Grounding Point
