10 - 18 Section 10-4 - System Maintenance
2.) Release 3 snap fits to remove the Unity Air Filter Rear from the Rear Cover Mid Assy-T.

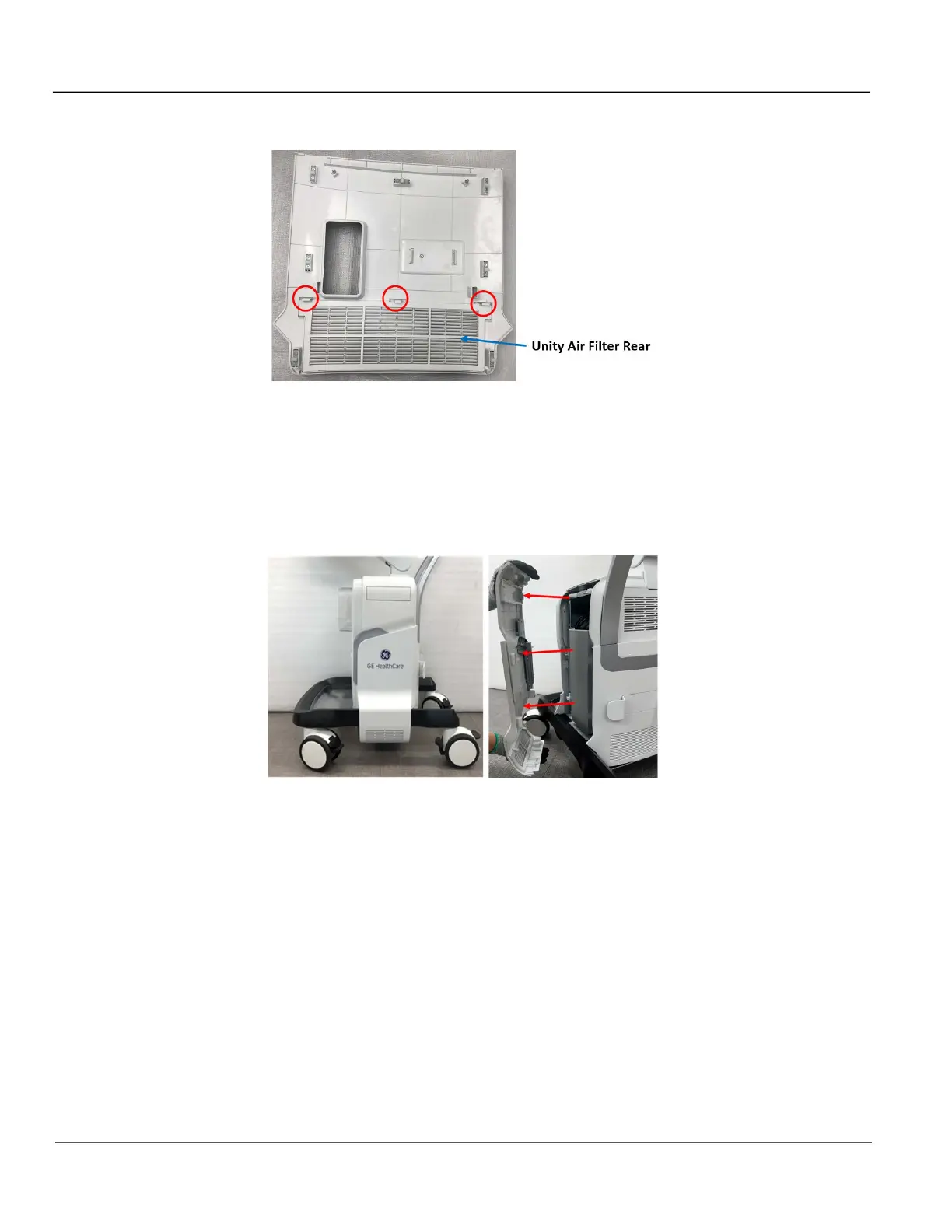

Figure 10-4 Release 3 snap fits to remove the Unity Air Filter Rear from the Rear Cover Mid Assy-T
3.) Dust the filter with a vacuum cleaner and/or wash it with a mild soapy solution. If washed, rinse and
dry the filter before re-installation.
4.) Re-install the air filter into rear cover and assemble the Rear Cover Mid Assy-T.
5.) Pull the bottom side of the T2 Side Cover R Assy to remove from the console.
Figure 10-5 Pull the bottom side of the T2 Side Cover R Assy to remove from the console.
