Chapter 10 Care & Maintenance 10 - 19
6.) Pull the bottom side of the T2 Side Cover L Assy to remove from the console.

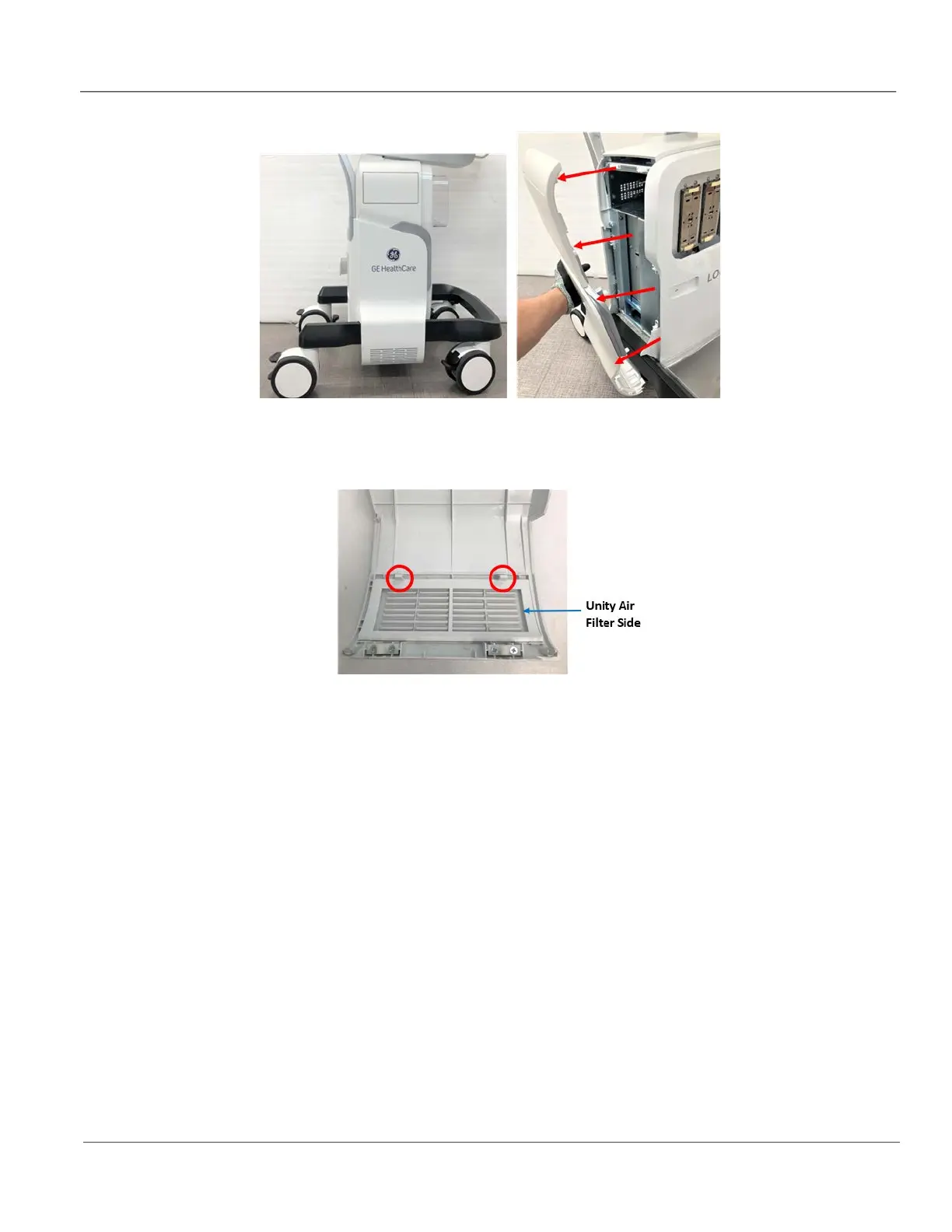

Figure 10-6 Pull the bottom side of the T2 Side Cover L Assy to remove from the console.
7.) Release 2 snap fits to remove the Unity Air Filter Side from the T2 Side Cover L/R Assy
Figure 10-7 Release 2 snap fits to remove the Unity Air Filter Side from the T2 Side Cover L/R Assy
8.) Dust the filter with a vacuum cleaner and/or wash it with a mild soapy solution. If washed, rinse and
dry the filter before re-installation.
9.) Re-install the air filter into side cover and assemble the T2 Side Cover L/R Assy.
NOTE: For your convenience or if the air filter is too dirty, replacement filters are available. Refer to
Chapter 9 for the air filter replacement part number.
10-4-14 Probe maintenance
Refer to “Care and Maintenance” in Chapter 11 of the LOGIQ Totus Basic User Manual for instructions,
or the probe’s User Manual/Probe Care Card for probe maintenance, checks, cleaning, and disinfecting
instructions.
Ultrasound Probe Web Site for find Compatible Cleaning, Disinfection & Gel Products: https://
www.gehealthcare.com/products/ultrasound/ultrasound-transducers
10-4-15 VNAV maintenance
Refer to “VNAV Cleaning Requirements” in Chapter 11 of the LOGIQ Totus Basic User Manual for
instructions.
