GE MEDICAL SYSTEMS
DIRECTION 5184024-100, REVISION 5 LOGIQWORKS BASIC SERVICE MANUAL
3-74 Section 3-5 - Configuration
3-5-1-3-2 Set up your system for true dual graphic card use (based on Dell 360)

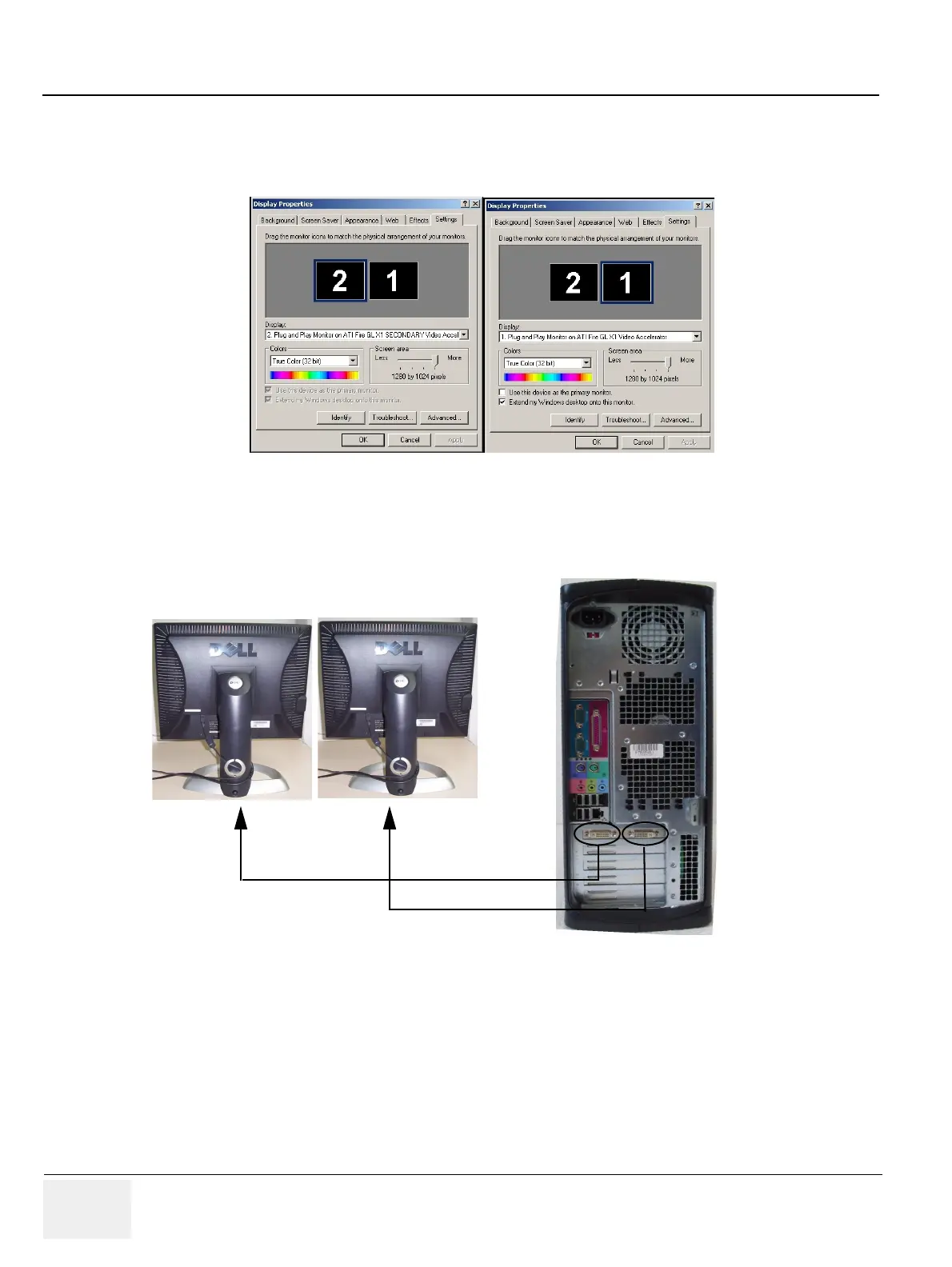

Figure 3-62 Dual Monitor Configuration for True Dual Graphic Card
Figure 3-63 Dual Monitor connection for ATI True Dual Graphic Card
Port one
Port two
To Next Page
