GE MEDICAL SYSTEMS
D
IRECTION 5184024-100, REVISION 5 LOGIQWORKS® BASIC SERVICE MANUAL
Chapter 5 Components and Functions (Theory) 5-39
5-5-7 Image Quality
The Image Quality page is intended to contain tools for troubleshooting image quality issues.
5-5-8 Calibration
The Calibration page is intended to contain tools used to calibrate the system.

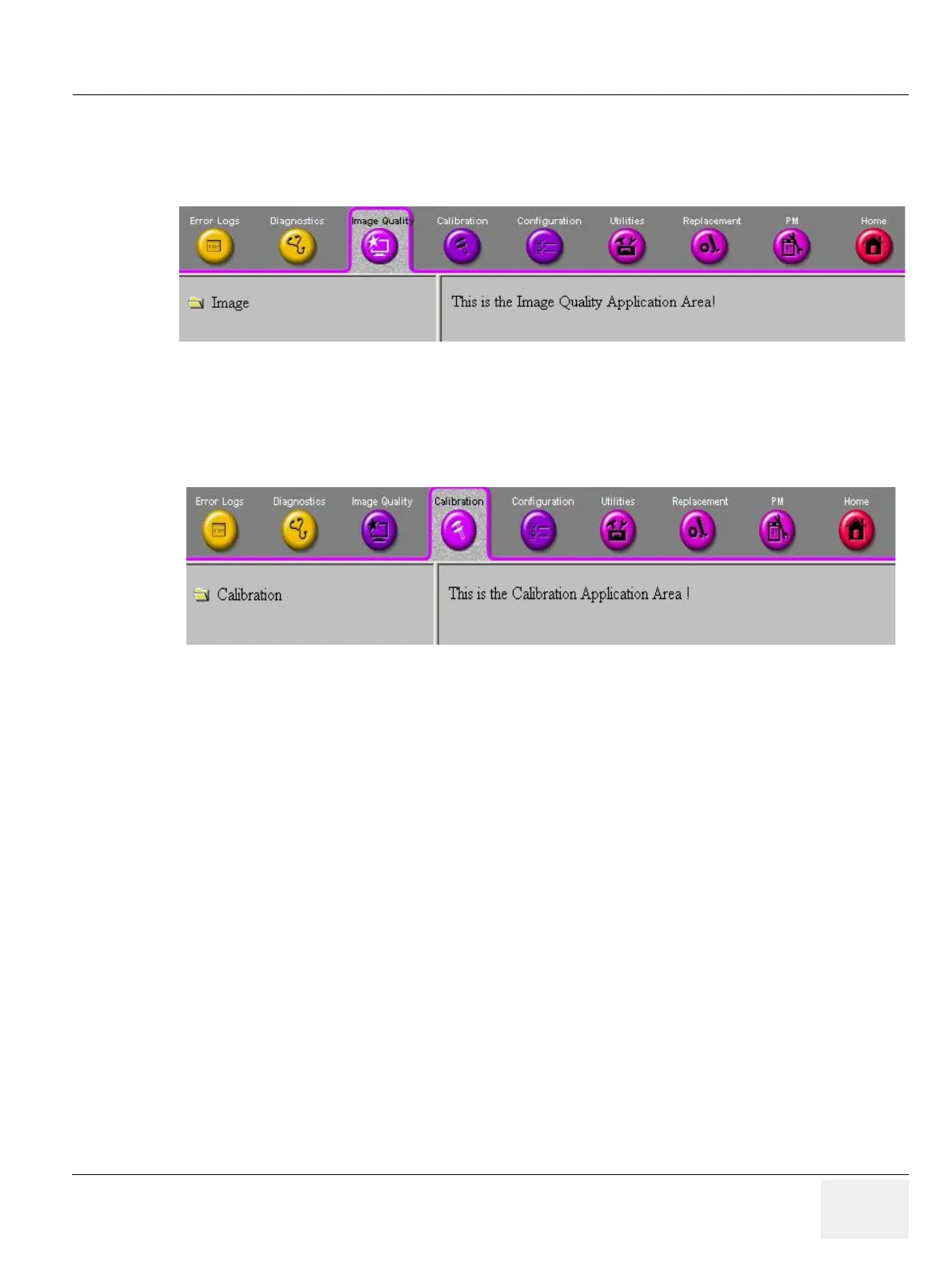

Figure 5-24 Image Quality Page
Figure 5-25 Calibration Page
