DIRECTION 5184024-100, REVISION 5 LOGIQWORKS BASIC SERVICE MANUAL
5-20 Section 5-4 - Software Theory
5-4-1 Software Theoretics (cont’d)

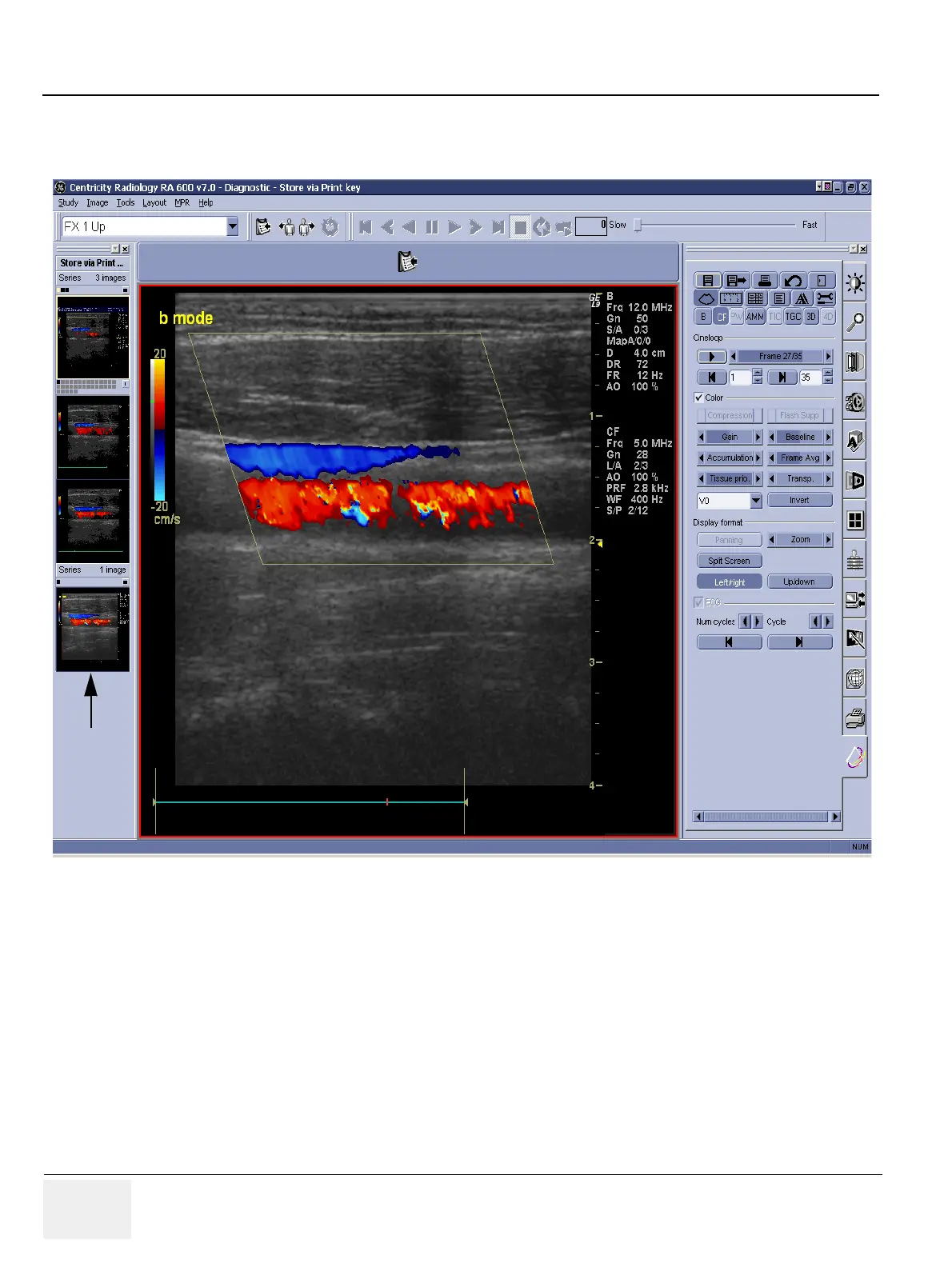

Figure 5-13 Pictorial Index after Storing an image from the TruAccess plugin
New series
containing
Secondary
Capture image
stored from
within the
plugin
