GE MEDICAL SYSTEMS
DIRECTION 5184024-100, REVISION 5 LOGIQWORKS BASIC SERVICE MANUAL
8-10 Section 8-2 - FRU Replacement Procedure
8-2-5 Modem Replacement Procedure
8-2-5-1 Modem of Dell 340 and Dell 360
8-2-5-1-1 Preparations
• Shut Down and turn Off the Workstation and all its parts as described.
8-2-5-1-2 Modem Removal
1.) Switch Off the Modem
2.) Disconnect the phone cable from the wall jack.
3.) Disconnect the DC Power cable.
4.) Disconnect the Signal cable to the PC.
5.) Remove the Modem.

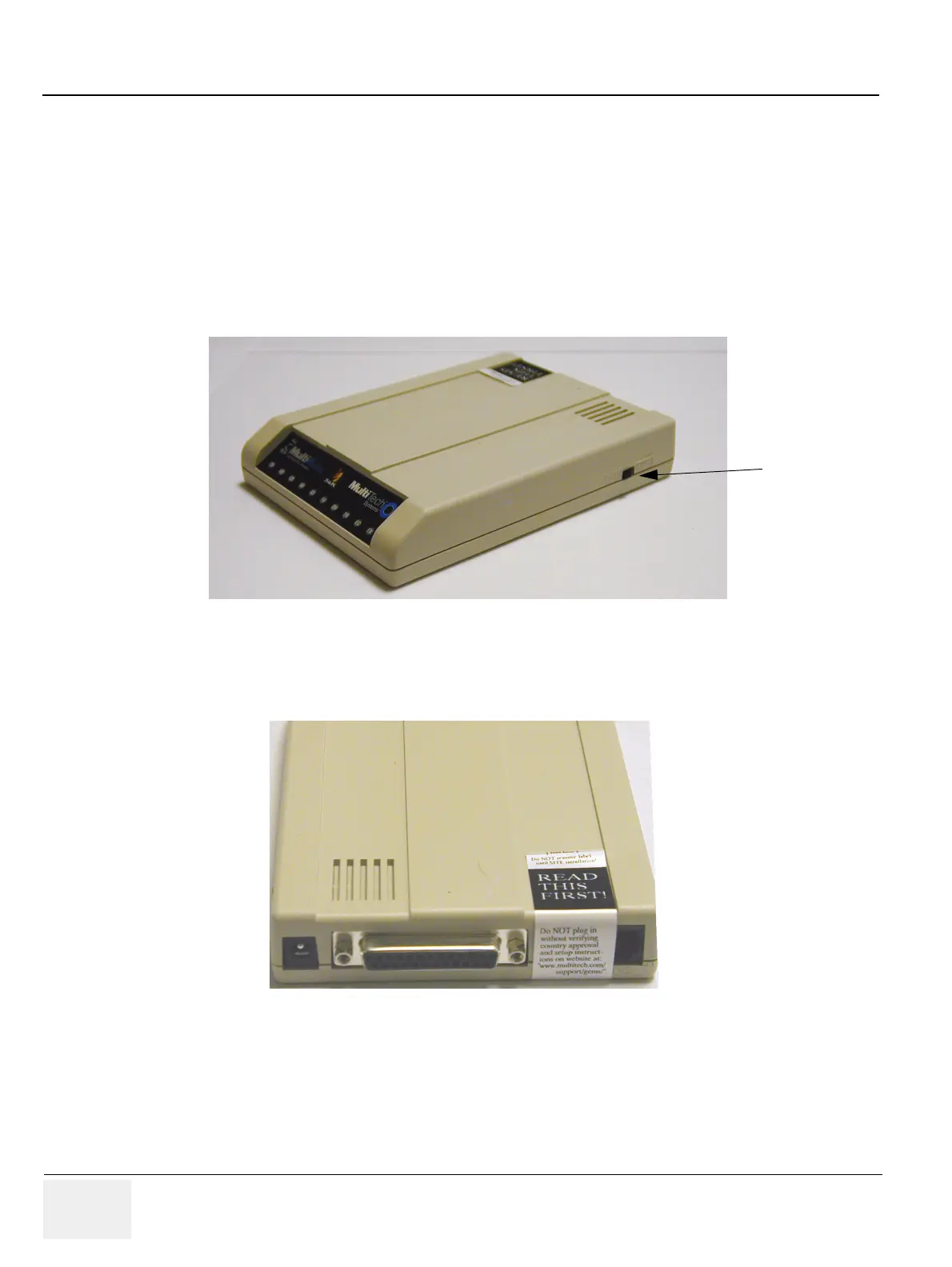

Figure 8-9 Modem showing ON/OFF switch
Figure 8-10 Modem Rear connections
ON/OFF
