GE MEDICAL SYSTEMS
DIRECTION 5184024-100, REVISION 5 LOGIQWORKS BASIC SERVICE MANUAL
2-12 Section 2-3 - Facility Needs
2-3-3 Desirable Features (cont’d)

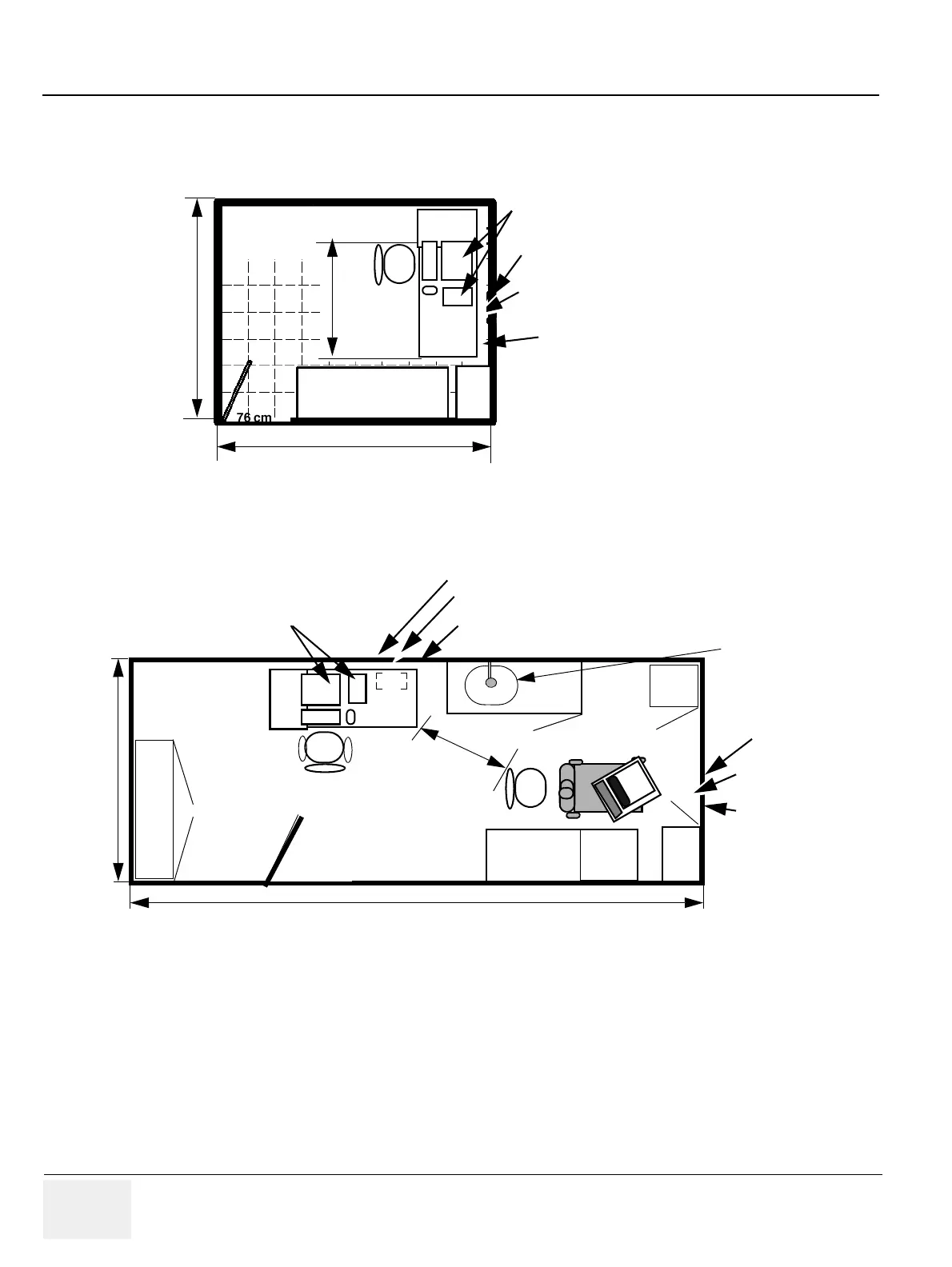

Figure 2-1 Minimum room needs for LOGIQworks
Figure 2-2 Suggested Maximum Room with LOGIQworks and Ultrasound Scanner
3 to 4 dedicated Power outlets
Vivid 3
A dedicated Ethernet network wall outlet
Work Station parts
A dedicated Analog Telephone jack
1m14cm
304.8 cm
243,84 cm
A dedicated Power
outlet
A dedicated Ethernet
network wall outlet
LOGIQworksparts
A dedicated Analog
Telephone jack
3 to 4 dedicated Power outlets
A dedicated Ethernet network wall outlet
A dedicated Analog Telephone jack
Hot & Cold water
609.6 cm
243,84 cm
105cm
1.5m
