3-4-1-2 Required Space for LOGIQworks Installation (cont’d)

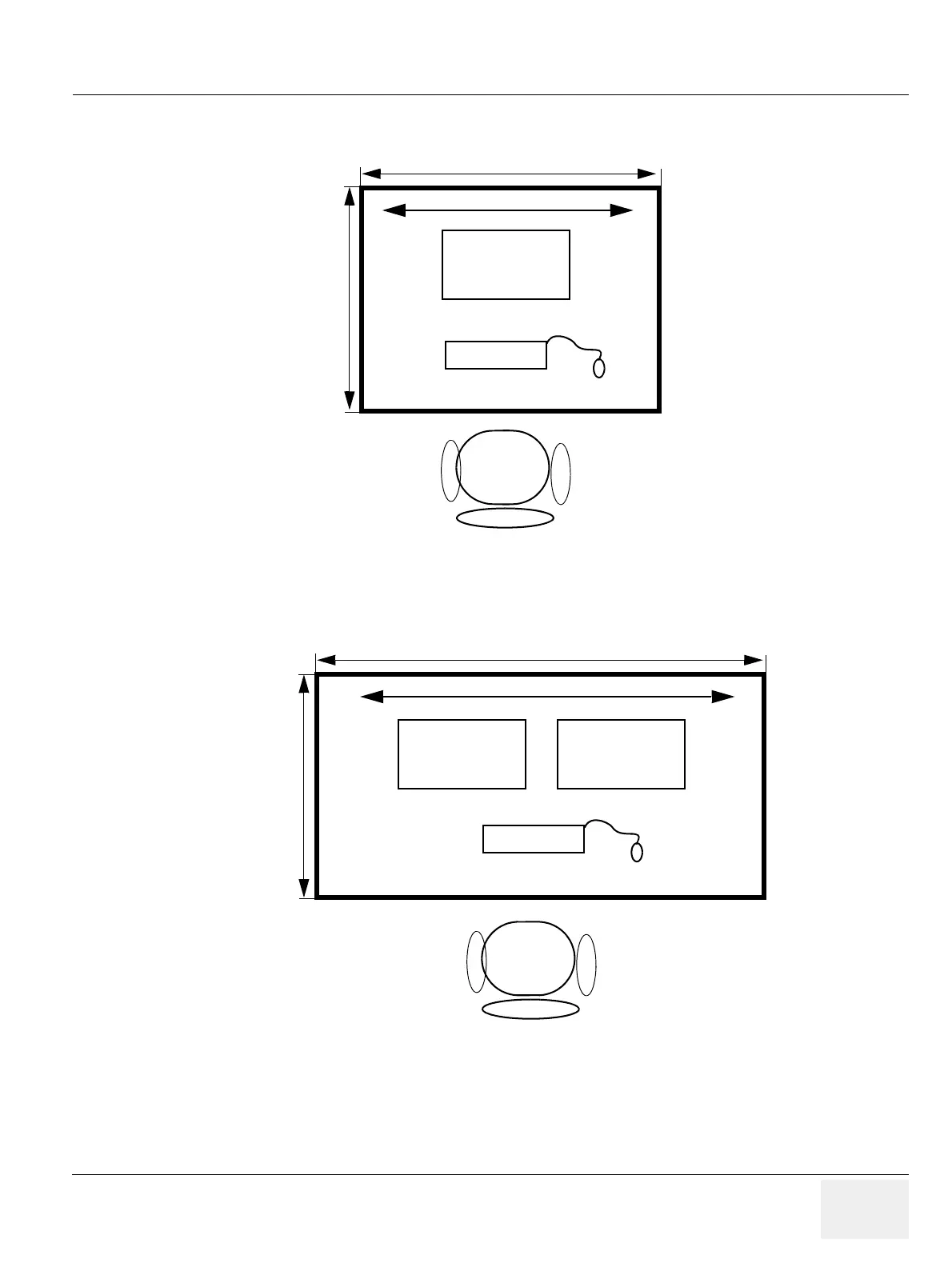

Figure 3-21 Required Space for System with 1 LCD Monitor
Figure 3-22 Required Space for System with 2 LCD Monitors
min. 80
min. 80cm
recommended 100 cm
60 cm
LCD 1
Keyboard
Mouse
min. 120 cm
min. 80cm
recommended 100 cm
100 cm
LCD 1
LCD 2
Keyboard
Mouse
