5. Disconnect the U-shaped joint of brake main pump
lever
(a) Release fixing screw cap of lever U-shaped joint.
(b) Disassemble locking pin of U-shaped joint and lever pin of
brake main pump.
6. Disassemble left front wheel

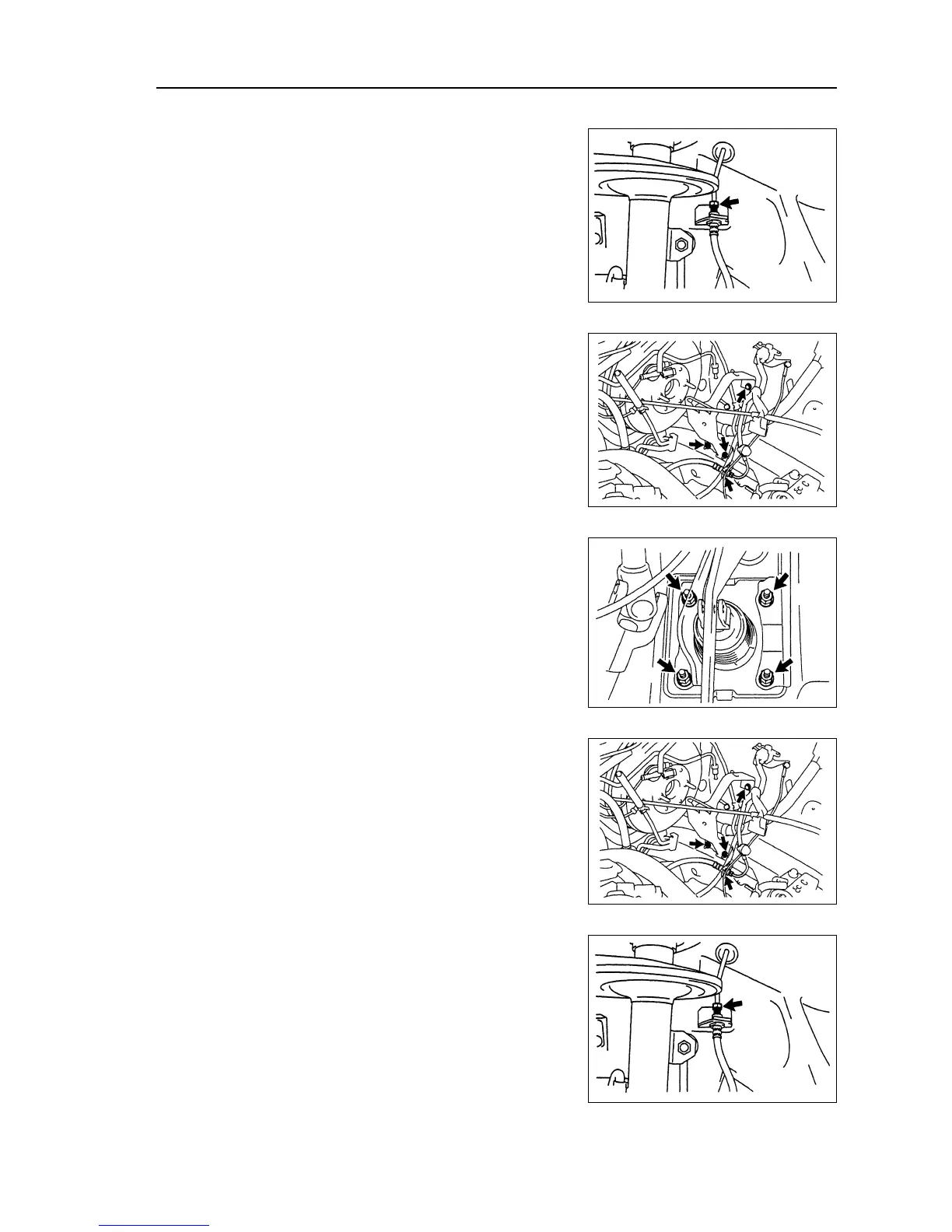

7. Disassemble vacuum booster
(a) Use special tool and wrench to disassemble brake hose of
left front wheel.
(b) Disassemble the bolts, two screw caps and activated car-
bon canister bracket.
(c) Disassemble vacuum hose on vacuum booster.
(d) Disassemble four screw caps and U-shaped joint.
(e) Take out vacuum booster and gasket.
8. Assemble vacuum booster with brake pump assem-
bly [64000164]
(a) Assemble U-shaped joint on booster lever.
(b) Assemble new gasket and vacuum booster with four nuts.
Torque: 13 N
⋅⋅
⋅⋅
⋅m
(c) Connect vacuum hose to vacuum booster.
(d) Use the bolts and nuts to assemble carbon canister bracket.
Torque: 5.4 N
⋅⋅
⋅⋅
⋅m
(e) Use special tool and wrench to connect brake hose of left
front wheel.
Torque: 15
±±
±±
± 2 N
⋅⋅
⋅⋅
⋅m
9. Assemble left front wheel
Torque: 103
±±
±±
± 10 N
⋅⋅
⋅⋅
⋅m
Brake--Vacuum booster assembly
139
