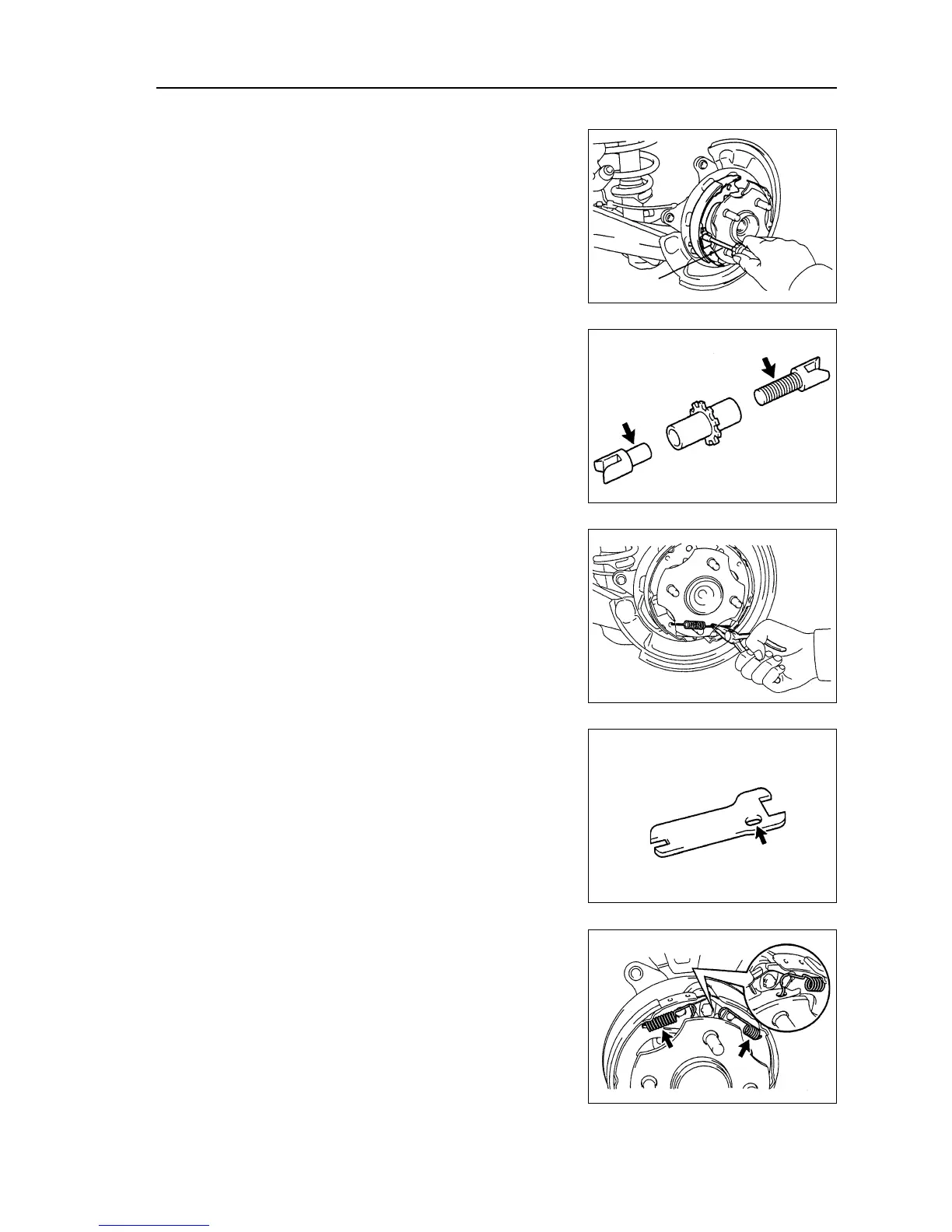

15. Assemble parking brake exterior shoe assembly
(LH).
Use special tool to assemble parking brake shoe with parking
shoe, localizing spring and pin.
16. Assemble parking brake shoe adjustor.
(a) Spread high temperature lubricating grease on adjusting
bolt.
(b) Assemble parking brake shoe adjustor.
(c) Use needle-nosed pliers to assemble return spring.
17. Assemble support lever of parking brake shoe (LH).
(a) Spread high temperature lubricating grease on contacting
surface between shoe support lever and tension spring.
(b) Assemble support lever of parking brake shoe.
(c) Use needle-nosed pliers to assemble upper two tension
springs.
Parking brake--Parking brake assembly
