18. Check the assembly of parking brake system.
Check every part after assembly.
Note: do not attach oil dirt or lubricating grease on contacting surface between shoe friction
sheet and brake drum.
Parking brake--Parking brake assembly
19. Assemble the brake
20. Adjust the clearance of parking brake shoe.
(a) Lock screw cap of shaft hub temporarily.
(b) Disassemble hole plug, then use screw driver to turn the
adjustor until brake drum is locked by shoe.
(c) Return the adjustor for 8 gears.
(d) Check whether shoe has lag.
(e) Assemble hole plug.
21. Assemble rear disk type brake branch pump assem-
bly (LH).
22. Assemble rear wheels.
Torque: 103
±±
±±
± 10N
⋅⋅
⋅⋅
⋅m

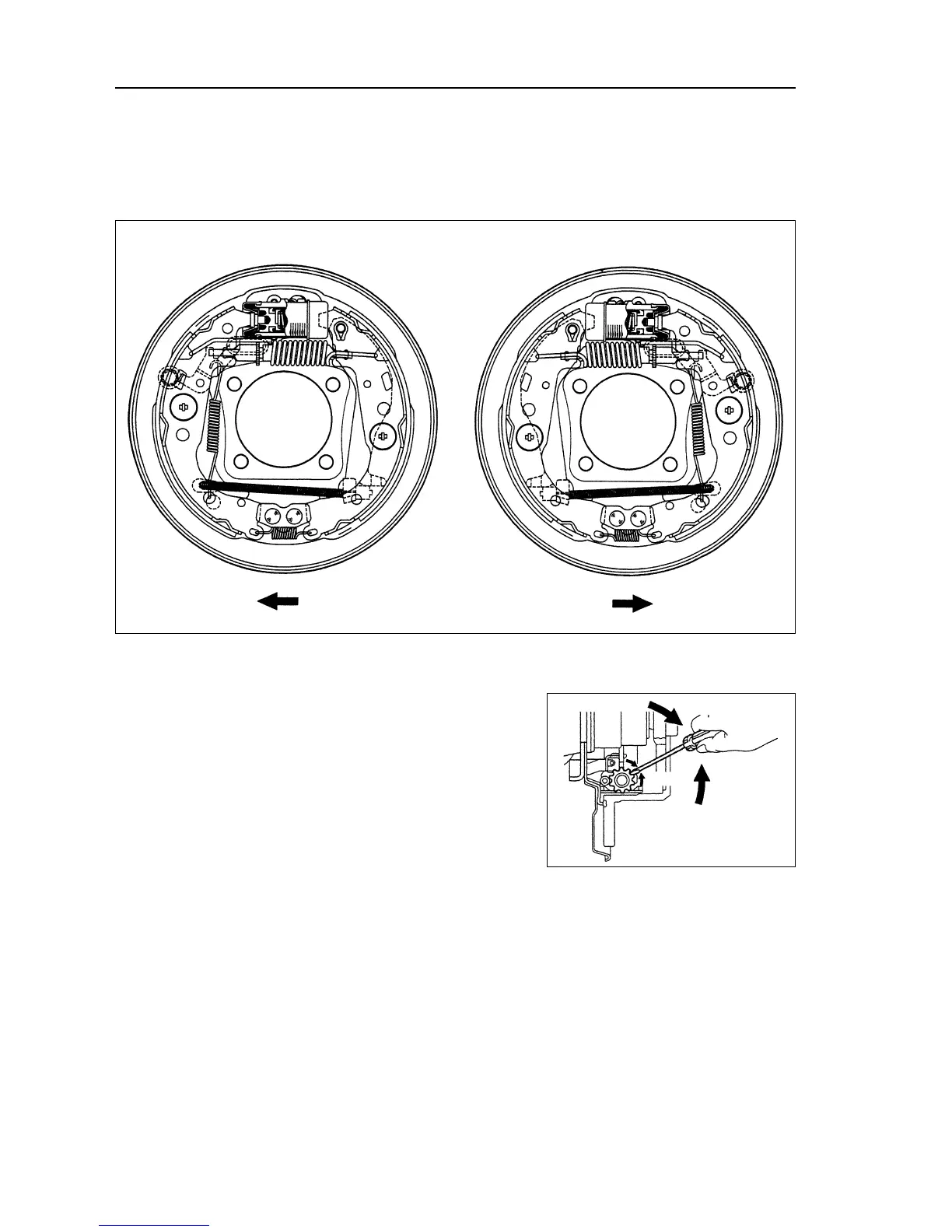

23. Check the travel of parking brake drag lever.
24. Adjust the travel of parking brake drag lever.
Left
Right
Front
Front
Increase the
clearance
Decrease the
clearance
164
