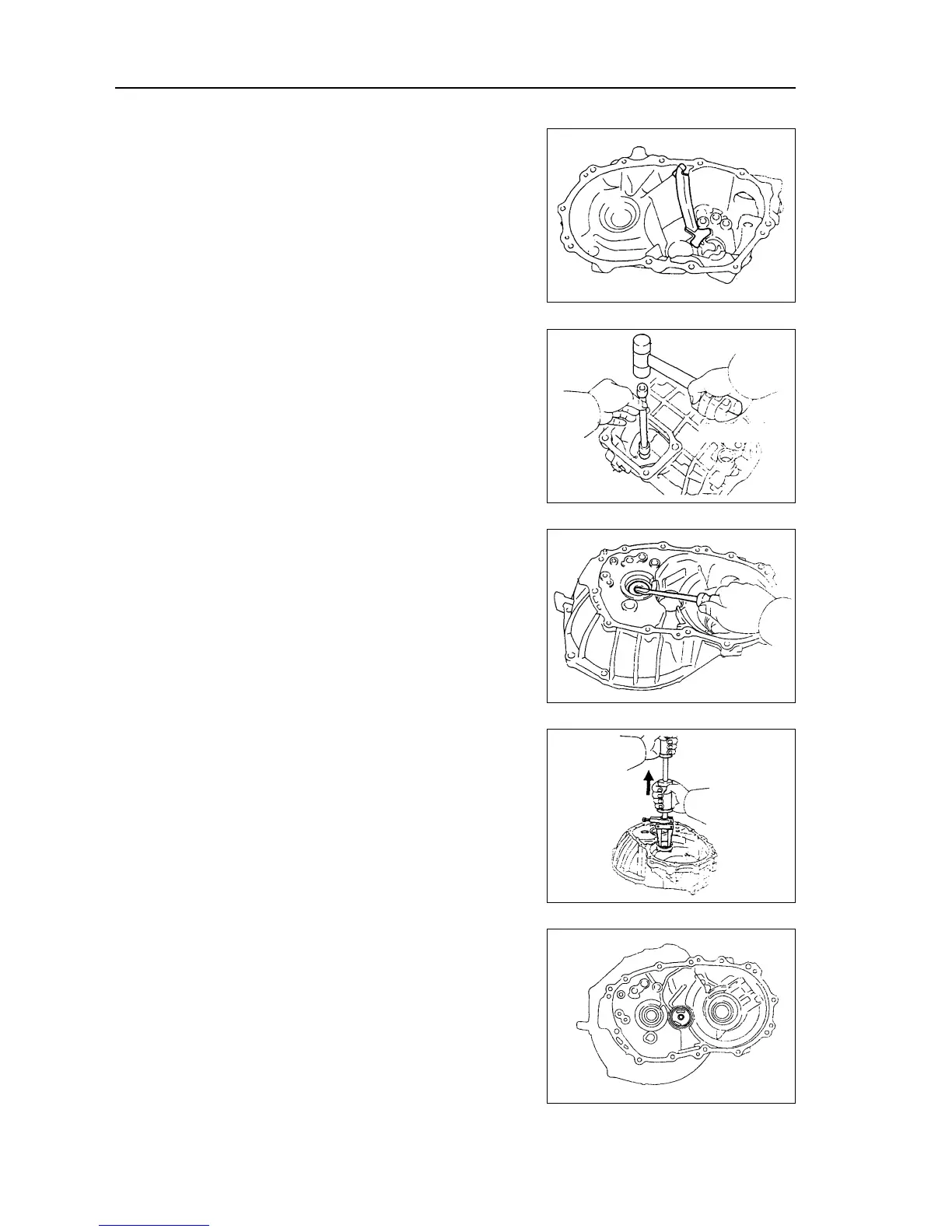

Disassemble lubricating oil pipe.

Take our bushing liking that shown in figure.

Take our oil seal.

Take our exterior ring of tapered shaft with special tool liking

that shown in figure.

Disassemble oil guide cover.

Transmission—Disassemble assembly

 168 
