Five gear

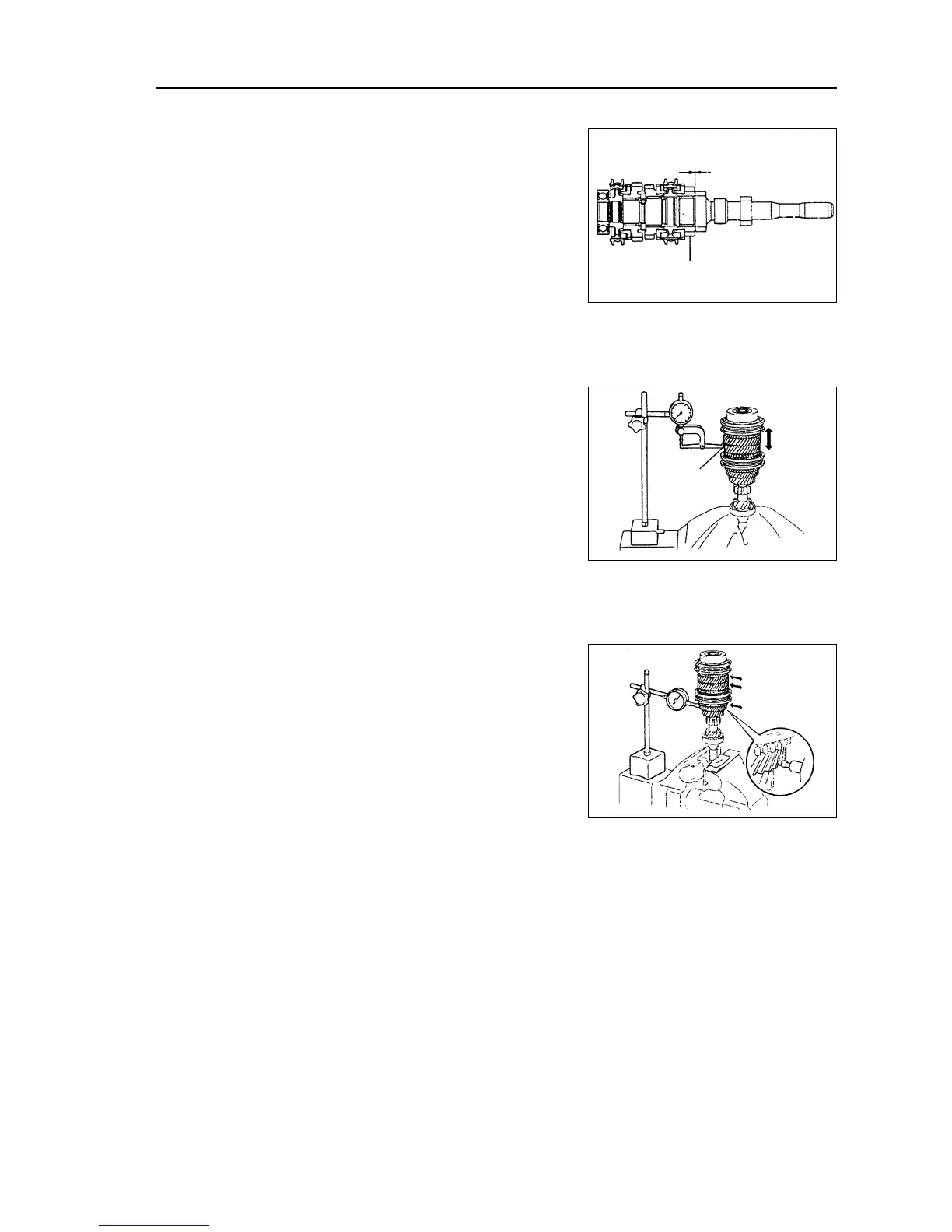

Check the axial clearance of third gear with clearance gauge,
its standard value is: 0.1—0.35 mm.
Check the axial clearance of fifth gear liking that shown in
figure, its standard value is: 0.1—0.50 mm.
Check the radial clearance of forth gear and fifth gear liking
that shown in figure, its standard value is less than 0,058mm.
Transmission—Disassemble assembly
169
