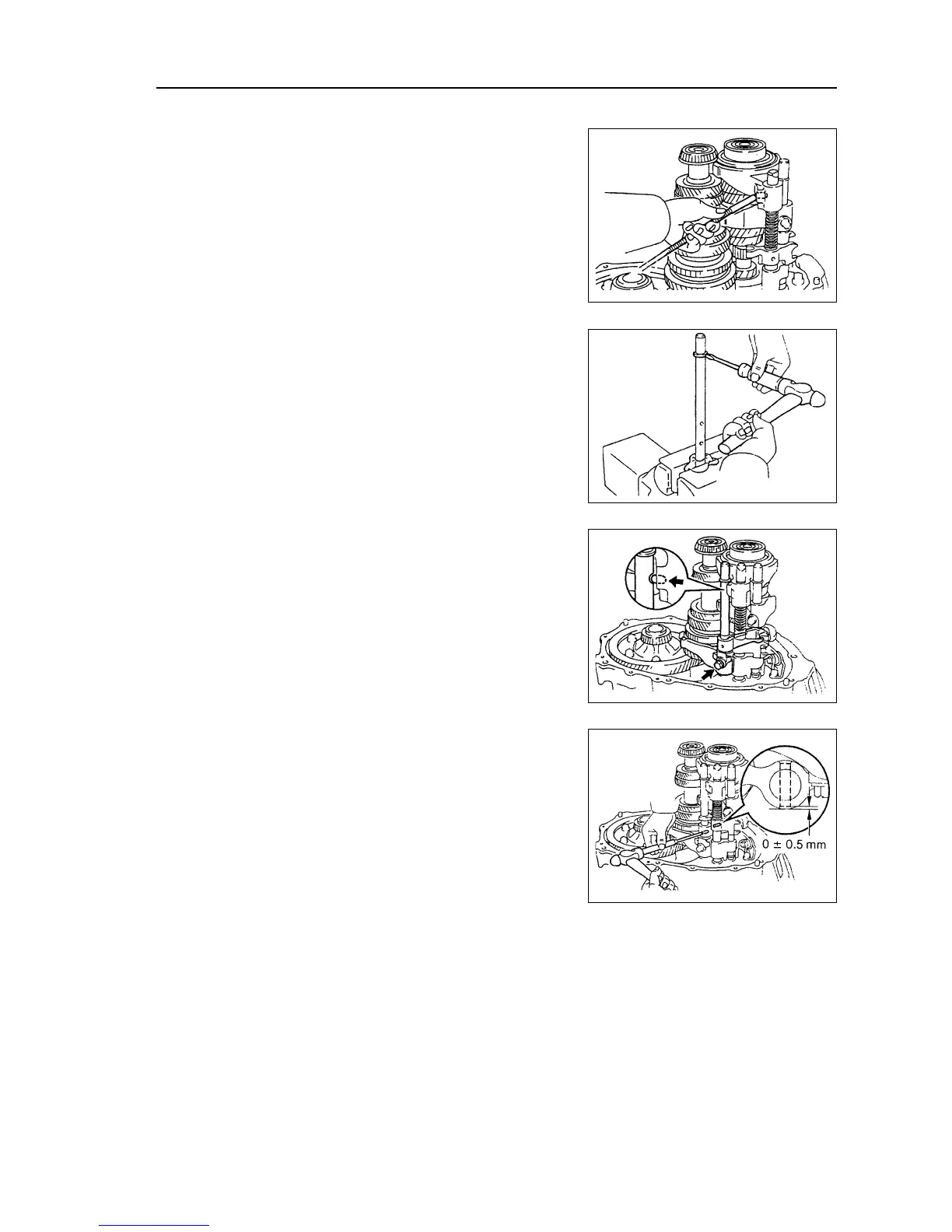

Assemble two new fork shaft clip spring, and assemble inter-
locking pin in the position in figure.
Assemble two new fork shaft clip springs liking that shown in
figure.
Assemble first and second gear fork on fork shaft, and put
fork shaft in first and second gear cover, then assemble first
and second guide block, at the same time, tighten the bolts,
the torque is 16Nm.
Press elastic cylindrical pin in guide block liking that shown in
figure.
Transmission—Disassemble assembly
185
