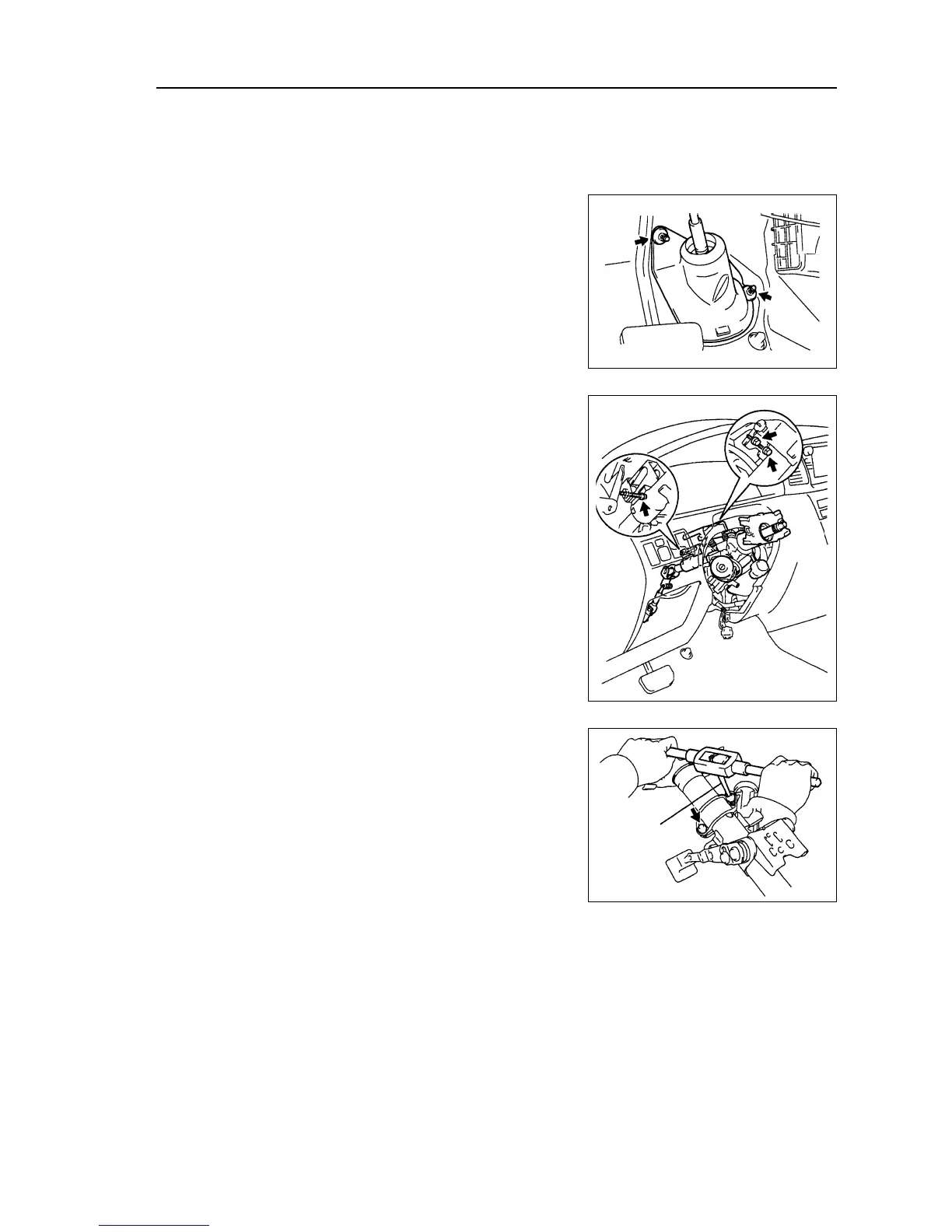

6. Disassemble right combination switch assembly
[67000079] (referring to page 302)
7. Disassemble helix cable assembly (equipping with
SRS)
Note: do not disassemble helix cable or spread lubricat-
ing grease.
8. Disassemble the middle connecting plate of lower
panel [68100006] (referring to page 340)
9. Disassemble dust-proof cover in steering column.
Disassemble two screw caps, then take down dust-proof cover
in steering column.
10. Disassemble steering shaft assembly
(a) Disconnect joint and fixed clap of wiring harness.
(b) Loosen three fixed bolts of steering column assembly.
11. Disassemble the clamp of ignition switch [68000020]
(a) Use central punch to make hole on the central part be-
tween two tapered bolts.
(b) Use 3-4 mm aiguille to drill two bolts.
(c) Use bolt screwdriver to disassemble two bolts, then take
down ignition switch clamp.
12. Disassemble electronic anti-stealing loop assem-
bly (assembling with enter illumination system)
[67000009].
195
