Steering column--Steering system

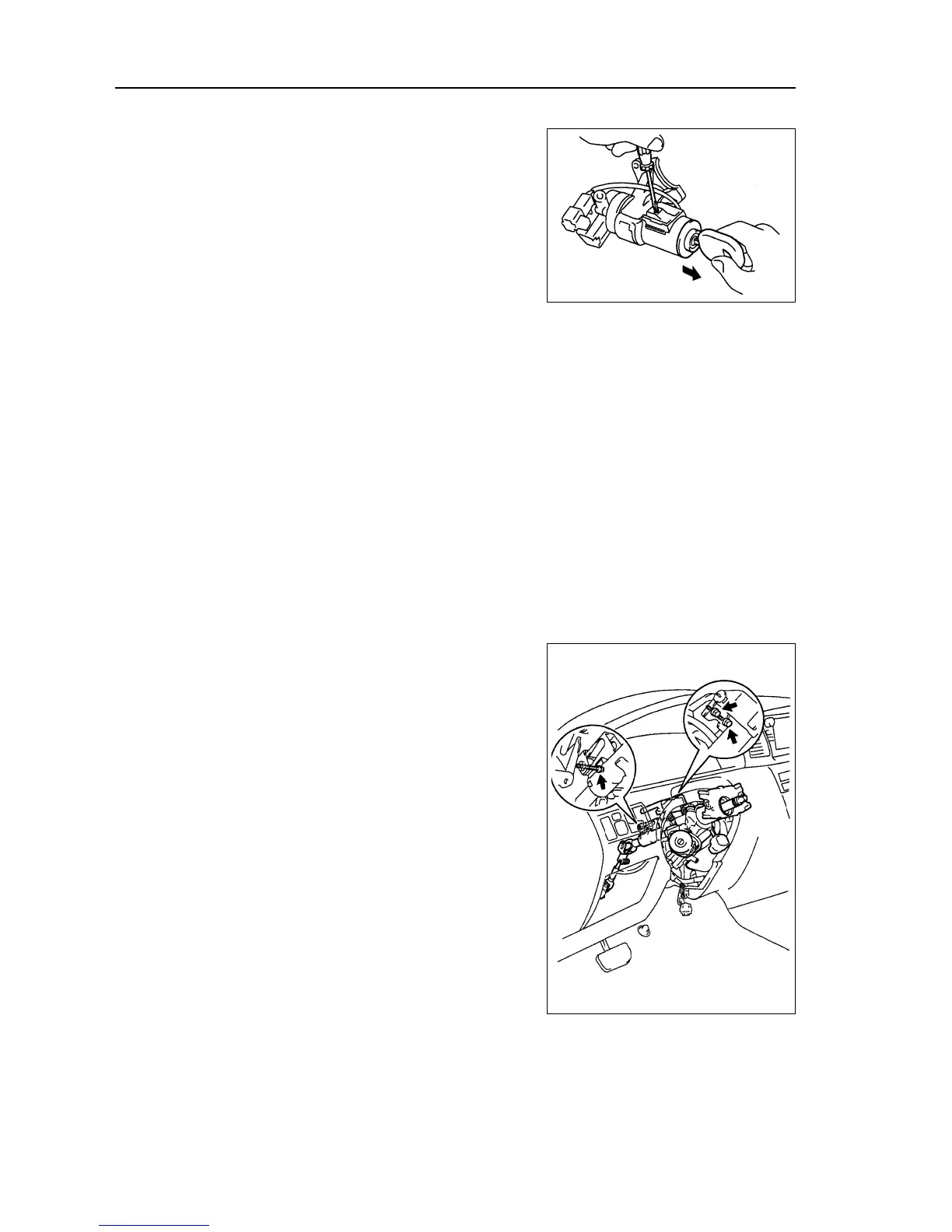

13. Disassemble ignition switch key tank assembly
(a) Put ignition switch key tank on ACC position.
(b) Pull down stop pin and pull out key tank assembly with
right-angled screwdriver.
14. Disassemble ignition switch assembly
Disassemble two screws, and take down ignition switch
assembly.
15. Assemble ignition switch with locking core and key
assembly [68000019]
Assemble ignition switch with locking core and key assembly
with two screws.
16. Assemble ignition switch key tank assembly
(a) Make sure ignition switch key tank assembly locates at
ACC position.
(b) Assemble ignition switch key tank.
17. Steering locking function
(a) When taking out the key, check whether steering locking
organization is locked.
(b) When inserting the key, and turning to ACC, check whether
the steering locking organization is released.
18. Assemble electronic anti-stealing loop assembly
[67000009]
19. Assemble ignition switch clamp [68000020]
20. Assemble steering shaft assembly
(a) Assemble steering column assembly with three bolts.
Torque: 21 ± 2 Nxm
196
