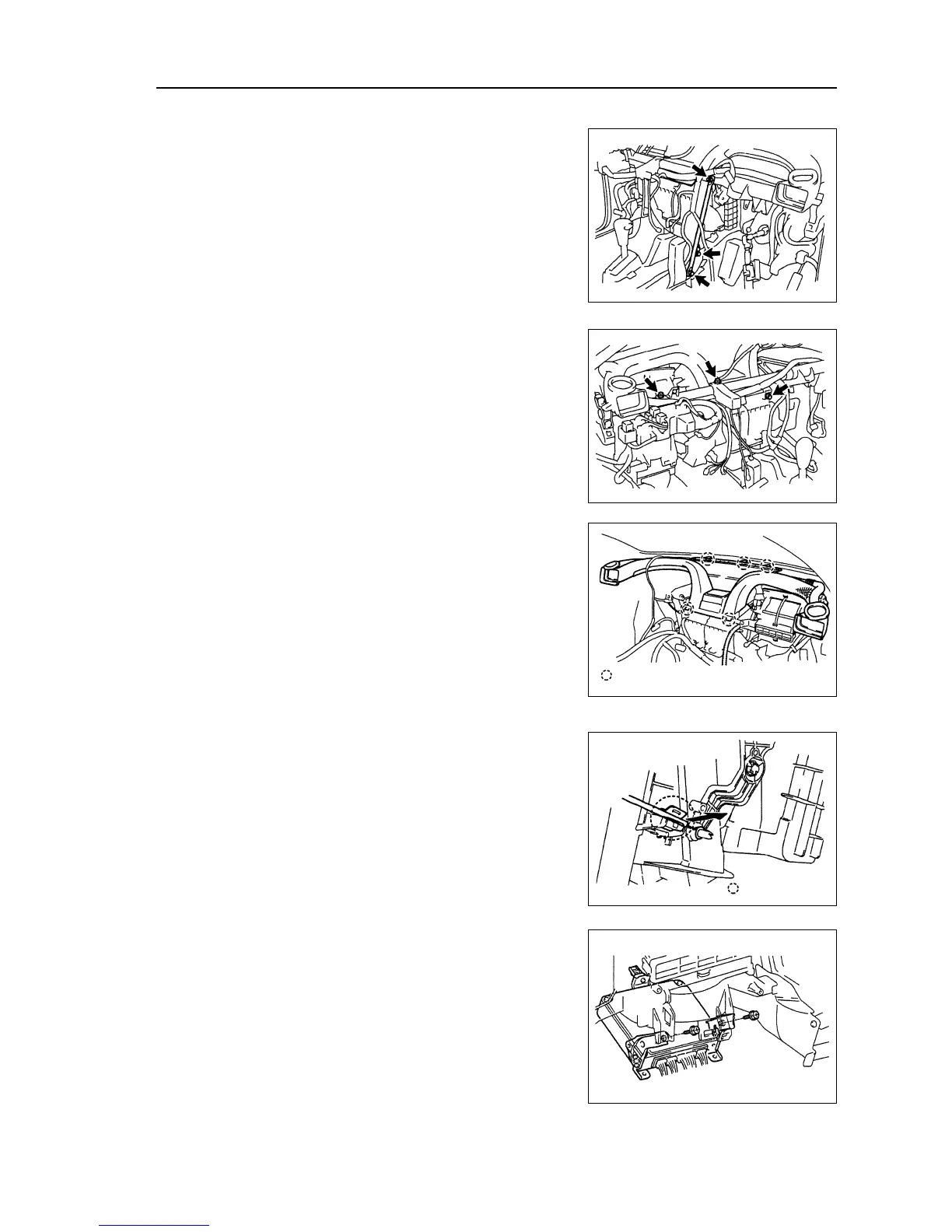

39. Disassemble lower mounting bracket of panel frame-
work [68000074].
(a) Disassemble the screw and disconnect wiring harness.
(b)Disassemble the screw cap, bolt and lower assemble
bracket of panel framework.
40. Disassemble panel framework body assembly
[68000070].
(a) Disassemble three bolts and disconnect panel junction box
and joint fixed plug.
(b) Release fixed clamp from panel framework body and dis-
connect the wiring harness.
(c) Disassemble five bolts and panel framework body
assembly.
41. Disassemble wind outlet of Defogger.
Release five fixed claws and disassemble wind outlet of de-
fogger
42. Disassemble control cable assembly of air mixing
flow choke (manual air conditioner).
(a) Disassemble pull cable from fixed clamp.
(b) Disassemble control cable of air mixing flow choke.
43. Disassemble engine ECU.
Disassemble two bolts and disconnect engine ECU.
44. Disassemble air conditioner group assembly.
Disassemble two screw caps, screws, bolts and air condi-
Air conditioner--Air conditioner central heating core assembly
229
Fixing claw
Fixing clamp
