tioner group assembly.

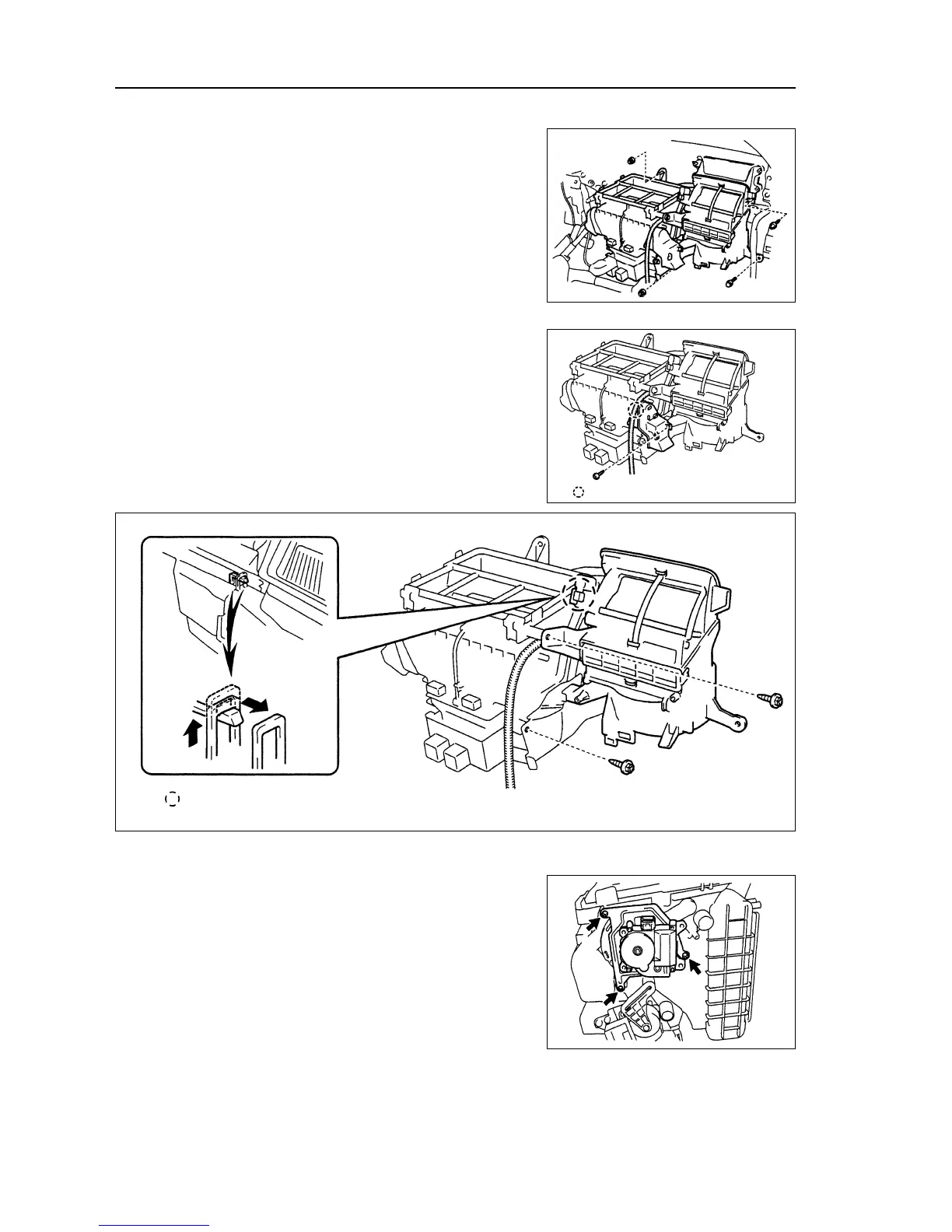

45. Disassemble air conditioner central heating core
assembly.
(a) Disassemble the screw and pull out wind leading pipe.
(b) Disassemble two screws.
(c) Disconnect fixed claw and disassemble air conditioner
central heating core assembly.
46. Disassemble servo motor of module state flow
choke (automatic air conditioner).
Disassemble three screws and servo motor of module state
flow choke.
Air conditioner--Air conditioner central heating core assembly
230
Fixing claw
Fixing claw
