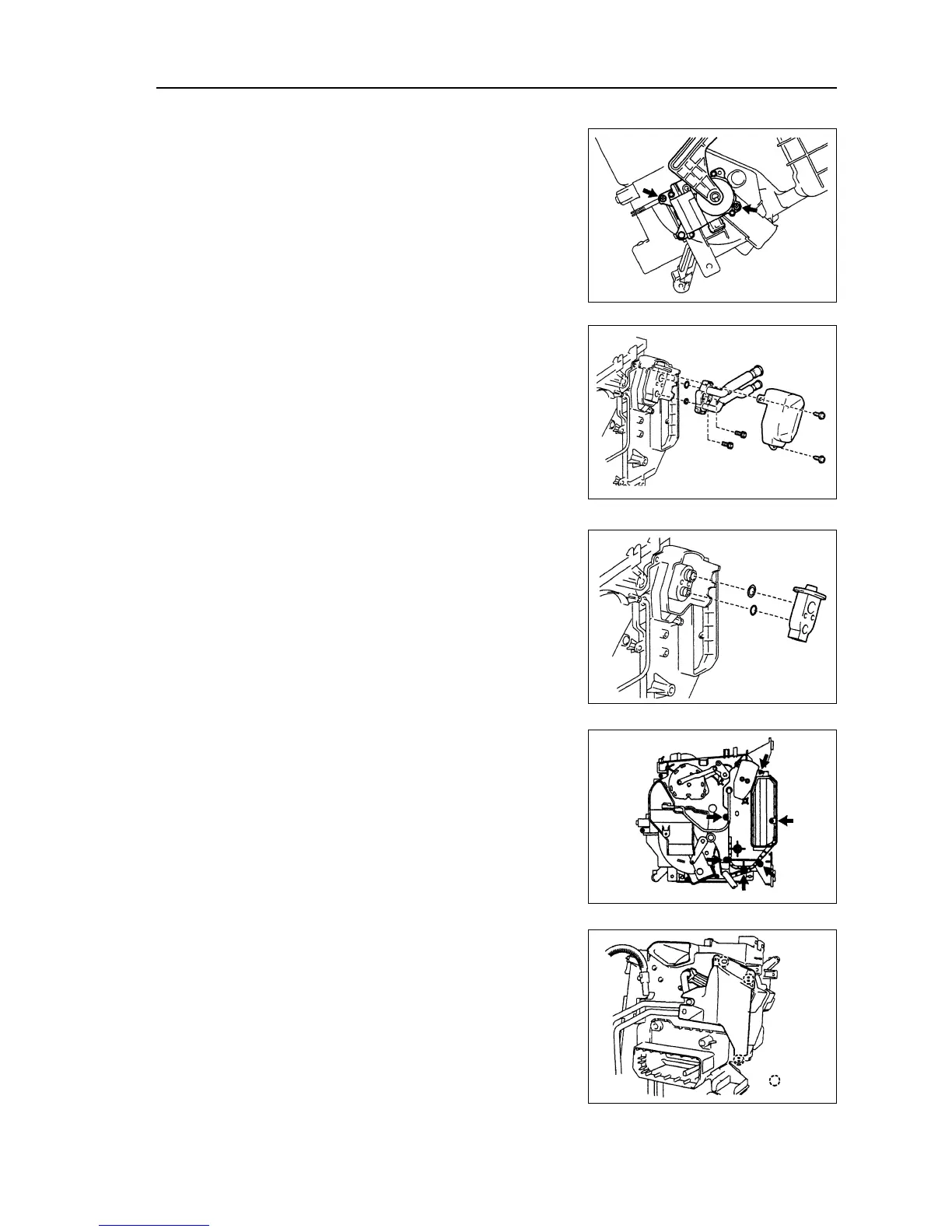

47. Disassemble servo motor of air mixing flow choke
(automatic air conditioner).
Disassemble two screws and servo motor of air mixing flow
choke.
48. Disassemble air conditioner pipeline.
(a) Disassemble two screws and extending cover.
(b) Use planetary wrench (5.0mm) to disassemble two plan-
etary bolts and air conditioner pipeline.
(c) Disassemble two O-shape loops from air conditioner
pipeline.
49. Disassemble expansion valve.
(a) Disassemble expansion valve from air conditioner group.
(b)Disassemble two O-shape rings from air conditioner
pipeline.
50. Disassemble No.1 air conditioning heat sensitive
resistance.
51. Disassemble evaporator.
(a) Disassemble six screws and air conditioning group parts.
(b) Pull out evaporator.
52. Disassemble central heating core.
Disconnect fixed claw and central heating water pipe defend-
ing cover, then pull out central heating core.
Air conditioner--Air conditioner central heating core assembly
Fixing
claw
231
