Light--Light System

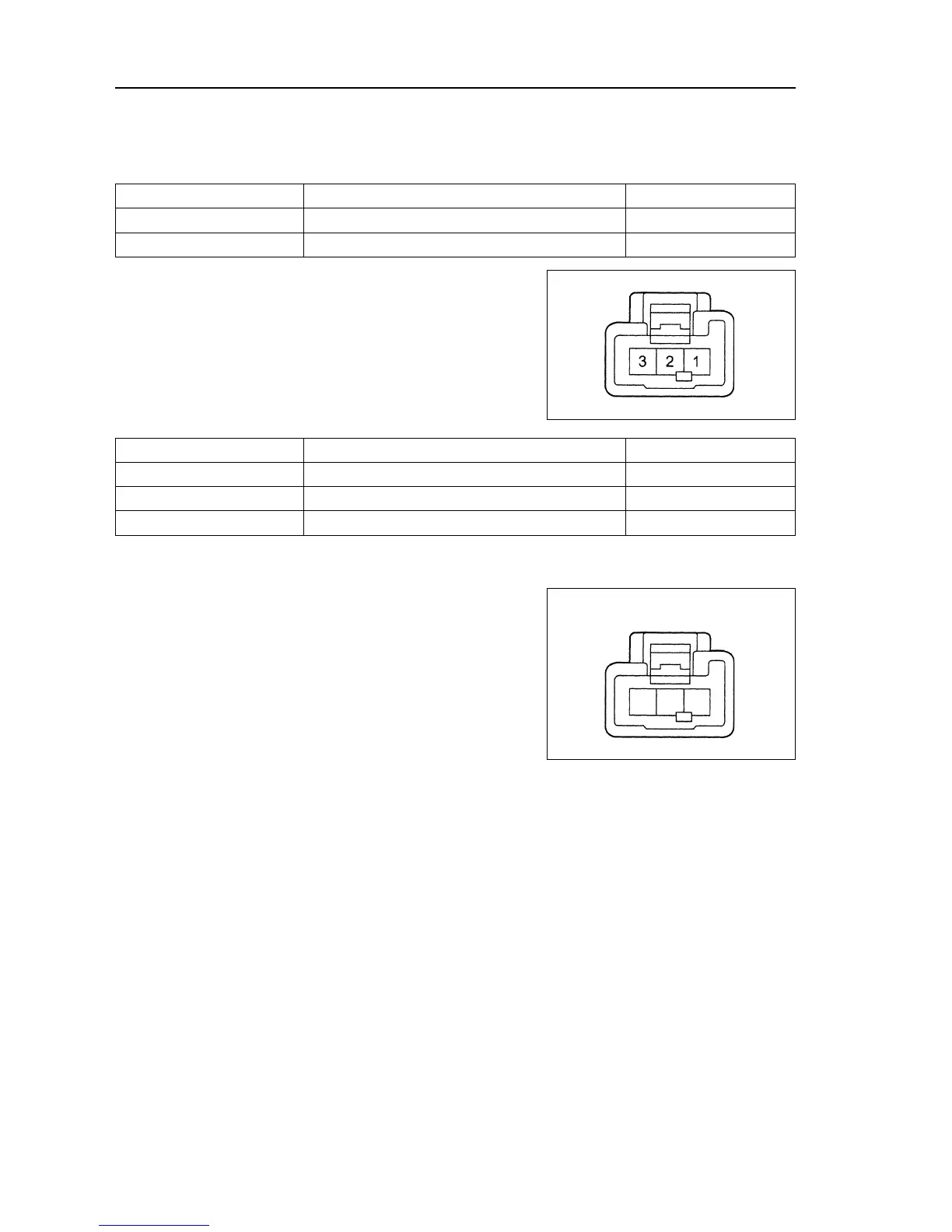

Switch positions Avometer terminals regular situation
OFF 1-2 not conduction
ON 1-2 conduction
(d) Inspect conduction of front fog light switch
(1) Inspect switch on every positions, the conduction among terminals as following table.
Switch positions Avometer terminals regular situation
OFF - not conduction
DOOR 1-2 conduction
ON 2-bodywork earth conduction
2. Interior rear top light assembly [67010006]
(a) Inspect the conduction of interior rear top light
(1) Inspect switch on every position, the conduction among
terminals as following table.
Standard:
3. Room front top light assembly [67010007] (equipped
with electric sunroof [67010009])
(a) Inspect the conduction of room front roof light
(1) Inspect the conduction between terminal 1 and terminal
2,when switch works.
Standard:
ON: conduction
OFF: not conduction
4. Room front top light assembly [67010005](do not
equipped with electric sunroof)
(a) Inspect the conduction of room front roof light
(1) Inspect the conduction between terminal 1 and terminal
2,when switch works.
Standard:
ON: conduction
OFF: not conduction
5. Trunk lighting assemble [67000106]
(a) Inspect the conduction among terminals.
Standard: conduction
6. Inspect the B door pillar control switch assembly
[67000075]
