Light--Light System
(a) Inspect the conduction of B pillar control switch assembly
(1) Inspect the conduction between terminal 1 and bodywork earth, when switch works.
Standard:
ON (when press the switch): conduction
OFF (when un-press the switch): not conduction
7. Inspect the C door pillar control switch assembly [67000076]
(a) Inspect the conduction of C pillar control switch assembly
(1) Inspect the conduction between terminal 1 and bodywork earth,when switch works.
Standard:
ON (when press the switch): conduction
OFF (when un-press the switch): not conduction
8. Trunk light switch assemble [67000073]
(a) Inspect the conduction of Trunk light switch
Standard:
ON (when press the switch): conduction
OFF (when un-press the switch): not conduction

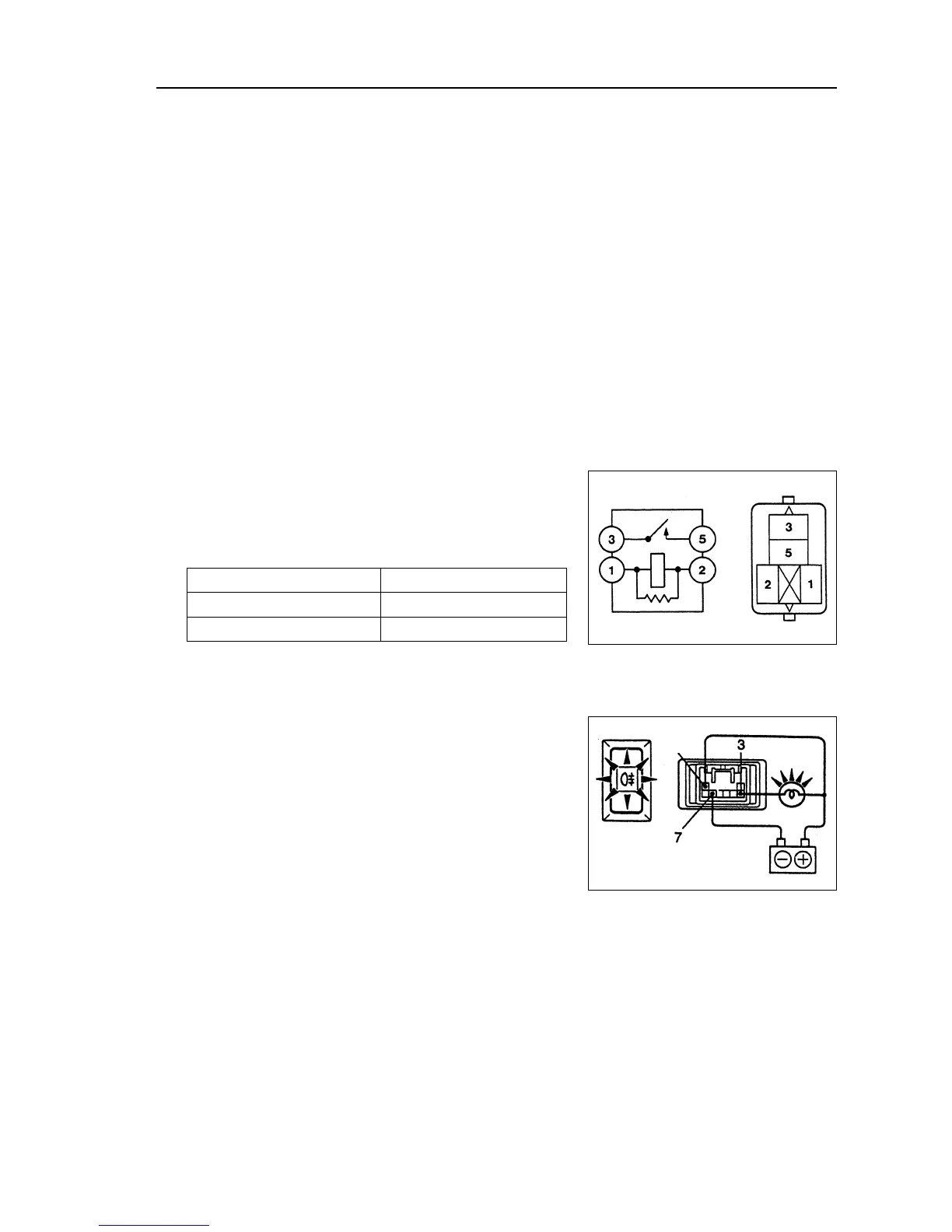

9. Front fog light relay [67000071]
(a) Inspect the conduction of front fog light relay
(1) Inspect the conduction among terminals
Standards:
Avometer terminals regular situations
1-2 conduction
3-5 not conduction
10. Inspect rear fog light switch of instrument block
left switch units [67010003].
(a) Inspect battery’s positive wire connects to terminal 1,nega-
tive connects to terminals 7.
(b) Connect a 3.4W test bulb from battery’s positive wire to
terminal 3.
(c) Inspect lighting switch, indicator light of assembled instru-
ments and test bulb should light. If it does not accord with
regularizations, replace the switch.
11. Inspect door light assembly [67000107]
Inspect the conduction among terminals.
If the conduction does not accord with regularizations, replace
the switch.
(2) Supply battery voltage(10-14V) to terminal1 and terminal2, then inspect the conduction between
terminal 3 and terminal 5.
Standard: conduction
