Engine mechanism - Engine assembly
30. Disassemble left end front stabilizer link
assembly.
Fix bolts with hex socket wrench, and then remove nuts.
Hint: perform the same steps at another side.
31. Disassemble lower left control arm assembly.

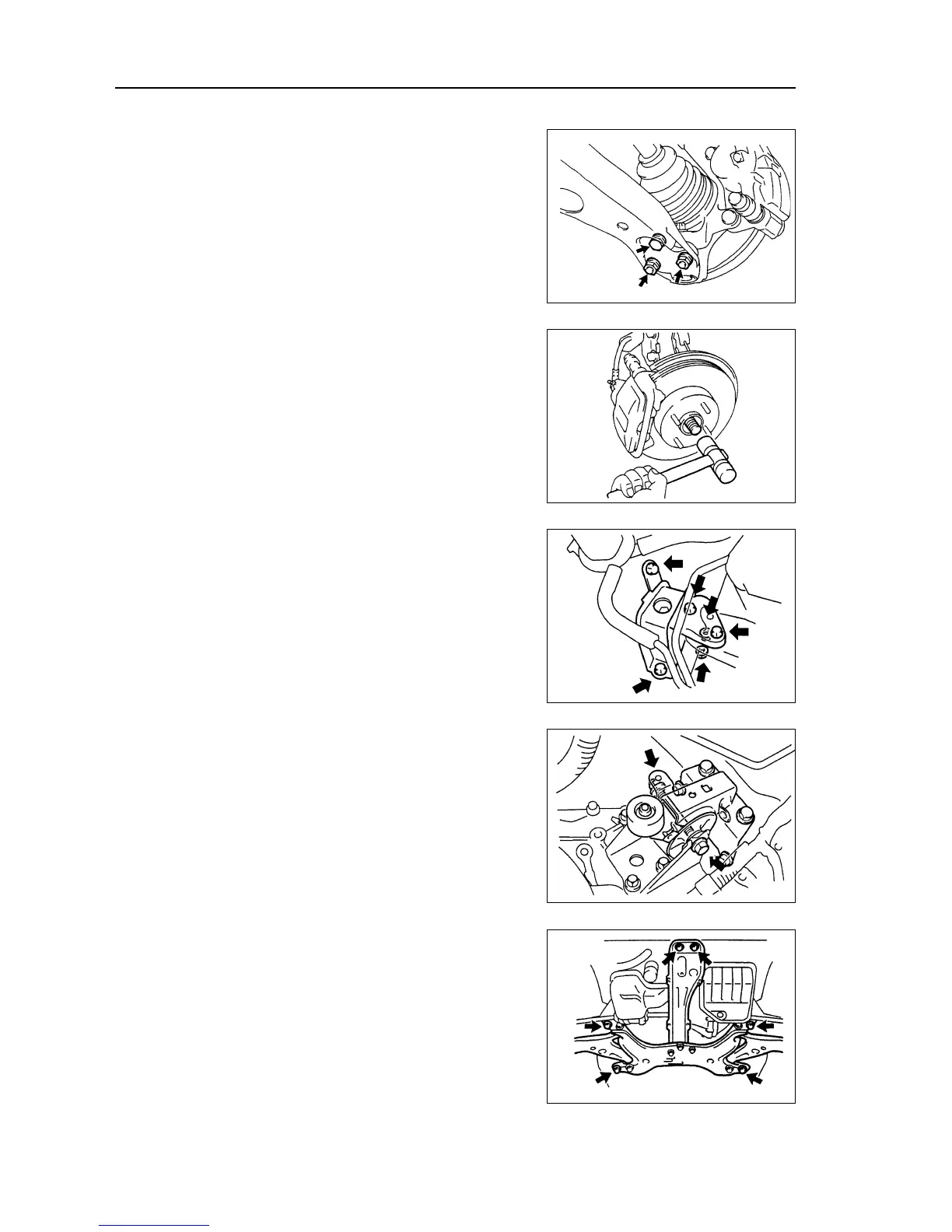

(a) As shown in the diagram, remove bolt and 2 nuts.
(b) Disassemble drive shaft from shaft hub with plastic
hammer.
Hint: perform the same steps at another side.
32. Remove oil return pipe assembly.
After removing 3 retaining clips and 2 bolts of power steer-
ing oil reservoir, remove the oil return pipe from vehicle.
33. Remover engine assembly [4G18-1000000] and
transmission assembly.
(a) Erect engine hanger.
(b)Remove 4 bolts, 2 nuts and right engine mounting
assembly.
(c) Remove through bolt and nut, and then remove left
engine mounting assembly from vehicle.
(d) As shown in the diagram, remove 6 bolts.
(e)Carefully remove engine assembly and transmission
assembly from vehicle.
38
