Engine mechanism - Engine assembly

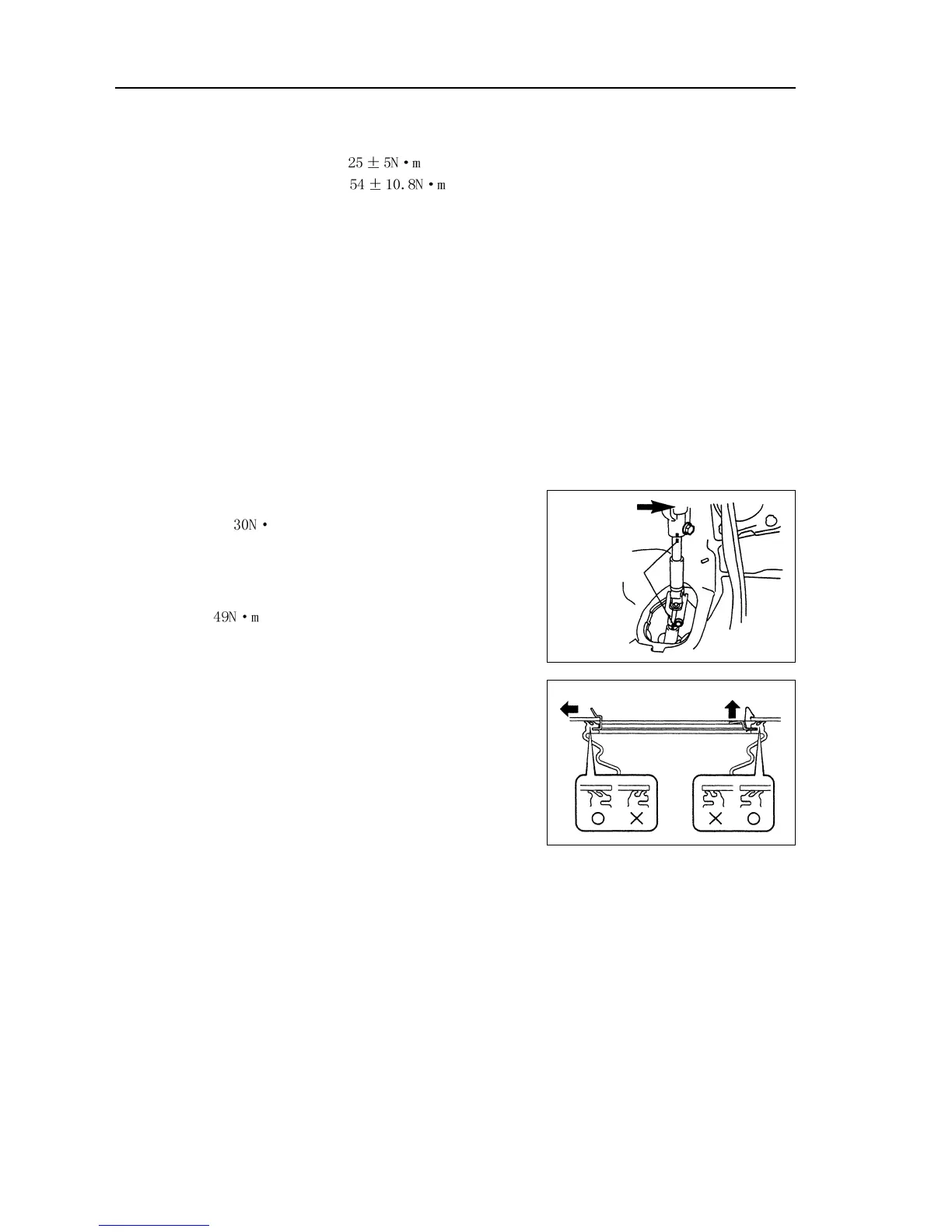

85. Install alternator mounting components.
Torque: 12mm bolt head A:
14mm bolt head B:
86. Install drive belt.
87. Install engine wire harness and all hoses
not connected.
(a) Check and connect all joints of engine wire harness.
(b) Check and connect all hoses.
88. Install transmission control pull cable assembly
and valve control pull cable.
89. Install air filter assembly and its hose.
90. Install steering middle shaft assembly.
(a) Align alignment mark on steering middle shaft.
(b) Install 2 bolts.
Torque: m
(c) Install steering column cover.
91. Install front exhaust pipe assembly.
92. Install front chassis bracket.
Torque:
93. Install battery and connect wire.
94. Install engine plastic hood components.
95. Install front wheel and engine bottom shield.
96. Refill transmission lubricant.
97. Refill engine oil.
98. Refill coolant.
99. Check there is oil leakage.
100. Check there is coolant leakage.
101. Check idle speed and ignition timing.
102. Check CO/HC.
Alignment
mark
Sliding in
Pulling
44
