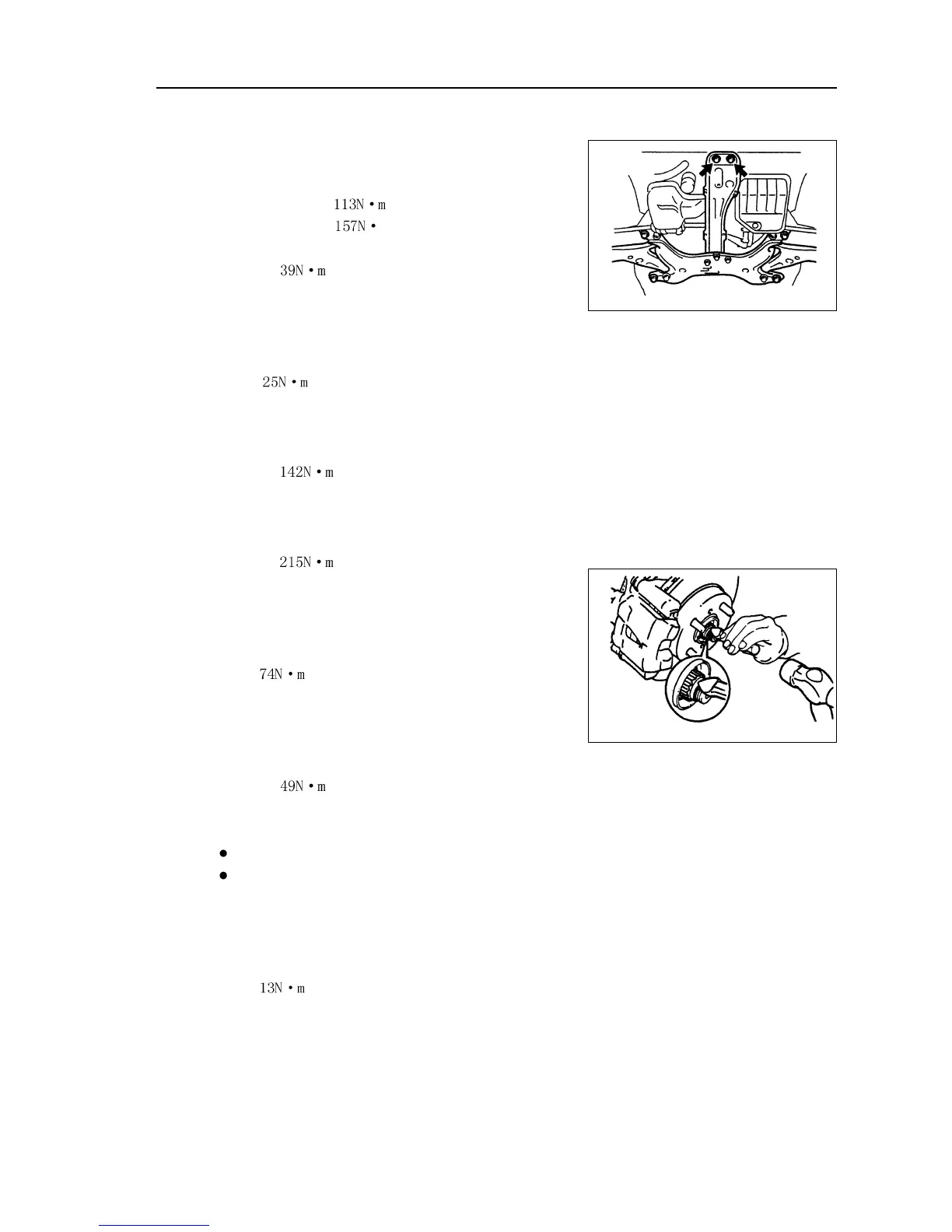

(k) Insert special tool into location hole on left side of sub
frame and vehicle, and then tighten bolts up to speci-
fied torque.
Torque: bolt A:
Bolt B: m
(l) As shown in the diagram, tighten 2 bolts.
Torque:
Note: after installing sub frame, check the sub
frame is aligned with location hole on
vehicle.
78. Install compressor.
Torque:
79. Install lower left control arm assembly.
(a) Install drive shaft to steering knucle.
(b) Install lower left control arm.
Torque:
Hint: perform the same steps at another side.
80. Install front left shaft hub nut.
(a) Install fixed nut with socket wrench (39mm).
Torque:
(b) Drive the cutout part of hub nut into groove with chisel.
Hint: perform the same steps at another side.
81. Install left end front stabilizer link assembly.
Fix bolts with hex socket wrench.
Torque:
Hint: perform the same steps at another side.
82. Install left side transversal lever assembly.
(a) Connect transversal lever assembly to steering knucle
and install new nuts.
Torque:
Note:
Do not coat lubricant on thread and conical surface.
After tightening nuts up to specified torque, con-
tinue turning nuts for 60¡ãand insert open pin.
(b) Insert new open pin.
83. Connect fuel hose assembly.
84. Install battery tray.
Torque:
Engine mechanism - Engine assembly
43
