Engine mechanism - Engine assembly

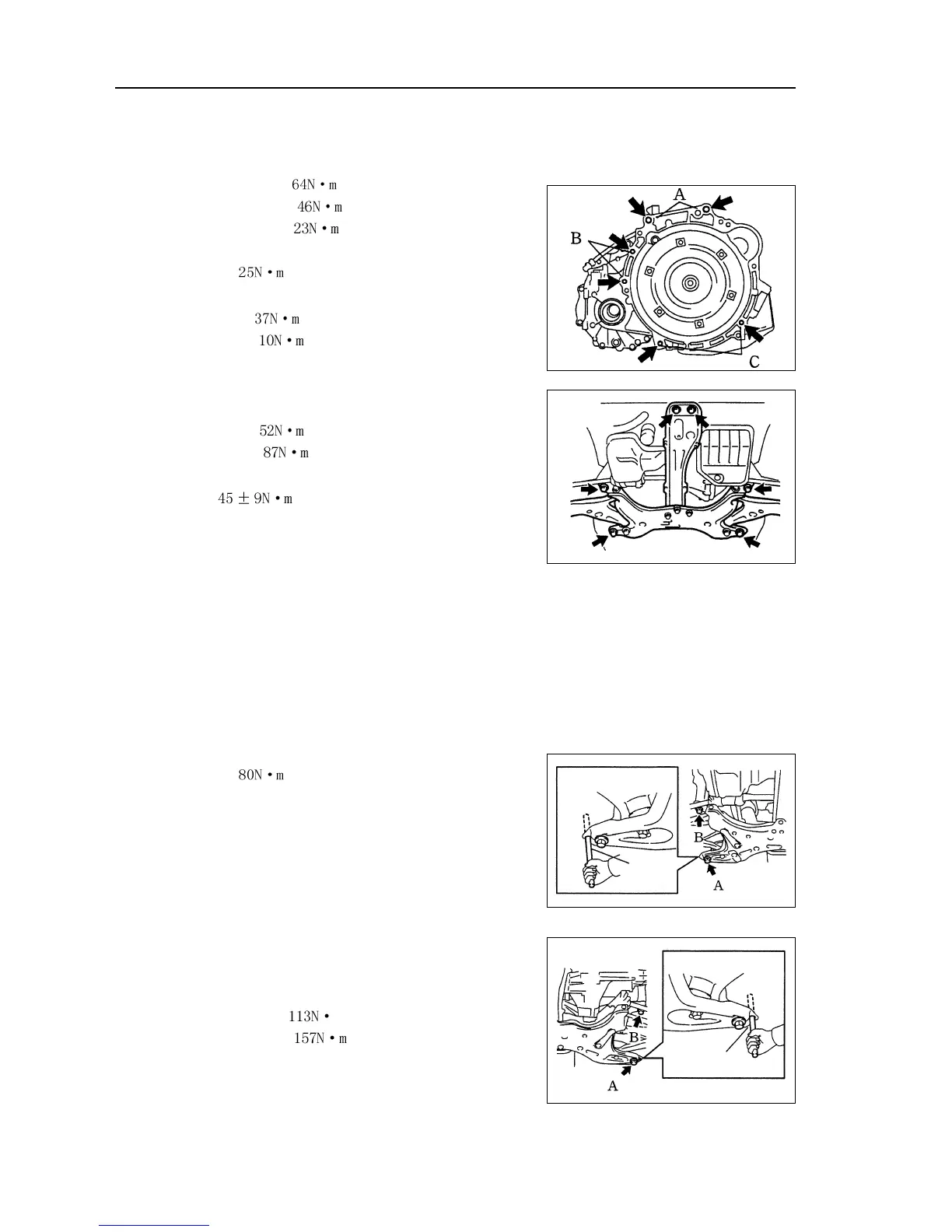

73. Install transmission assembly.
(a) Install transmission assembly.
Torque: bolt A:
Bolt B:
Bolt C:
(b) Install 6 bolts.
Torque:
74. nstall starter mounting components.
Torque: bolt:
Nut:
75. Install sub frame together with side member.
Install front mounting assembly and rear mounting
assembly.
Torque: front:
Rear:
76. Install power steering pump assembly.
Torque:
77. Install engine assembly together with
transmission assembly.
(a)Erect engine together with transmission assembly on
engine crane.
(b) Install engine assembly to vehicle.
(c) Temporarily install side member and 6 bolts.
(d) Install left engine mounting assembly.
Torque:
(e) Install right engine mounting assembly.
(f) Insert special tool into location hole on right side of sub
frame and vehicle.
(g) Temporarily lock bolt A at first, and then lock bolt B.
(h) Insert special tool into location hole on left side of sub
frame and vehicle.
(i) Temporarily lock bolt A at first, and then lock bolt B.
(j) Insert special tool into location hole on right side of sub
frame and vehicle, and then tighten bolts up to speci-
fied torque.
Torque: bolt A: m
Bolt B:
Special
tool
Special tool
42
