Engine mechanism - Engine assembly

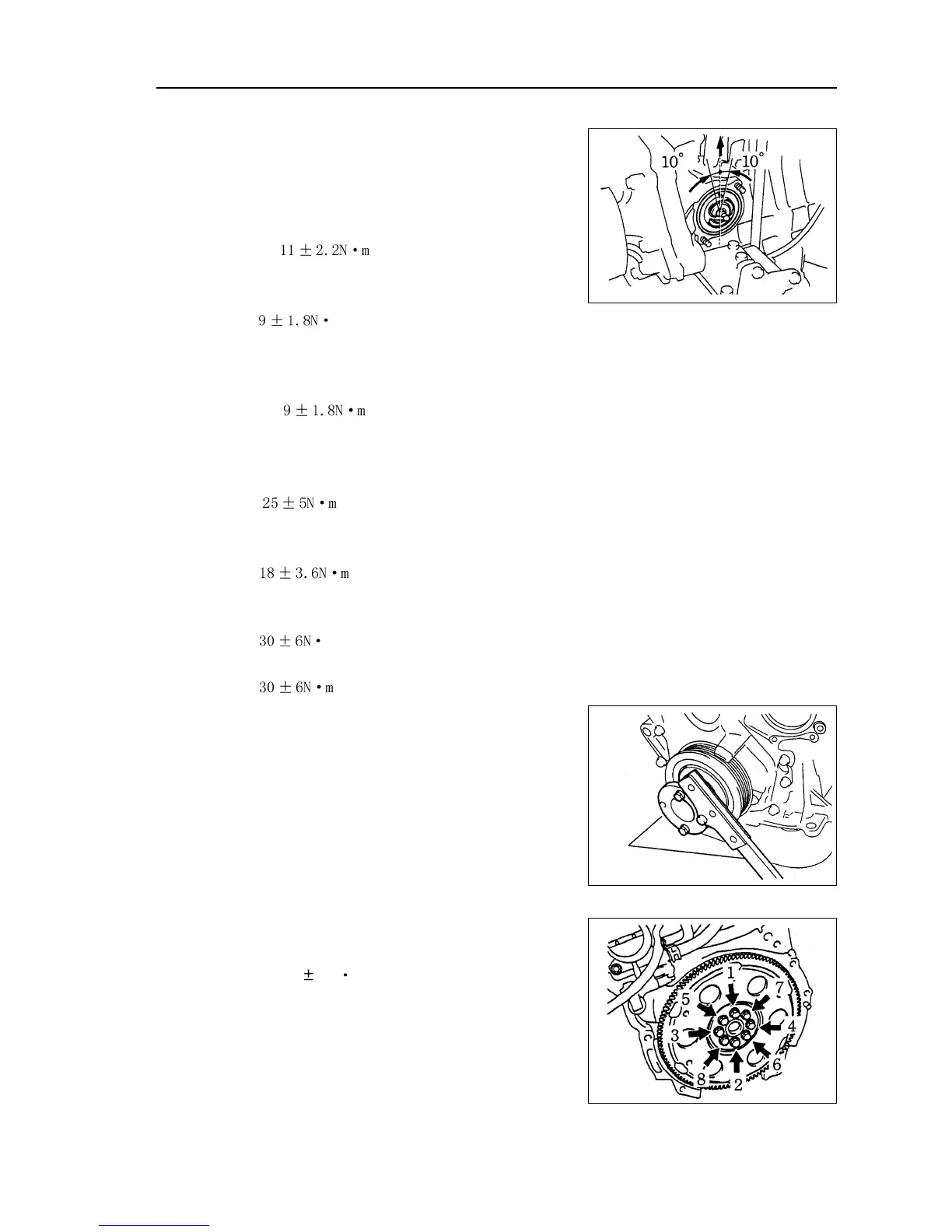

64. Install temperature regulator assembly.
(a) Check temperature regulator assembly o-ring.
(b) Install temperature regulator assembly as shown in the
diagram.
(c) Install engine water inlet pipe joint components.
Torque:
65. Install oil level gauge tube components.
66. Install ignition coil mounting components.
Torque: m
67. Install fuel rail injector assembly.
(a) Install isolator on cylinder head.
(b) Install fuel rail injector assembly.
Torque:
(c) Install fuel pipe retaining clip.
68. Install exhaust manifold gasket and exhaust
manifold assembly.
Torque:
69. Install exhaust manifold upper heat shield
components.
Torque:
70. Install intake manifold assembly.
Install new gasket and intake manifold assembly.
Torque: m
71. Install throttle supporting plate.
Torque:
72. Install flywheel components and clutch assembly.
(a) Fix crankshaft with special tool.
(b) Clean bolts and bolt holes.
(c) Coat bolts with adhesive.
Adhesive: thread locking sealant 1234 (Kesaixin 1234).
(d) Install flywheel components.
As sequences shown in the diagram, tighten bolts at
several times.
Torque: 88 5N m
(e) Install clutch assembly.
Special
tool
41
