Engine mechanism - Timing chain assembly

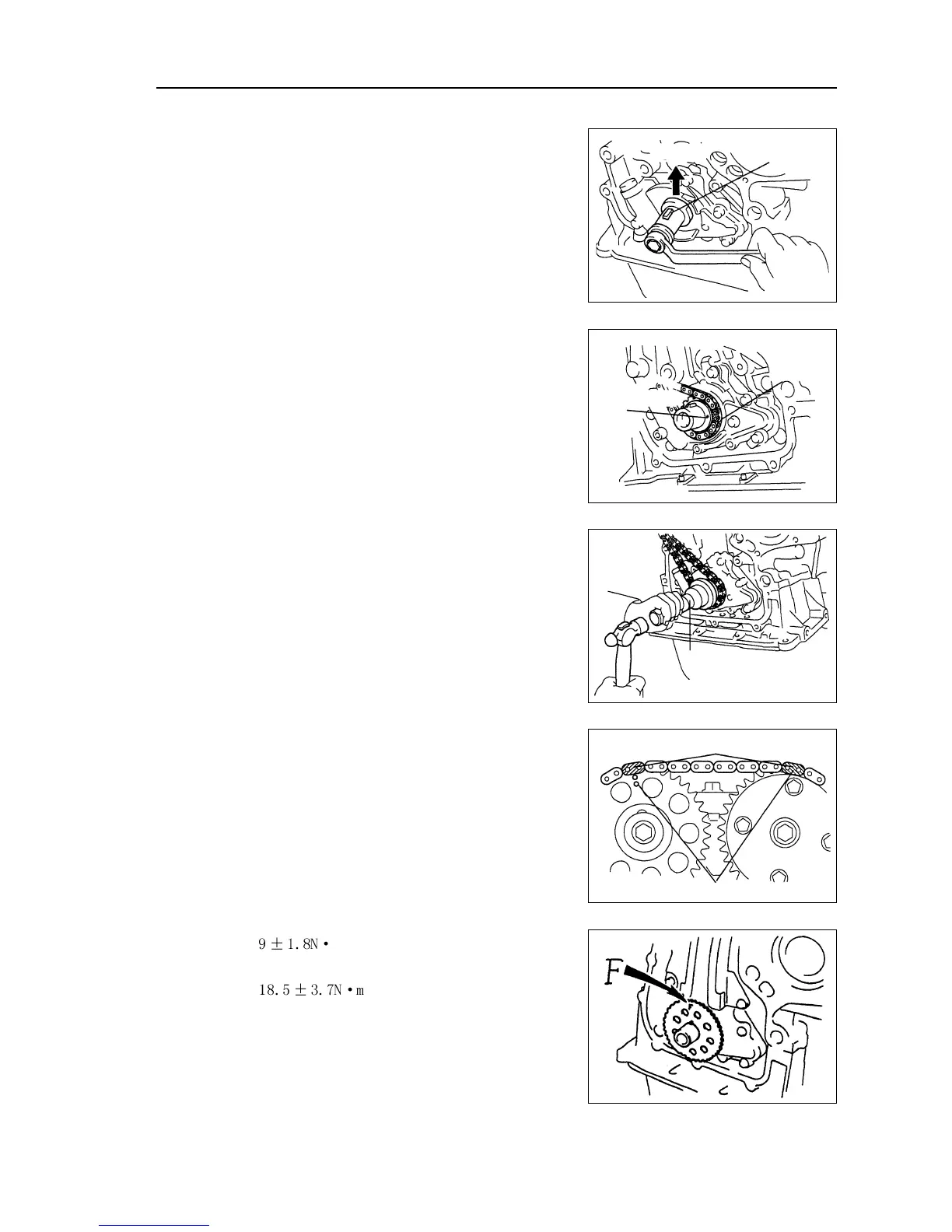

(2) Use damping pulley bolts to turn crankshaft with its key
toward upward.
(b) Install timing chain on crankshaft timing sprocket and
align the chain link having yellow mark with timing mark
of crankshaft timing sprocket.
Hint: there are 3 yellow chain links on the timing chain.
(c) Install crankshaft timing sprocket with special tool.
(d) Install timing chain on camshaft timing sprocket and
align the chain link having yellow mark with camshaft
timing sprocket.
27. Install chain guide rail components.
Torque: m
28. Install chain tension rail components.
Torque:
29. Install speed sensor signal panel.
Install signal panel with “F” mark toward forward.
Toward port
Set key
Yellow
mark
Timing mark
Special tool
Color (yellow) mark
Timing mark
47
