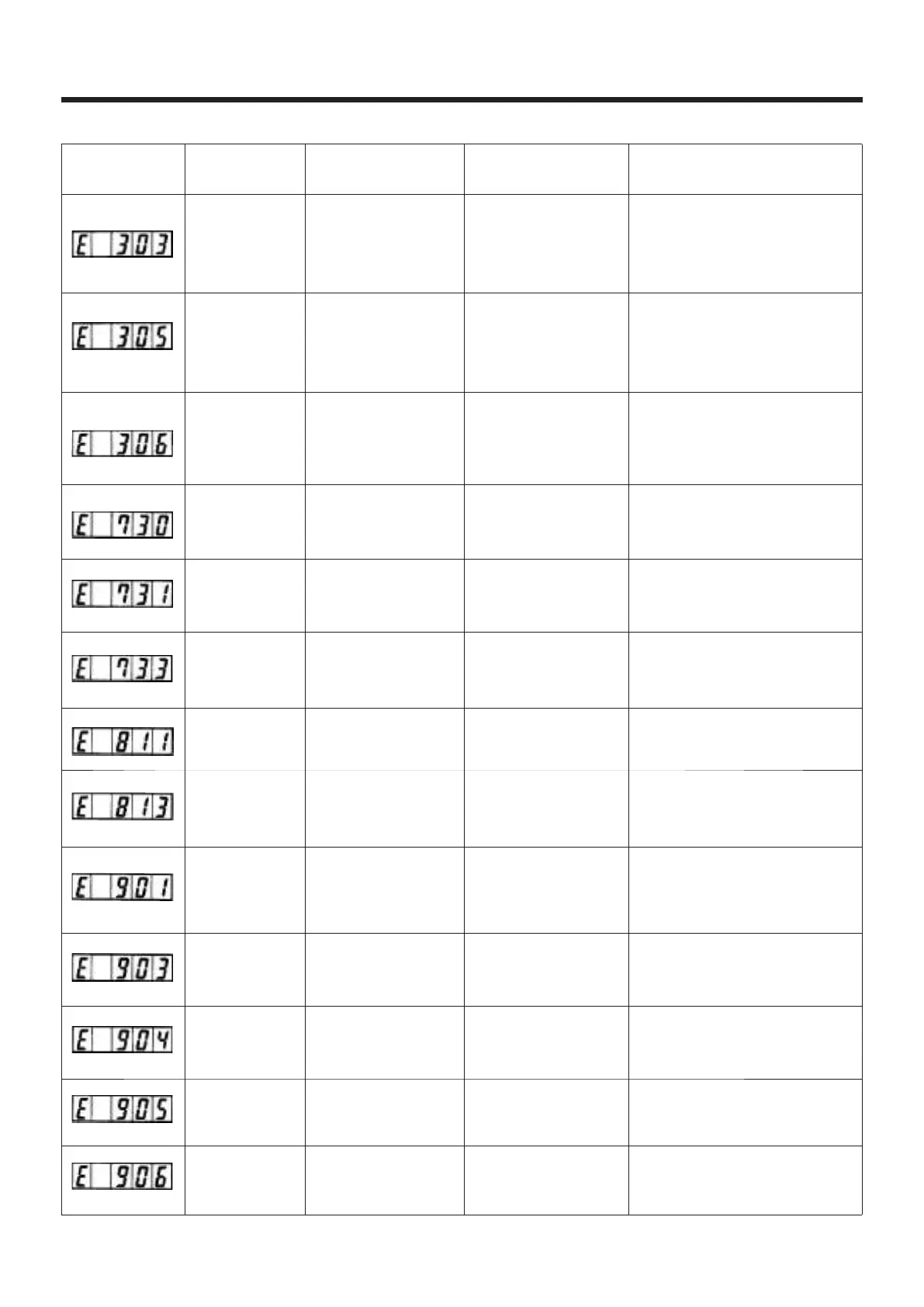

显示
indication
异常 内容
description of error
解除 方法
corrective measure
备考
remarks
异常 名称
name of error
脉冲马达电源异常
Stepping motor power
source trouble
脉冲马达的电源不输出。
Power source of the stepping
motor is not output.
马达驱动器不良
Motor driver trouble
马达驱动器检测出异常。
Error from the motor
driver isdetected.
电压过低异常
Low voltage error
电源电压不足。
Power source voltage
is short.
电压过高异常
Over voltage error
电源电压超过规定值。
Power source voltage is
beyond the specified value.
马达倒转
Reverse rotation of
motor
马达倒转。
The motor is reversing.
换线器不良B
Encoder trouble B
变换器U、V、W相不能检测。
Encoder U, V or W phase
cannot be detected.
换线器不良A
Encoder trouble A
变换器A、B不能检测。
Encoder A or B phase
cannot be detected.
关闭(0FF)电源，确认CN14是否
松动、脱落。
Tum OFF the power switch and
check whether CN14 is loose or
disconnected.
关闭(OFF)电源开关，确认主马
达的杯环是否松动。
Turn OFF the power switch and
check whether coupling of the
main motor is loose.
确认电源电压。
Check the power source voltage.
确认电源电压。
Check the power source voltage.
关闭(OFF)电源，稍待一些时间
后再次打开(ON)电源。
Tum OFF the power switch and
turn ON the power switch again
after some time.
关闭(OFF)电源，确认SDC电路板
F1保险丝。
Turn OFF the power switch and
check F1 fuse of SDC circuit
board.
关闭(0FF)电源，确认CN14是否
松动、脱落。
Tum OFF the power switch and
check whether CN14 is loose or
disconnected.
检查断保险丝的原因。
Check the cause of blown-out of the fuse.
使用说明书 Operation Instruction
抓线位置异常
Needle thread
clamp position error
抓线装置不在正规位置。
The needle thread clamp
device is not in the proper
Position.
切线刀不在正确位置。
The thread trimmer is not
in the proper position.
切线切刀位置异常
Thread trimmer
position error
不能检测缝纫机的上死点。
Detection of the upper dead
point of the sewing Machine
cannot be performed.
Z相检测异常
Z phase detection
error
关闭(OFF)电源开关，拔掉
SDC电路板CN14，确认是
否松动脱落。
Turn OFF the power switch
and cheke whether Cn14 of
SDC circuit board is discon-
nected or loose.
关闭( OFF)电 源开 关，确 认
FL T电路板CN 65是 否松动 、
脱落 。
Turn OFF the power switch
and cheke whether Cn66 of
SDC circuit board is discon-
nected or loose.
关闭(OFF)电源开关，拔掉
SDC电路板CN66，确认是
否松动脱落。
Turn OFF the power switch
and cheke whether Cn66 of
SDC circuit board is discon-
nected or loose.
续电器电源异常
Solenoid power
source trouble
续电器的电源不输出。
Power source of the
solenoid is not output.
关闭(OFF)电源，确认SDC电路板
F2保险丝。
Turn OFF the power switch and
check F2 fuse of SDC circuit
board.
SDC电路板过热
SDC circuit board
overheat
SDC电路板过热。
Overheat of SDC
circuit board
关闭(0FF)电源，稍待一些时间
后再次打开(0N)电源。
Turn OFF the power switch and
turn ON the power switch again
after some time.
MAIN电路板过热
MAIN circuit board
overheat
MAIN电路板过热。
Overheat of MAIN
circuit board
关闭(OFF)电源，稍待一些时间
后再次打开(ON)电源。
Tum OFF the power switch and
turn ON the power switch again
after some time.
检查断保险丝的原因。
Check the cause of blown-out of the fuse.
