Gemsy GEM1900A - Page 68

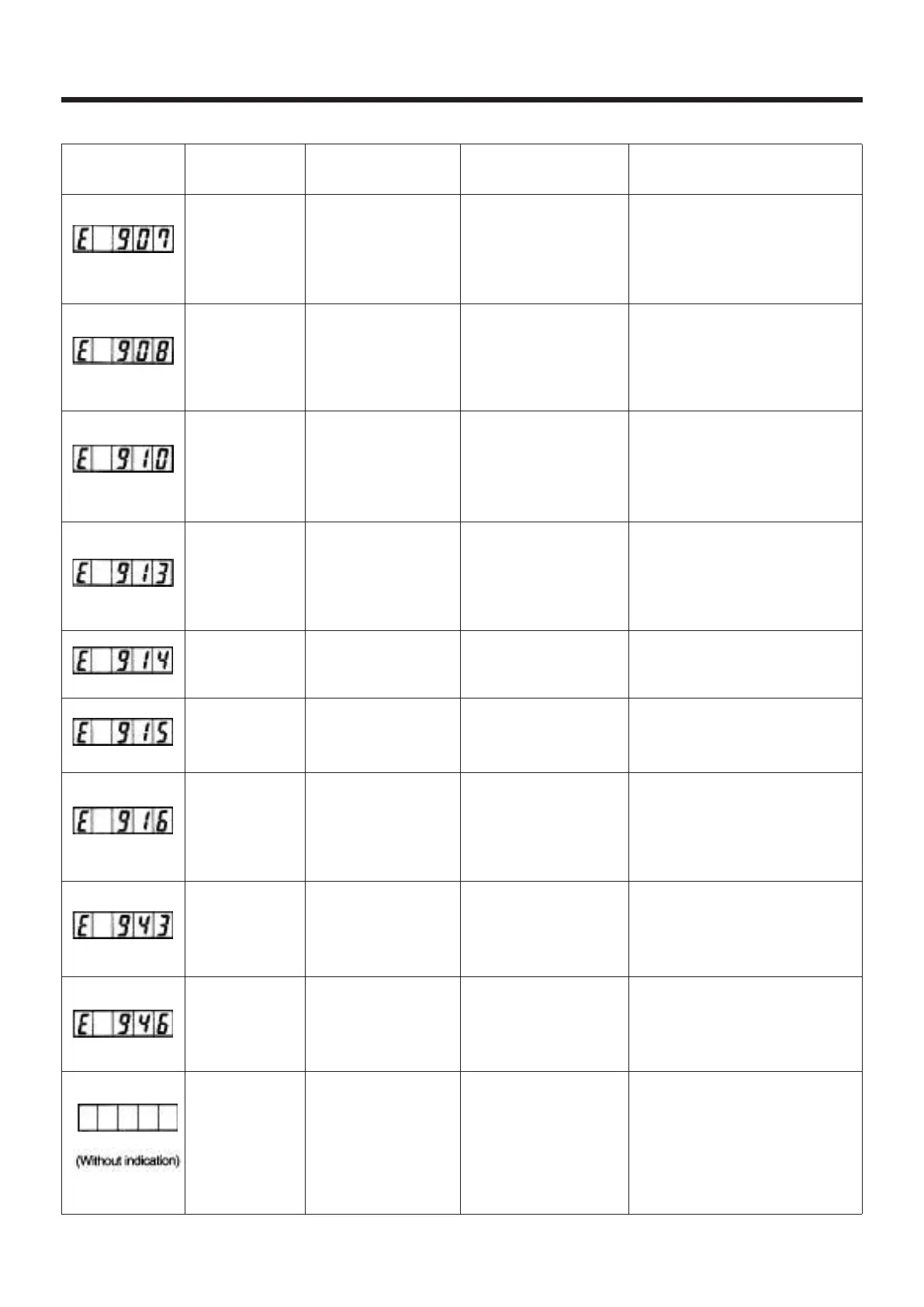

显示
indication
异常 内容
description of error
解除 方法
corrective measure
备考
remarks
异常 名称
name of error
使用说明书 Operation Instruction
X原点检索异常X
origin retrieval error
Y原点检索异常Y
origin retrieval error
压脚原点检索异常
Work clamp foot origin
retrieval error
抓线原点检索异常
Needle thread clamp
origin retrieval error
X原点传感器不变化。
X origin sensor
does not change.
Y原点传感器不变化。
Y origin sensor
does not change.
压脚原点传感器不变化。
Work clamp foot origin
sensor does not change.
抓线原点传感器不变化。
Needle thread clamp origin
sensor does not chanqe.
关闭(OFF)电源开关，确认INT电
路板CN62、MAIN电路板CN42是否
松动、脱落。
Tum OFF the power switch and
check whether CN62 of INT
circuit board or CN42 0f MAIN
circuit board is disconnected
or loose.
关闭(OFF)电源开关，确认INT电
路板CN63、MAIN电路板CN43是否
松动、脱落。
Tum OFF the power switch and
check whether CN63 of INT
circuit board or CN43 0f MAIN
circuit board is disconnected
or loose.
关闭(0FF)电源开关，确认INT电
路板CN64、MAIN电路板CN44是否
松动、脱落。
Tum OFF the power switch and
check whether CN64 of INT
circuit board or CN44 0f MAIN
circuit board is disconnected
or loose.
关闭(OFF)电源开关，确认INT电
路板CN65、MAIN电路板CN45是否
松动、脱落。
Tum OFF the power switch and
check whether CN65 of INT
circuit board or CN45 0f MAIN
circuit board is disconnected
or loose.
传送不良异常
Feed trouble error
操作盘-MAIN电路板
通信异常
Communication error
between panel and
MAIN
MAIN电路板-SDC电路
板通信异常
Communication error
between panel and
SDC
MAIN存储器写入不良
MAIN memory write-in
trouble
INT存储器写入不良
INT memory write-in
trouble
电源异常，插头脱落
Abnormal power so-
urce Disconnection
of connector
送布和主轴不同步。
Timing lag between
feed and main shaft
has occurred.
操作盘-MAIN电路板不能通信。
Communication between the
panel and MAIN cannol be
performed.
MAIN电路板-SDC电路板不能
通信。
Communication between
MAIN and SDC cannot be
performed.
MAIN电路板不能写入。
Memory write-in of MAIN
circuit board cannot be
performed.
机头电路板存储器不能写入。
Memory write-in of the head
circuit board cannot be perf-
ormed.
电源电压规格不封。插头脱落。
Power source voltage type is
different. The connector is
disconnected.
关闭(OFF)电源开关，确认主马
达的杯环是否松动。
Turn OFF the power switch
and check whether coupling
of the main motor is loose.
关闭(OFF)电源开关，确认
MAIN电路板CN34是否松动。
Tum OFF the power switch
and check whether CN34 of
MAIN circuit board is loose.
关闭(OFF)电源开关，确认
MAIN电路板CN32、SDC电
路板CN15是否松动、脱落。
Tum OFF the power switch
and check whether CN32 of
MAIN circuit board or CN15
of SDC circuit board is disc-
onnected or loose.
关闭(OFF)电源开关，确认
MAIN电路板U22的ROM是
否松动。
Turn OFF the power switch
and check the insertion of
ROM of U22 0f MAIN circuit
board.
关闭(OFF)电源开关，确认
MAIN电路板CN38是否松动、
脱落。
Tum OFF the power switch
and check whether CN38 of
MAIN circuit board is disco-
nnected or loose.
关闭(OFF)电源开关，确认电
源电压和INT电路板CN3、
SDC电路板CN13是否松动、
脱落。
Turn OFF the power switch
and check the power source
voltage and check whether
CN3 0f FLT circuil board or
CN13 0f SDC circuit board is
disconnected or loose.
(无显 示)
58
